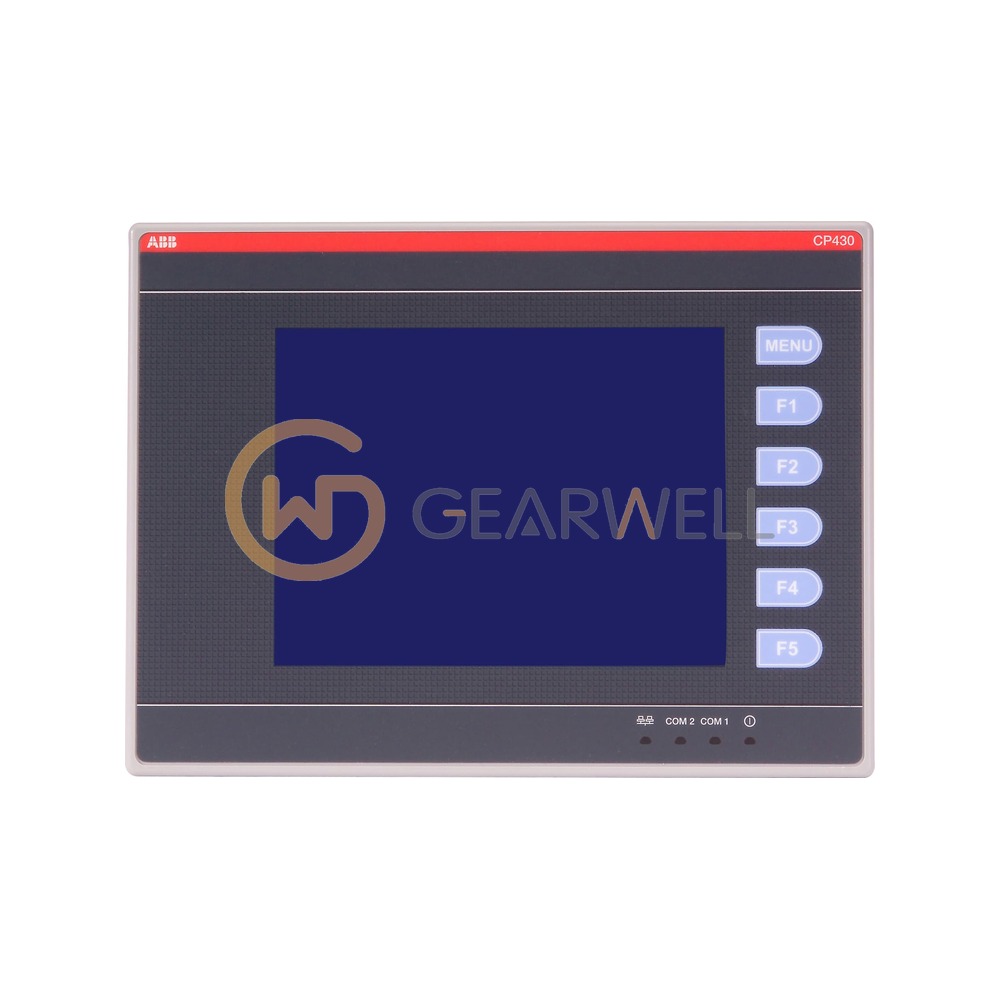

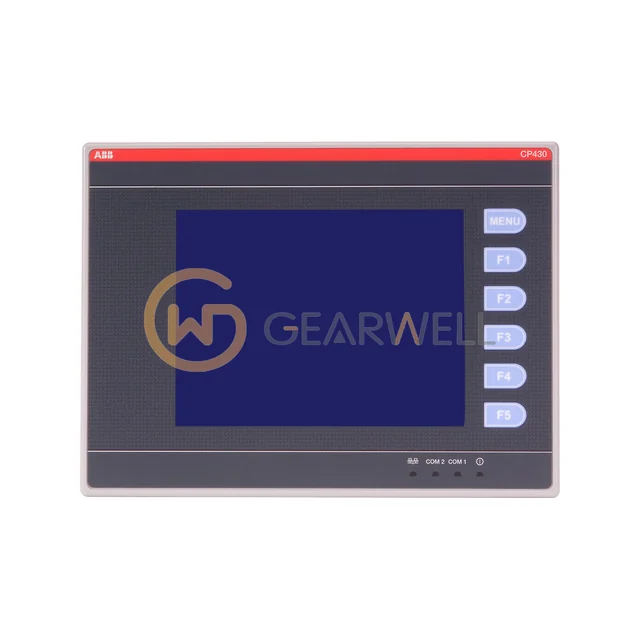

ABB CP430T-ETH 5.7" TFT touchscreen control panel with Ethernet
- Brand
- ABB
- Model
- CP430T-ETH
- GEARWELL SKU
- GWP-000014871
- Category
- HMIs & Industrial PCs
Key specifications
- Display
- 5.7" TFT colour, resistive touch
- Resolution
- 320 x 240 pixel
- Serial ports
- RS232/RS485; RS232/RS422/RS485
- Function keys
- 5
- Supply voltage
- 20.4 ... 27.6 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CP430T-ETH is a CP400 series operator panel (order code 1SBP 260 196 R1001) with a 5.7" touch screen, 64000 colors TFT, 320 x 240 pixels and Ethernet; weight is 0.810 kg. The CP400 range has a 32 bit RISC CPU, real time clock, macro and ladder functions, 24 V DC ± 15% supply, IP65 class protection and UL certification.
Technical reference
| Product name | ABB CP430T-ETH 5.7" TFT touchscreen control panel with Ethernet |
|---|---|
| Brand | ABB |
| Model | CP430T-ETH |
| Category | HMIs & Industrial PCs |
| Display | 5.7" TFT colour, resistive touch |
| Resolution | 320 x 240 pixel |
| Serial ports | RS232/RS485; RS232/RS422/RS485 |
| Function keys | 5 |
| Supply voltage | 20.4 ... 27.6 V DC |
| User program memory | 4 MB ROM |
| Dimensions (W x H x D) | 195 x 145 x 60 mm |
| Operating temperature | 0 ... +50 °C |
