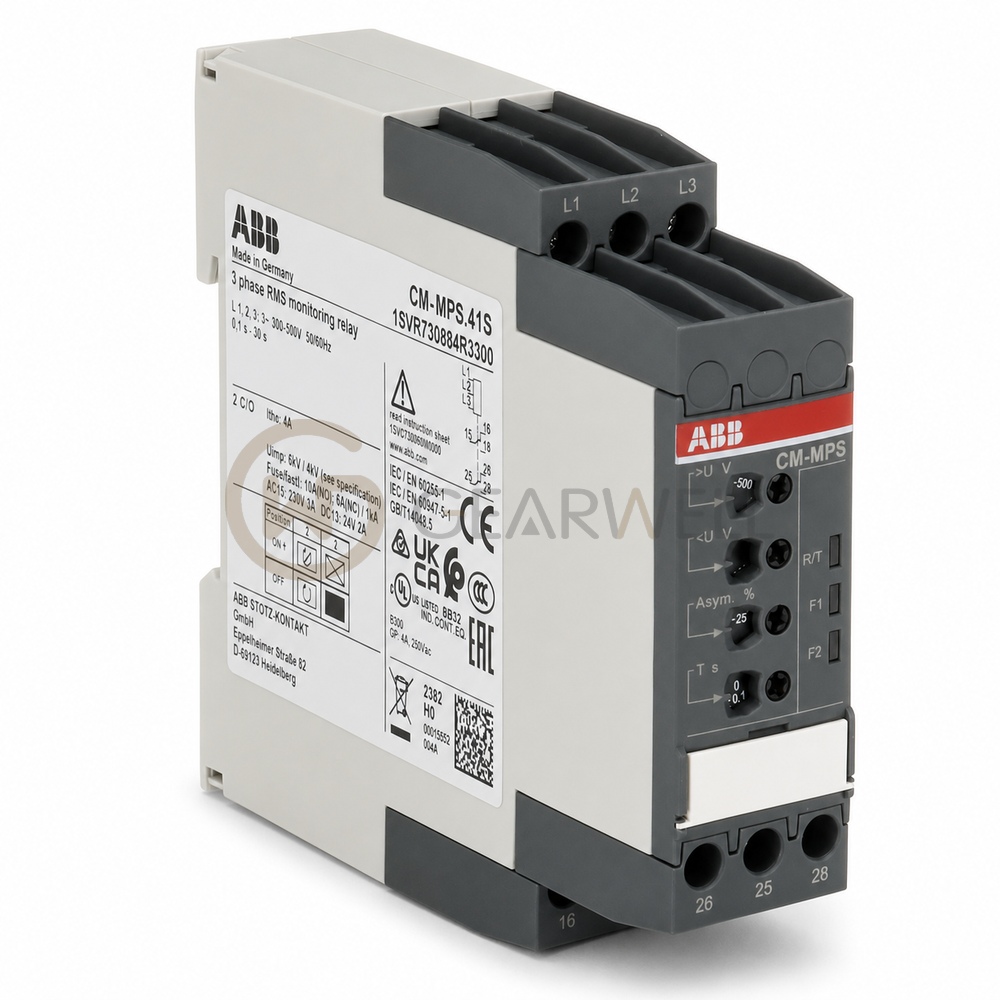

ABB CM-MPS.41S Relay
- Brand
- ABB
- Model
- CM-MPS.41S
- GEARWELL SKU
- GWP-000000949
- Category
- Industrial Automation Parts
Key specifications
- Rated frequency
- 50/60 Hz
- Order code
- 1SVR730884R3300
- Product type
- Multifunctional three-phase monitoring relay
- Rated control supply voltage
- 300 to 500 V AC phase-to-phase
- Terminal type
- Screw terminals
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CM-MPS.41S is the CM-MPS.41S multifunctional three-phase monitoring relay (order code 1SVR730884R3300) with screw terminals, for 3 x 300-500 V AC mains; the rated control supply voltage equals the measuring voltage. It monitors phase sequence (can be switched off), phase failure, over- and undervoltage and phase unbalance, with adjustable tripping delay (0 s; 0.1-30 s), 2 c/o (SPDT) contacts rated 4 A AC-12 at 230 V, 3 LEDs and a width of 22.5 mm.
Technical reference
| Product name | ABB CM-MPS.41S Relay |
|---|---|
| Brand | ABB |
| Model | CM-MPS.41S |
| Category | Industrial Automation Parts |
| Rated frequency | 50/60 Hz |
| Order code | 1SVR730884R3300 |
| Product type | Multifunctional three-phase monitoring relay |
| Rated control supply voltage | 300 to 500 V AC phase-to-phase |
| Terminal type | Screw terminals |
| Monitoring functions | Over/undervoltage, phase failure, phase unbalance and phase sequence |
