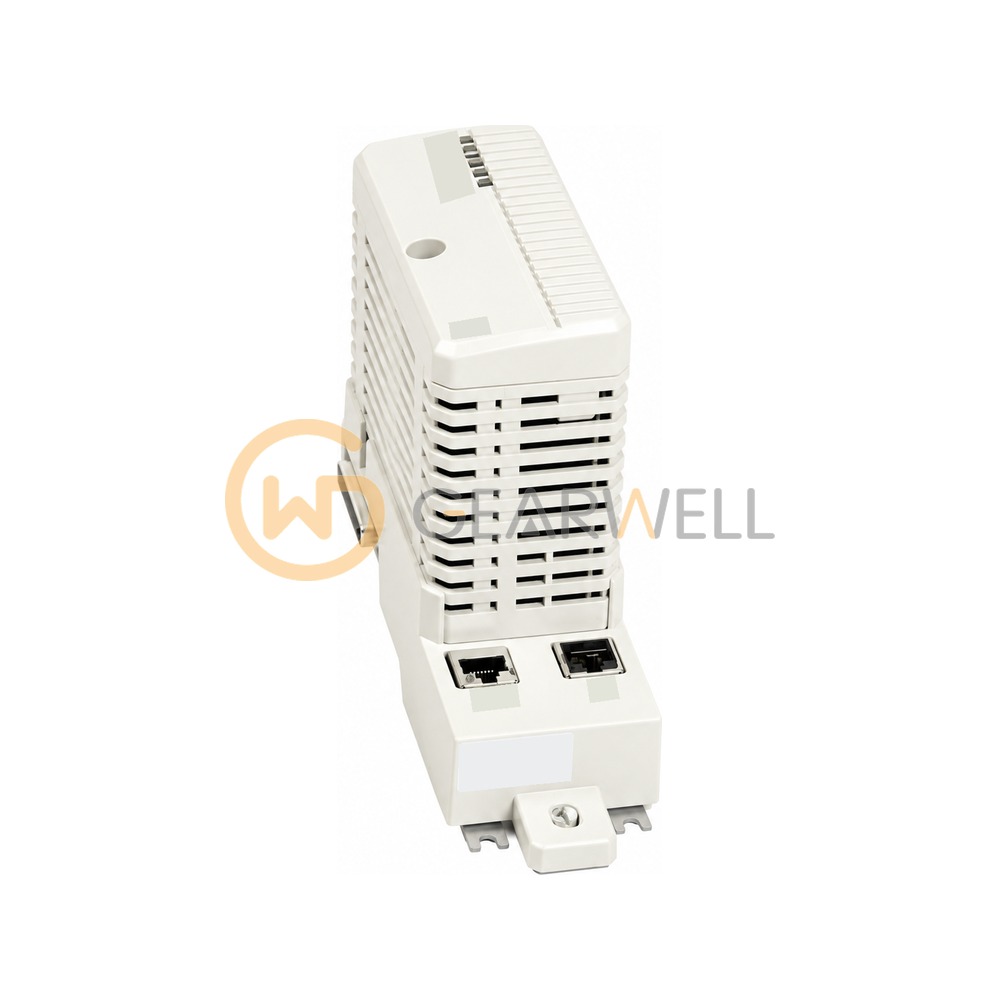

ABB CI868K01 AC 800M IEC 61850 Communication Interface
- Brand
- ABB
- Model
- CI868K01
- GEARWELL SKU
- GWP-000012839
- Category
- Industrial Communication
Key specifications
- RoHS
- EU Directive 2011/65/EU
- Protocol
- IEC 61850
- Net weight
- 0.7 kg
- Product ID
- 3BSE048845R1
- Package contents
- CI868 communication interface, TP867 baseplate
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CI868K01 is the IEC 61850 communication interface kit for AC 800M, ABB article 3BSE048845R1. The CI868 connects an AC 800M controller to IEC 61850 devices over Ethernet through an Ethernet switch, has an MPC862P processor at 96MHz with 32 MB SDRAM and 4 MB Flash PROM, and runs at 10/100 Mbit/s. Up to 4 can be fitted on the CEX bus; current consumption is typ 160 mA at 24 V.
Technical reference
| Product name | ABB CI868K01 AC 800M IEC 61850 Communication Interface |
|---|---|
| Brand | ABB |
| Model | CI868K01 |
| Category | Industrial Communication |
| RoHS | EU Directive 2011/65/EU |
| Protocol | IEC 61850 |
| Net weight | 0.7 kg |
| Product ID | 3BSE048845R1 |
| Package contents | CI868 communication interface, TP867 baseplate |
| Dimensions (H x W x D) | 186 x 59 x 127.5 mm |
