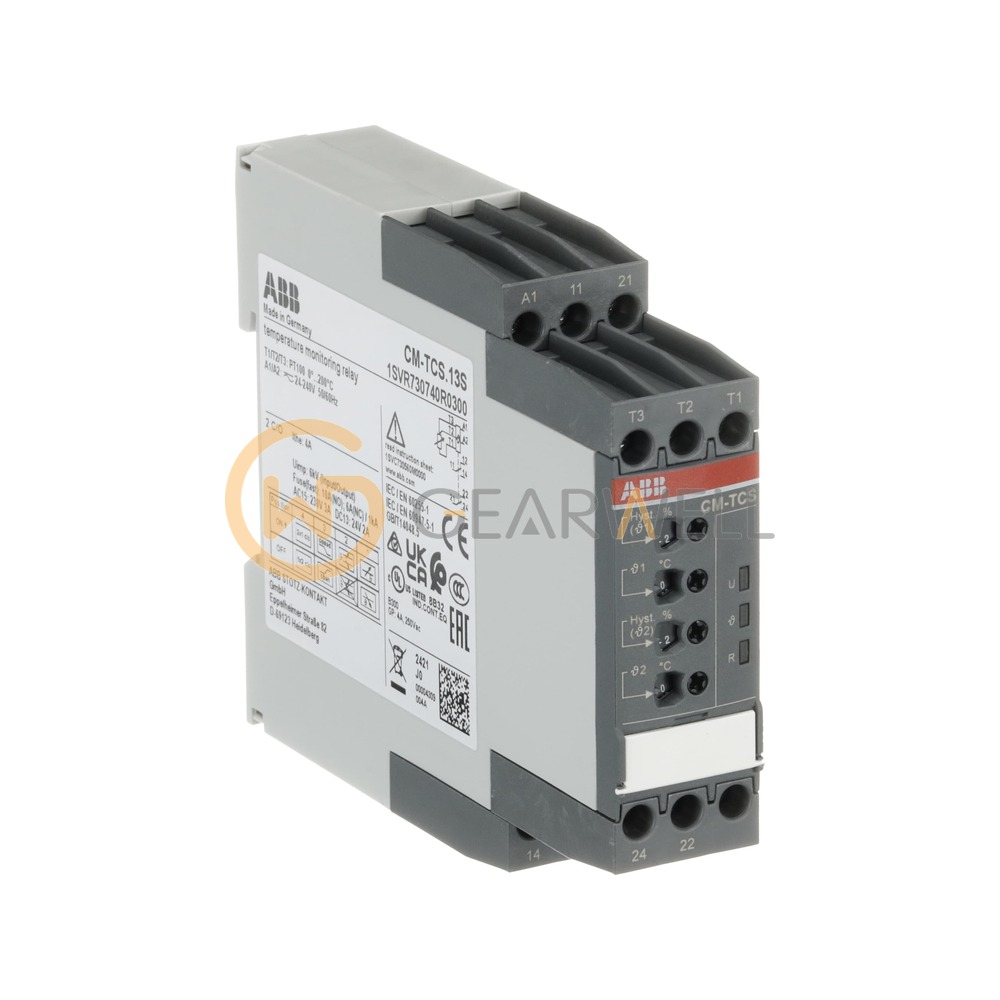

ABB CM-TCS.13S CM Range Temperature Monitoring Relay 0-200 °C
- Brand
- ABB
- Model
- CM-TCS.13S
- GEARWELL SKU
- GWP-000011172
- Category
- Pressure, Flow & Temperature
Key specifications
- Width
- 22.5 mm
- Output
- 2 x 1 c/o or 1 x 2 c/o, configurable
- Product ID
- 1SVR730740R0300
- Sensor type
- PT100
- Supply voltage
- 24 ... 240 V AC/DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CM-TCS.13S is the CM-TCS.13S temperature monitoring relay (order code 1SVR 730 740 R0300) with screw terminals, for a PT100 sensor (2- or 3-wire connection) and a measuring range of 0...+ 200 °C, with 24-240 V AC/DC control supply. Over-, undertemperature or window monitoring is configurable, hysteresis is 2-20 % adjustable, outputs are 1 x 2 c/o or 2 x 1 c/o (SPDT) rated 4 A AC-12 at 230 V, and the width is 22.5 mm.
Technical reference
| Product name | ABB CM-TCS.13S CM Range Temperature Monitoring Relay 0-200 °C |
|---|---|
| Brand | ABB |
| Model | CM-TCS.13S |
| Category | Pressure, Flow & Temperature |
| Width | 22.5 mm |
| Output | 2 x 1 c/o or 1 x 2 c/o, configurable |
| Product ID | 1SVR730740R0300 |
| Sensor type | PT100 |
| Supply voltage | 24 ... 240 V AC/DC |
| Measuring range | 0 ... 200 °C |
| Degree of protection | Housing IP50 / terminals IP20 |
