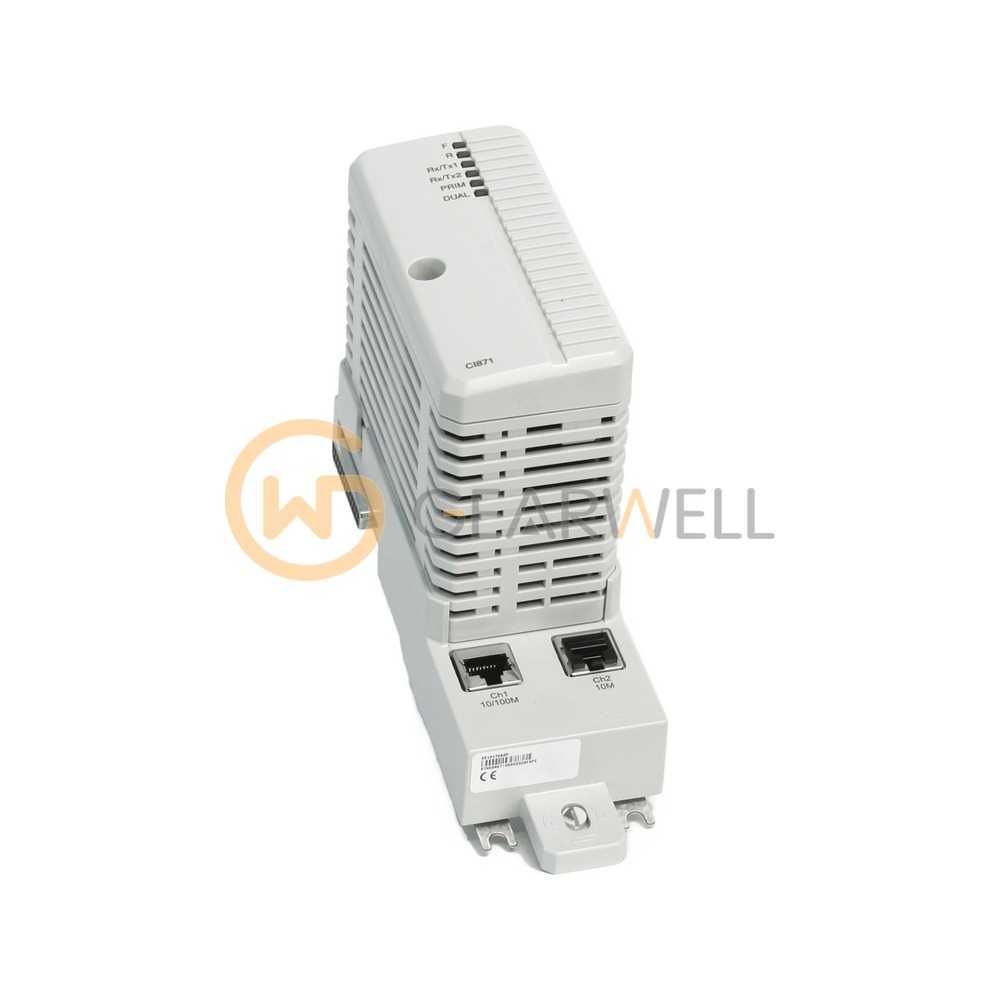

ABB CI871K01 AC 800M PROFINET IO interface kit (CI871 + TP867)
- Brand
- ABB
- Model
- CI871K01
- GEARWELL SKU
- GWP-000014447
- Category
- Industrial Communication
Key specifications
- Weight
- 500 (700 with package) g
- Protocol
- PROFINET IO
- Connectors
- RJ45
- Power dissipation
- 3.8 typical (6 max) W
- Dimensions (W x H x D)
- 59 x 185 x 127.5 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CI871K01 is a package of the CI871 PROFINET IO interface (article 3BSE056767R1) with its TP867 baseplate for the AC 800M CEX bus. It provides one 10/100 Mbps Ethernet port for PROFINET IO through an Ethernet switch, supports hot swap, and up to 12 can be fitted on the CEX bus. Current consumption is 160 mA typical (250 mA max) and the package weighs 700 g.
Technical reference
| Product name | ABB CI871K01 AC 800M PROFINET IO interface kit (CI871 + TP867) |
|---|---|
| Brand | ABB |
| Model | CI871K01 |
| Category | Industrial Communication |
| Weight | 500 (700 with package) g |
| Protocol | PROFINET IO |
| Connectors | RJ45 |
| Power dissipation | 3.8 typical (6 max) W |
| Dimensions (W x H x D) | 59 x 185 x 127.5 mm |
| Communication speed CH1 | 10/100 Mbit/s |
| Current consumption (CEX-Bus 24 V DC) | 160 typical (250 max) mA |
