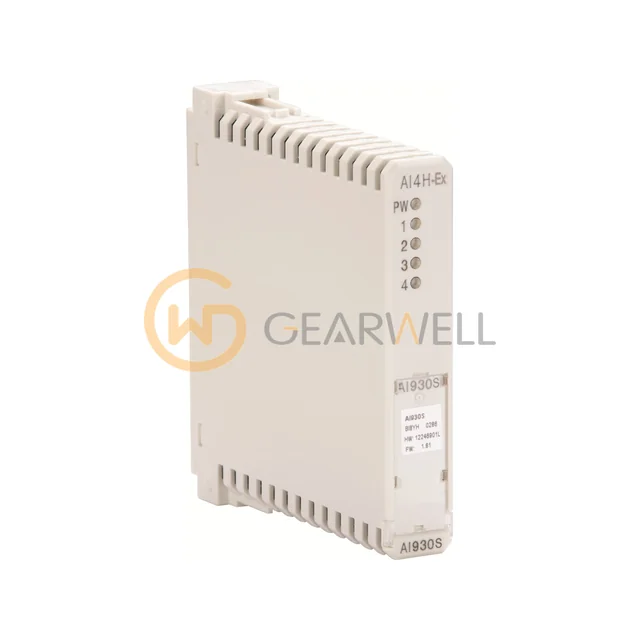

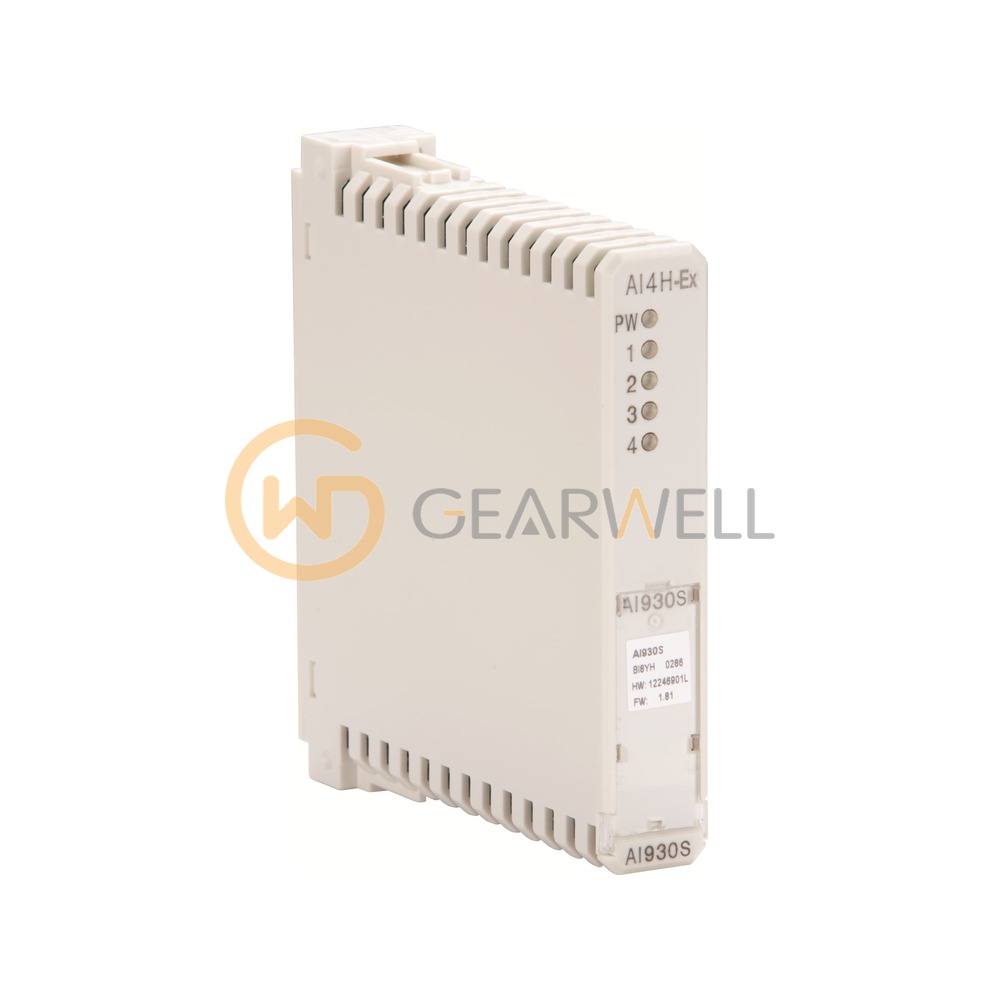

ABB AI930S Analog input module, 4 ch, HART, Ex (Zone 1)
- Brand
- ABB
- Model
- AI930S
- GEARWELL SKU
- GWP-000014526
- Category
- PLCs & I/O
Key specifications
- Input
- 4-20 mA loop-powered 2-wire transmitters, HART
- Fieldbus
- PROFIBUS DP (via S900 system)
- Net weight
- 0.14 kg
- Installation
- Zone 1 (ATEX), intrinsically safe field circuits
- Dimensions (L x W x H)
- 104 x 104 x 20 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB AI930S is the Freelance AI930S HART analog input module (AI4H-Ex, article no. 3KDE175511L9300) with 4 channels and transmitter power supply for 4...20 mA loop powered 2-wire transmitters, short and break detection, isolation between input / bus and input / power, a common return and transmission of HART frames via the fieldbus. The AI930B and AI930N are the other versions.
Technical reference
| Product name | ABB AI930S Analog input module, 4 ch, HART, Ex (Zone 1) |
|---|---|
| Brand | ABB |
| Model | AI930S |
| Category | PLCs & I/O |
| Input | 4-20 mA loop-powered 2-wire transmitters, HART |
| Fieldbus | PROFIBUS DP (via S900 system) |
| Net weight | 0.14 kg |
| Installation | Zone 1 (ATEX), intrinsically safe field circuits |
| Dimensions (L x W x H) | 104 x 104 x 20 mm |
| Number of input channels | 4 |
