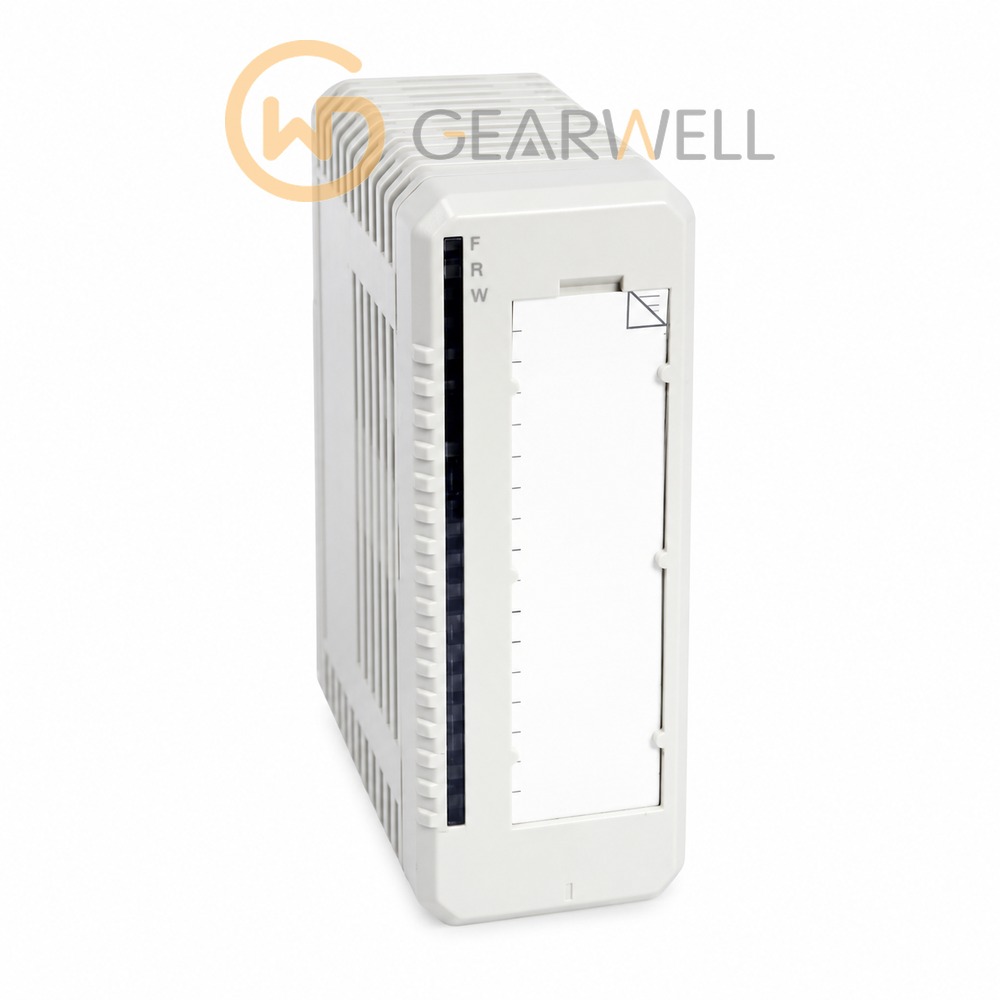

ABB AI845 S800 I/O Analog Input Module, 8-Channel, HART
- Brand
- ABB
- Model
- AI845
- GEARWELL SKU
- GWP-000006599
- Category
- PLCs & I/O
Key specifications
- HART
- Supported
- Channels
- 8
- Operation
- Single or redundant
- Signal ranges
- 0...20 mA, 4...20 mA, 0...5 V, 1...5 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB AI845 is an S800 I/O analog input module for redundant applications, with HART interface: 8 single-ended channels with common return, 0(4)-20 mA or 0(1)-5 V, 12 bits, with extended diagnostics and transmitter power supply. S800 I/O runs on 24 V d.c. (19.2 - 30 V), is rated IP20 and +5 to +55 °C operating, and takes up to 24 I/O modules per I/O station.
Technical reference
| Product name | ABB AI845 S800 I/O Analog Input Module, 8-Channel, HART |
|---|---|
| Brand | ABB |
| Model | AI845 |
| Category | PLCs & I/O |
| HART | Supported |
| Channels | 8 |
| Operation | Single or redundant |
| Signal ranges | 0...20 mA, 4...20 mA, 0...5 V, 1...5 V DC |
