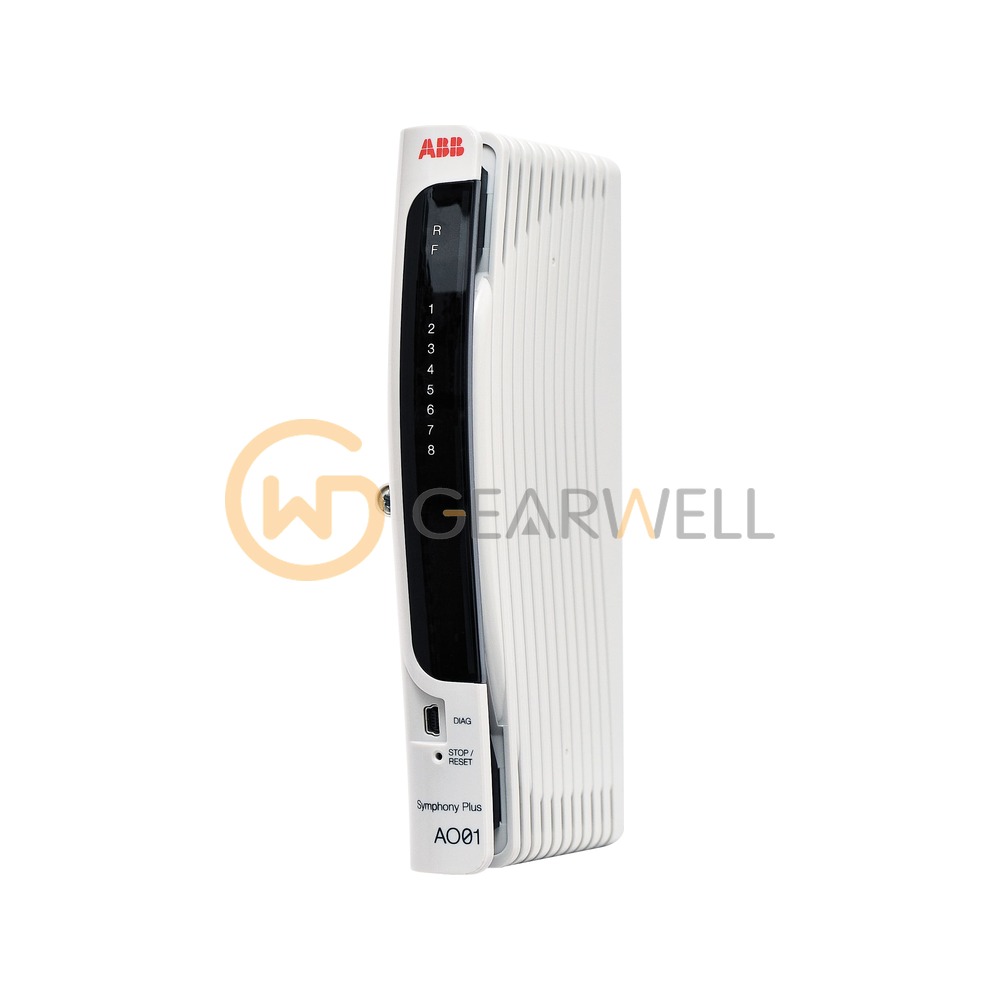

ABB AO01 Symphony Plus SD Series I/O Analog output module
- Brand
- ABB
- Model
- AO01
- GEARWELL SKU
- GWP-000014527
- Category
- PLCs & I/O
Key specifications
- Base
- xBS01-EPD
- Isolation
- 2 x 8 channels group isolated
- Channel type
- AO
- Output signals
- 4-20 mA, 1-5 V DC
- Product net width
- 34 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB AO01 is the Symphony Plus SD Series AO01 analog output module, which processes 16 high-level analog control outputs, each individually programmable for current or voltage. Each output reads back the signal to the field, so outputs need no calibration. The controller configures it with function code 221 (I/O Device Definition) and function code 223 (Analog Out/Channel). It is used with the HBS01-EPD or VBS01-EPD base.
Technical reference
| Product name | ABB AO01 Symphony Plus SD Series I/O Analog output module |
|---|---|
| Brand | ABB |
| Model | AO01 |
| Category | PLCs & I/O |
| Base | xBS01-EPD |
| Isolation | 2 x 8 channels group isolated |
| Channel type | AO |
| Output signals | 4-20 mA, 1-5 V DC |
| Product net width | 34 mm |
| Product net height | 118 mm |
| Product net depth/length | 190 mm |
| Number of output channels | 16 |
