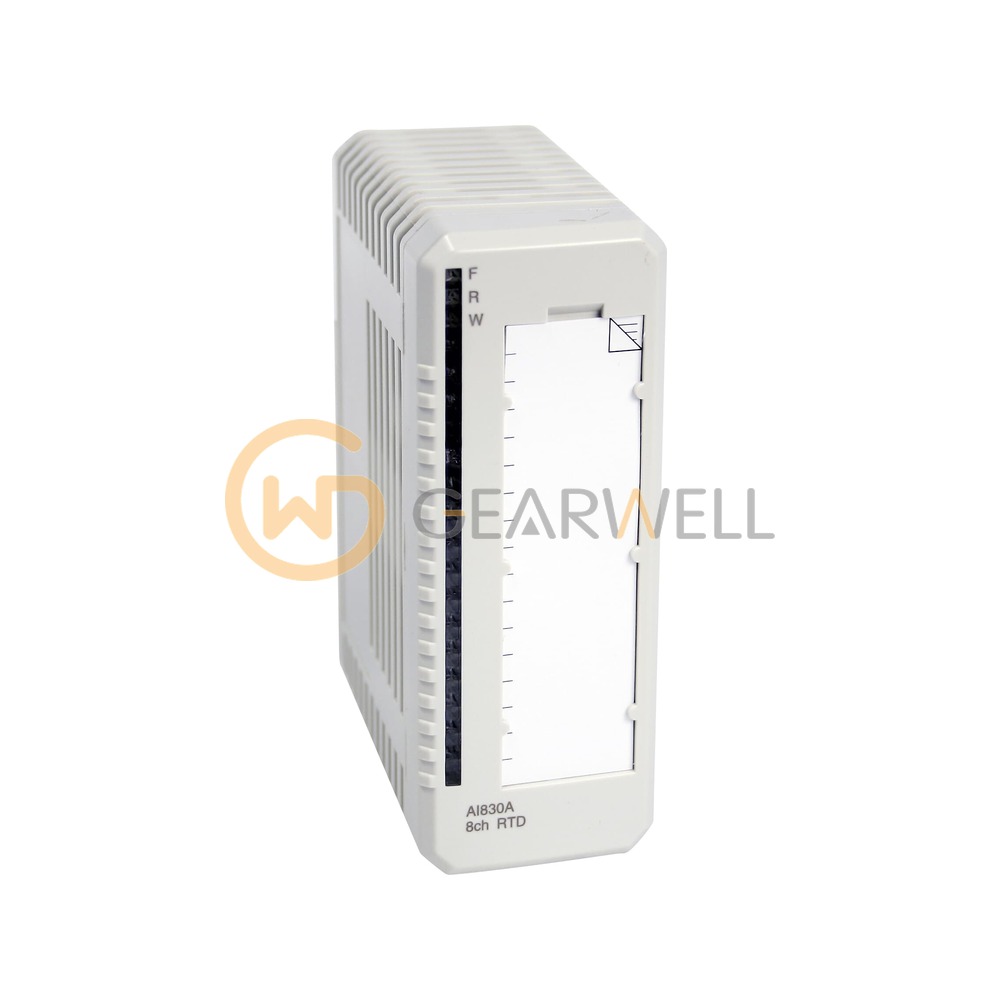

ABB AI830A S800 I/O Analog input module, RTD, 8 ch
- Brand
- ABB
- Model
- AI830A
- GEARWELL SKU
- GWP-000014442
- Category
- PLCs & I/O
Key specifications
- Weight
- 0.22 kg
- Channels
- 8
- Resolution
- 14 bit
- Input types
- Pt100, Cu10, Ni100, Ni120, resistor (3-wire)
- Power dissipation
- 1.6 W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB AI830A is an S800 I/O RTD input module with wire-fault detection: 8 channels in 1 group for Pt100, Ni100, Ni120, Cu10 or 0-400 Ω resistors, 3-wire, 14 bits. S800 I/O runs on 24 V d.c. (19.2 - 30 V), is rated IP20 and +5 to +55 °C operating, and takes up to 24 I/O modules per I/O station.
Technical reference
| Product name | ABB AI830A S800 I/O Analog input module, RTD, 8 ch |
|---|---|
| Brand | ABB |
| Model | AI830A |
| Category | PLCs & I/O |
| Weight | 0.22 kg |
| Channels | 8 |
| Resolution | 14 bit |
| Input types | Pt100, Cu10, Ni100, Ni120, resistor (3-wire) |
| Power dissipation | 1.6 W |
| Dimensions (W x H x D) | 45 x 119 x 102 mm |
| Current consumption +5 V / +24 V ModuleBus | 70 / 50 mA |
