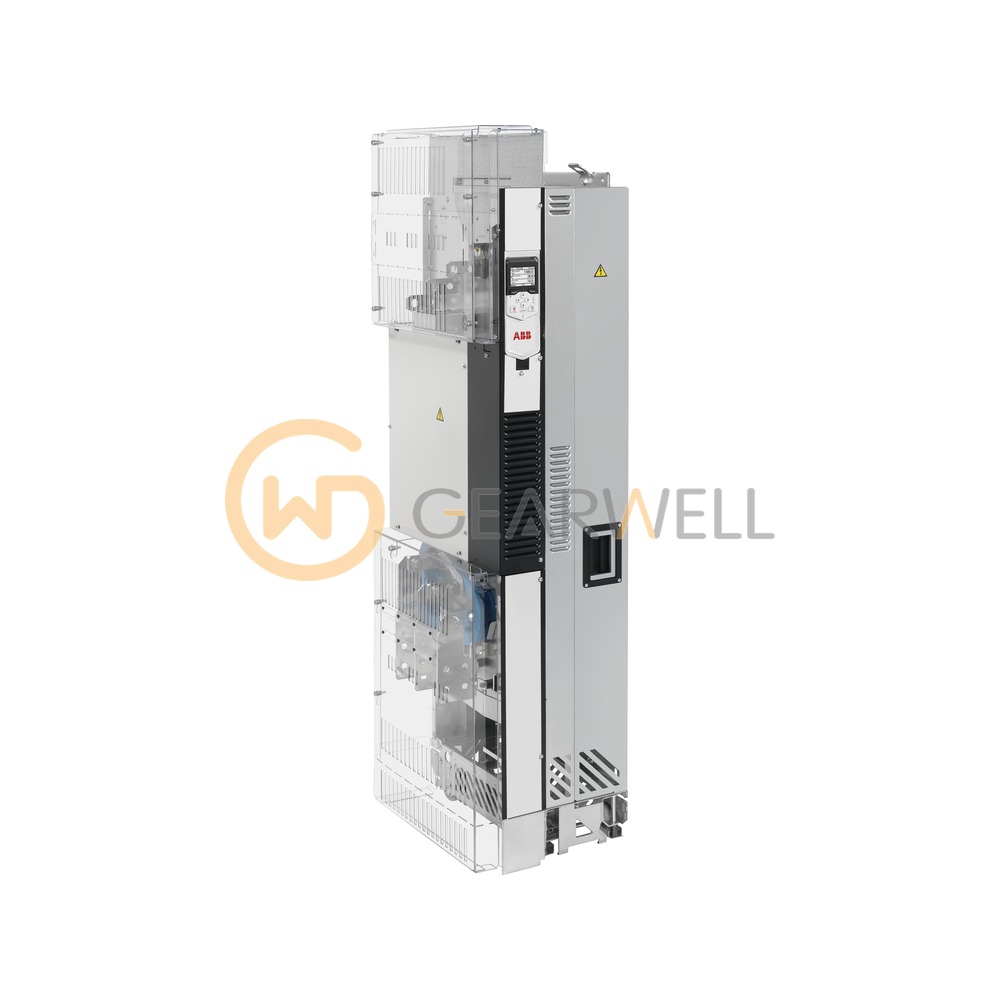

ABB ACS880-04-370A-7 ACS880 AC Drive Module
- Brand
- ABB
- Model
- ACS880-04-370A-7
- GEARWELL SKU
- GWP-000007762
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R10
- Net weight
- 161 kg
- Product ID
- 3ABD00039474-D
- Degree of protection
- IP20
- Dimensions (W x H x D)
- 350 x 1541 x 506 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS880-04-370A-7 is an ACS880-04 single drive module for 525–690 V three-phase supplies, rated 355 kW nominal and light-overload power and 315 kW heavy-duty power at 690 V, with 370 A nominal output current, in frame R10. ABB builds the essential features into the module, including a choke for harmonic filtering, and gives it IP20 protection, wheels for easy handling and flexible mounting and cabling directions for installation in the user's own cabinet. Options include a brake unit and resistor, C2 and C3 EMC filters, communication adapters, I/O extensions, functional safety modules and du/dt filters.
Technical reference
| Product name | ABB ACS880-04-370A-7 ACS880 AC Drive Module |
|---|---|
| Brand | ABB |
| Model | ACS880-04-370A-7 |
| Category | Variable Frequency Drives |
| Frame size | R10 |
| Net weight | 161 kg |
| Product ID | 3ABD00039474-D |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 350 x 1541 x 506 mm |
| Output power (normal use) | 355 kW |
| Output current (normal use) | 370 A |
