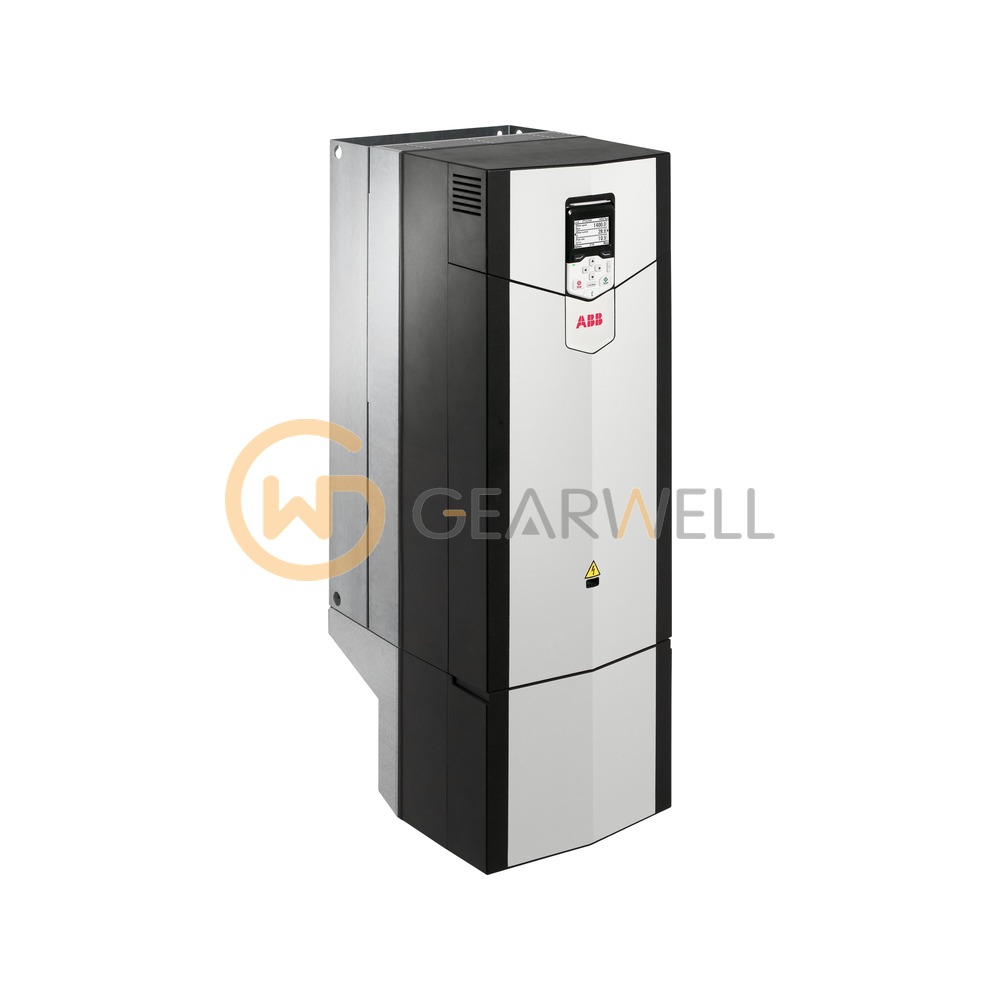

ABB ACS880-01-260A-5+D150+N5200 ACS880 Wall-mounted Drive
- Brand
- ABB
- Model
- ACS880-01-260A-5+D150+N5200
- GEARWELL SKU
- GWP-000011494
- Category
- Variable Frequency Drives
Key specifications
- Supply
- 3-phase, 380 ... 500 V
- Frame size
- R8
- Option +D150
- Brake chopper (built-in)
- Option +N5200
- PCP (progressive cavity pump) control program
- Degree of protection
- IP21
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS880-01-260A-5+D150+N5200 is an ACS880-01 wall-mounted single drive for 380–500 V three-phase supplies, frame R8, rated 160 kW nominal power and 132 kW in heavy-duty use at 500 V. This type code carries two ABB plus codes: +D150, a brake chopper, and +N5200, the application control program for progressing cavity pumps (PCP) in artificial oil lifting. ABB builds the ACS880-01 with a harmonic filtering choke as standard and IP21 as the standard enclosure for wall mounting; IP55, EMC filters, communication adapters and functional safety modules are available as options.
Technical reference
| Product name | ABB ACS880-01-260A-5+D150+N5200 ACS880 Wall-mounted Drive |
|---|---|
| Brand | ABB |
| Model | ACS880-01-260A-5+D150+N5200 |
| Category | Variable Frequency Drives |
| Supply | 3-phase, 380 ... 500 V |
| Frame size | R8 |
| Option +D150 | Brake chopper (built-in) |
| Option +N5200 | PCP (progressive cavity pump) control program |
| Degree of protection | IP21 |
| Dimensions (W x H x D) | 300 x 965 x 386 mm |
| Output power (normal use) | 160 kW |
| Output current (normal use) | 260 A |
| Output current (heavy-duty use) | 240 A |
| ABB product ID (base drive ACS880-01-260A-5) | 3AUA0000090446 |
