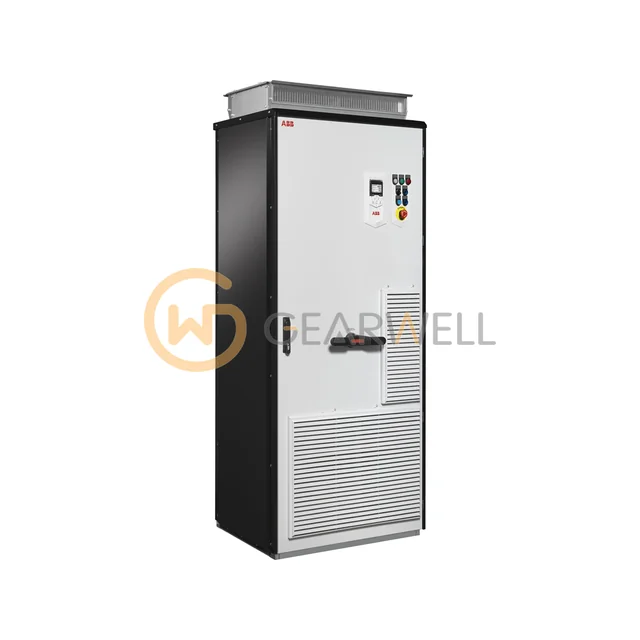

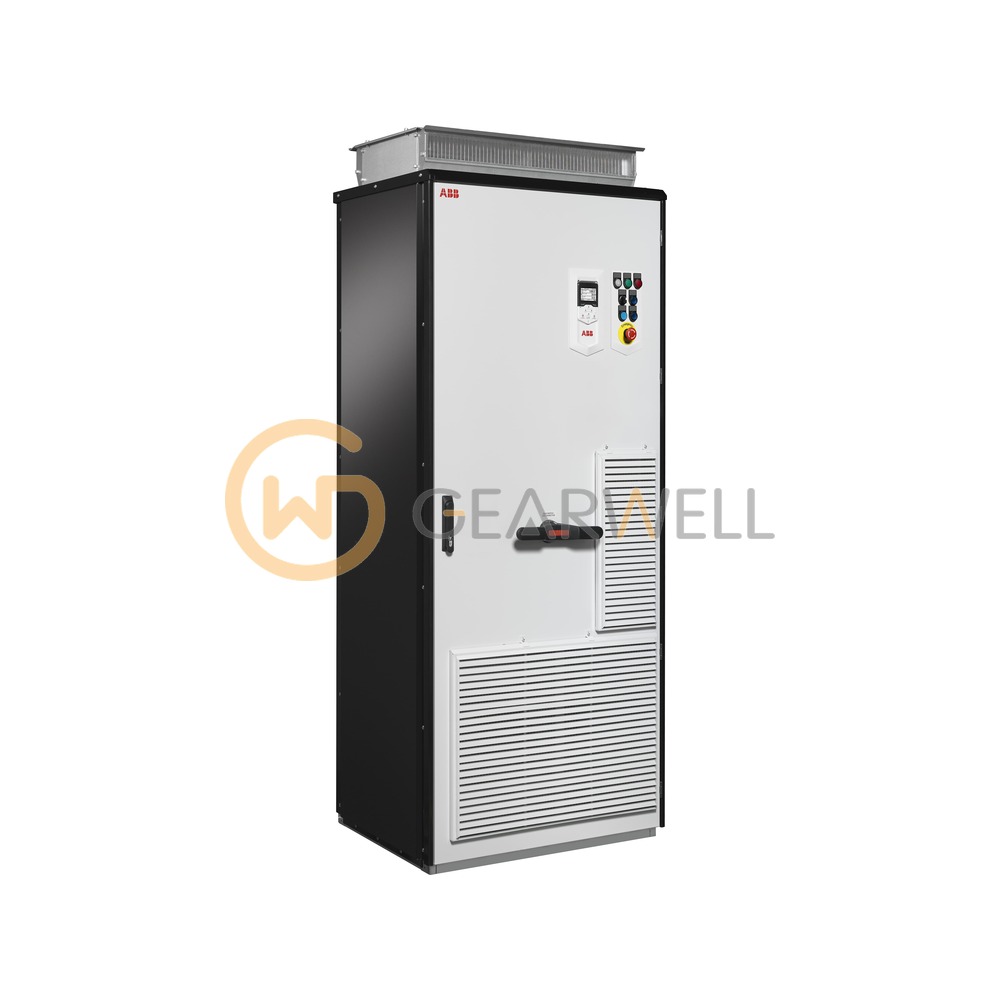

ABB ACS880-07-0169A-3 ACS880 Cabinet-built AC Drive
- Brand
- ABB
- Model
- ACS880-07-0169A-3
- GEARWELL SKU
- GWP-000007769
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R7
- Net weight
- 250 kg
- Product ID
- 3AUA0000120587
- Degree of protection
- IP22
- Dimensions (W x H x D)
- 430 x 2145 x 673 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS880-07-0169A-3 is an ACS880-07 cabinet-built drive for 380–415 V three-phase supplies with a 6-pulse diode supply, rated 90 kW nominal and light-overload power and 75 kW heavy-duty power at 400 V, with 169 A nominal output current, in frame R7. ABB builds each ACS880-07 to order in a cabinet that holds the rectifier, DC link, inverter, fuses, line choke and main switch, with IP22 as standard and IP42 or IP54 as options. Options include C2 and C3 EMC filters, brake options, du/dt filters, I/O extensions, fieldbus adapters and functional safety modules.
Technical reference
| Product name | ABB ACS880-07-0169A-3 ACS880 Cabinet-built AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS880-07-0169A-3 |
| Category | Variable Frequency Drives |
| Frame size | R7 |
| Net weight | 250 kg |
| Product ID | 3AUA0000120587 |
| Degree of protection | IP22 |
| Dimensions (W x H x D) | 430 x 2145 x 673 mm |
| Output power (normal use) | 90 kW |
| Output current (normal use) | 169 A |
