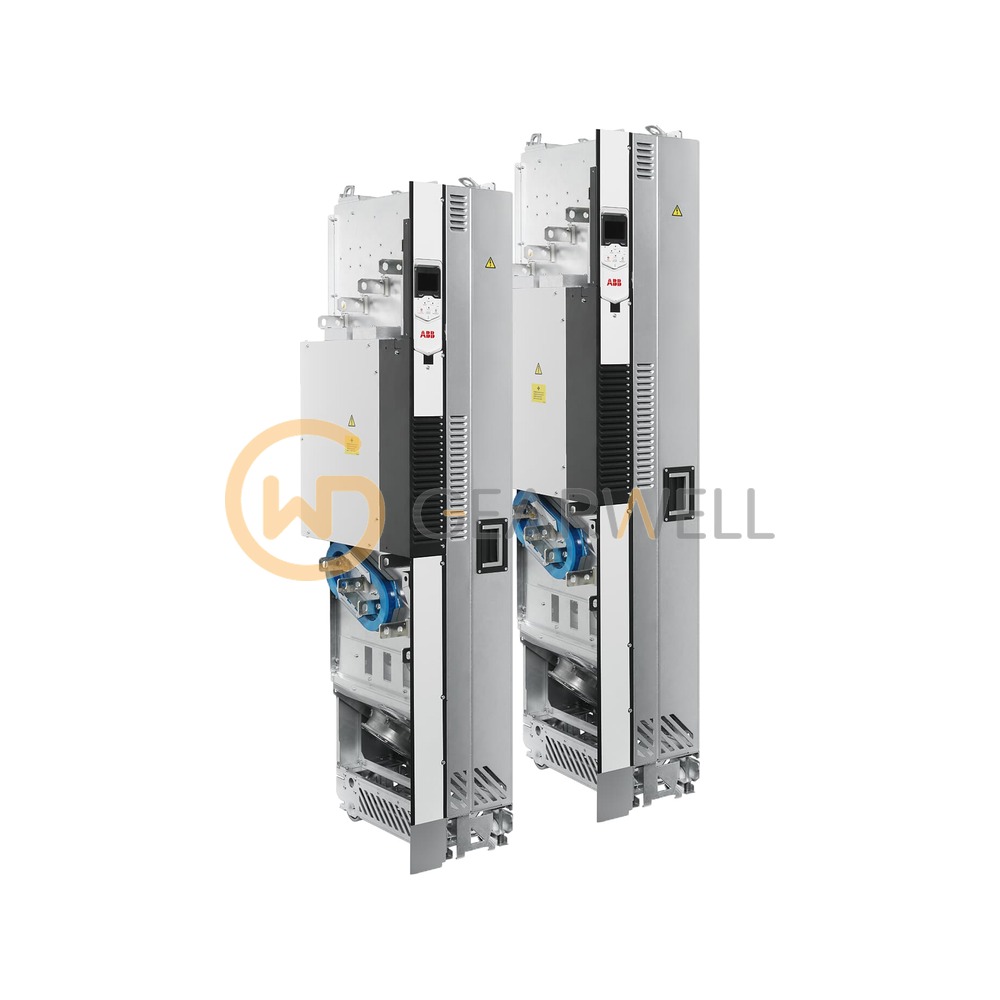

ABB ACS880-04XT-1330A-3 ACS880 Drive Module Package
- Brand
- ABB
- Model
- ACS880-04XT-1330A-3
- GEARWELL SKU
- GWP-000007771
- Category
- Variable Frequency Drives
Key specifications
- Product ID
- 3AXD50000050014
- Output power (normal use)
- 710 kW
- Output current (normal use)
- 1240 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS880-04XT-1330A-3 is an ACS880-04XT drive module package for 380–415 V three-phase supplies, rated 710 kW nominal and light-overload power and 560 kW heavy-duty power at 400 V, with 1330 A nominal output current. ABB builds this package from two ACS880-04-725A-3+P943 drive modules (2 × frame R11), and it can be configured for a 6- or 12-pulse supply. It is IP00 as standard, IP20 with optional shrouds, and is intended for installation in the user's own cabinet. Options include a brake unit and resistor, C2 and C3 EMC filters, communication adapters, I/O extensions, functional safety modules and du/dt filters.
Technical reference
| Product name | ABB ACS880-04XT-1330A-3 ACS880 Drive Module Package |
|---|---|
| Brand | ABB |
| Model | ACS880-04XT-1330A-3 |
| Category | Variable Frequency Drives |
| Product ID | 3AXD50000050014 |
| Output power (normal use) | 710 kW |
| Output current (normal use) | 1240 A |
