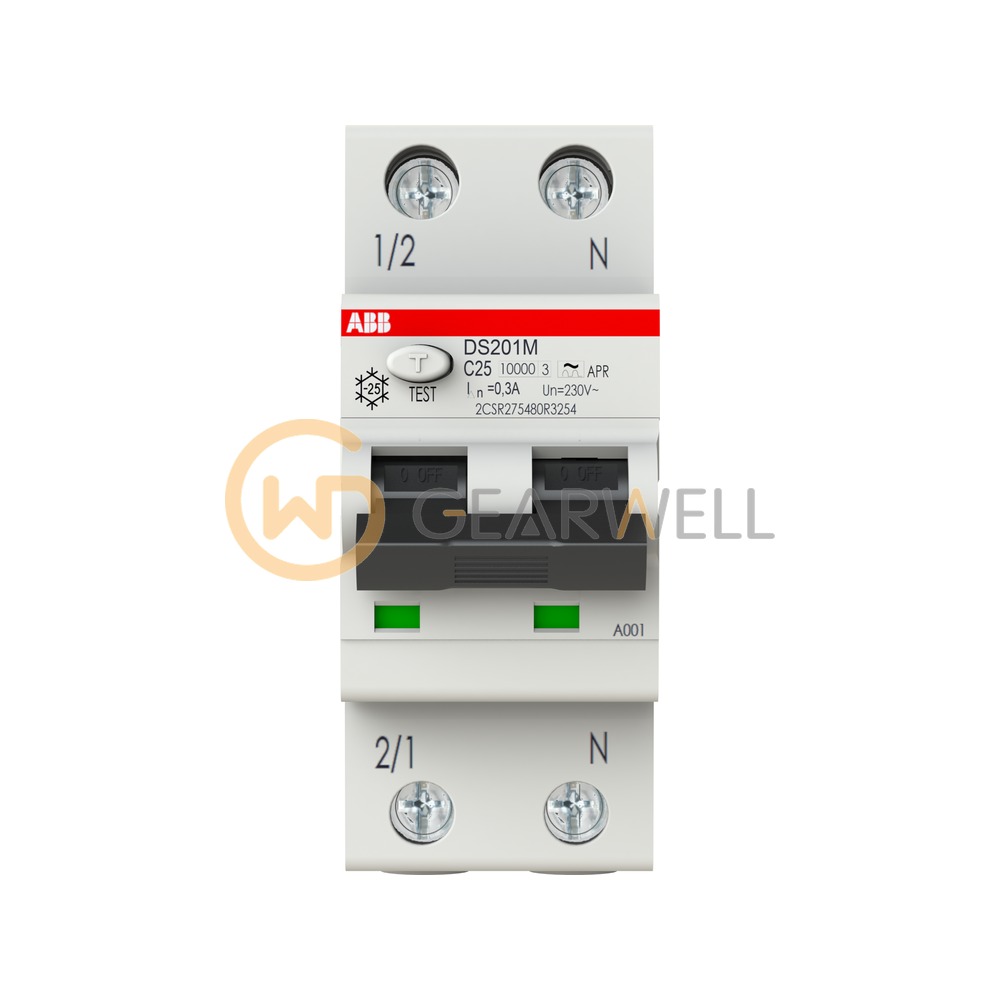

ABB 2CSR275480R3254 DS201 M C25 APR300 RCBO 1P+N
- Brand
- ABB
- Model
- 2CSR275480R3254
- GEARWELL SKU
- GWP-000011170
- Category
- Circuit Protection
Key specifications
- Type
- DS201 M C25 APR300
- Width
- 2 modules
- Rated current
- 25 A
- Number of poles
- 1P+N
- Residual current type
- Type A APR, 10 ms delay
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ABB 2CSR275480R3254 DS201 M C25 APR300 RCBO 1P+N |
|---|---|
| Brand | ABB |
| Model | 2CSR275480R3254 |
| Category | Circuit Protection |
| Type | DS201 M C25 APR300 |
| Width | 2 modules |
| Rated current | 25 A |
| Number of poles | 1P+N |
| Residual current type | Type A APR, 10 ms delay |
| Rated residual current | 300 mA |
| Tripping characteristic | C |
| Rated short-circuit capacity | 10 kA |
