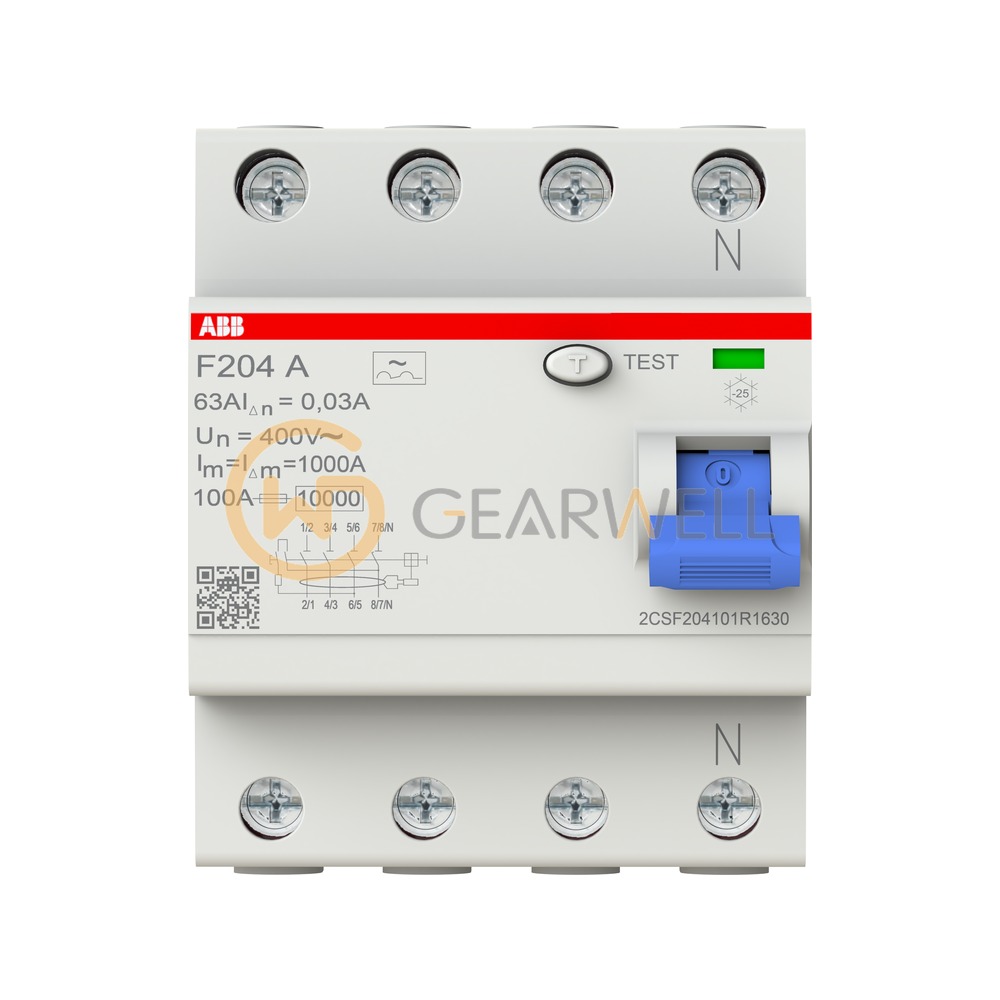

ABB 2CSF204101R1630 F204 A-63/0.03 4P RCCB 63 A 30 mA
- Brand
- ABB
- Model
- 2CSF204101R1630
- GEARWELL SKU
- GWP-000011169
- Category
- Circuit Protection
Key specifications
- Type
- F204 A-63/0.03
- Width
- 4 modules
- Rated current
- 63 A
- Rated voltage
- 230/400 V
- Number of poles
- 4P
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 2CSF204101R1630 is the ABB F204 A-63/0.03 residual current circuit breaker of the F 200 series, type A: 4 poles, rated current 63 A and rated residual current 30 mA. It protects against sinusoidal alternating and pulsating DC earth fault currents, indirect contacts and, with IΔn=30 mA, direct contacts, to IEC/EN 61008; weight is 0.375 kg.
Technical reference
| Product name | ABB 2CSF204101R1630 F204 A-63/0.03 4P RCCB 63 A 30 mA |
|---|---|
| Brand | ABB |
| Model | 2CSF204101R1630 |
| Category | Circuit Protection |
| Type | F204 A-63/0.03 |
| Width | 4 modules |
| Rated current | 63 A |
| Rated voltage | 230/400 V |
| Number of poles | 4P |
| Residual current type | Type A, instantaneous |
| Rated residual current | 30 mA |
| Conditional short-circuit current Inc | 10 kA |
