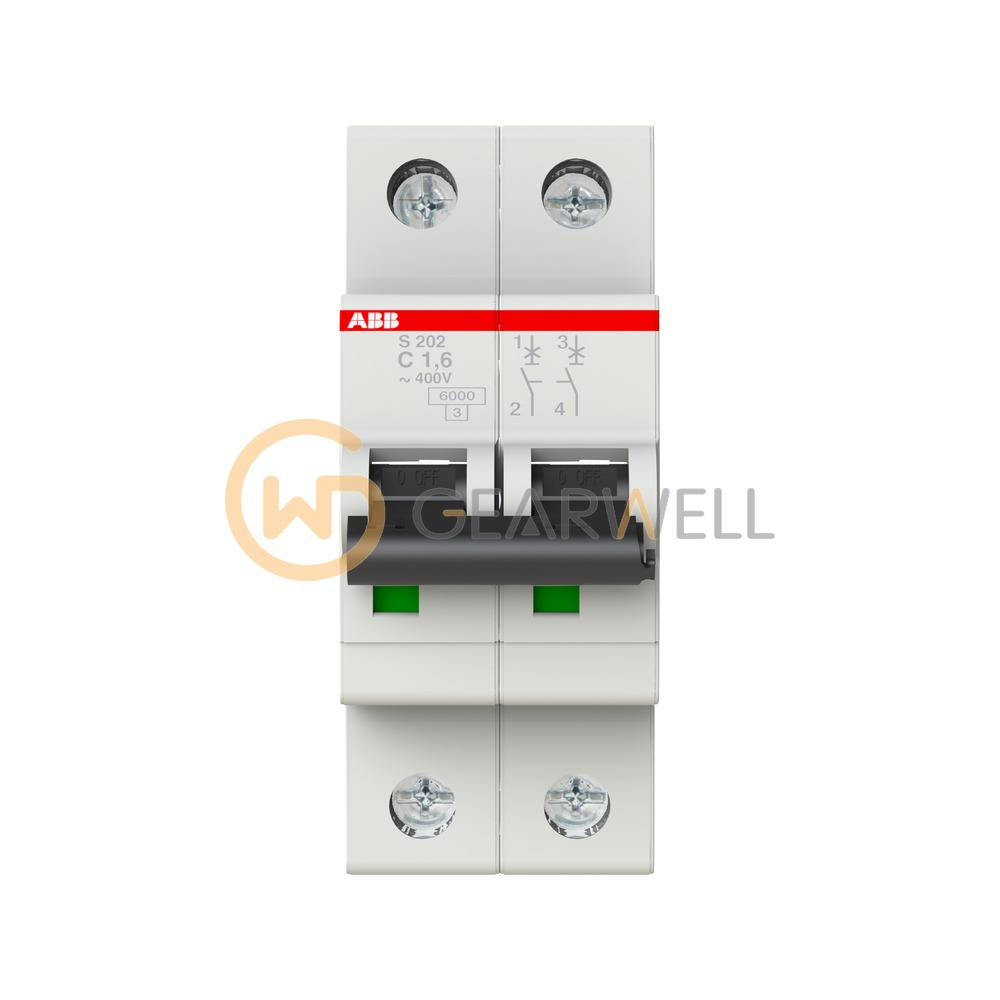

ABB 2CDS252001R0974 S202-C1.6 S200 Miniature Circuit Breaker
- Brand
- ABB
- Model
- 2CDS252001R0974
- GEARWELL SKU
- GWP-000007524
- Category
- Circuit Protection
Key specifications
- Rated current
- 1.6 A
- Number of poles
- 2P
- Type designation
- S202-C1.6
- Tightening torque
- 2.8 N·m
- Electrical endurance
- 20000 cycles
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 2CDS252001R0974 is the ABB S 202-C 1.6 miniature circuit breaker of the S 200 series: 2 poles, rated current 1.6 A, C characteristic and Icn = 6 kA to IEC/EN 60898-1, for protecting circuits with resistive and inductive loads with low inrush current. Weight is 0.250 kg.
Technical reference
| Product name | ABB 2CDS252001R0974 S202-C1.6 S200 Miniature Circuit Breaker |
|---|---|
| Brand | ABB |
| Model | 2CDS252001R0974 |
| Category | Circuit Protection |
| Rated current | 1.6 A |
| Number of poles | 2P |
| Type designation | S202-C1.6 |
| Tightening torque | 2.8 N·m |
| Electrical endurance | 20000 cycles |
| Rated breaking capacity | 6 kA |
| Tripping characteristic | C |
| Ultimate short-circuit breaking capacity Icu (400 V AC) | 10 kA |
