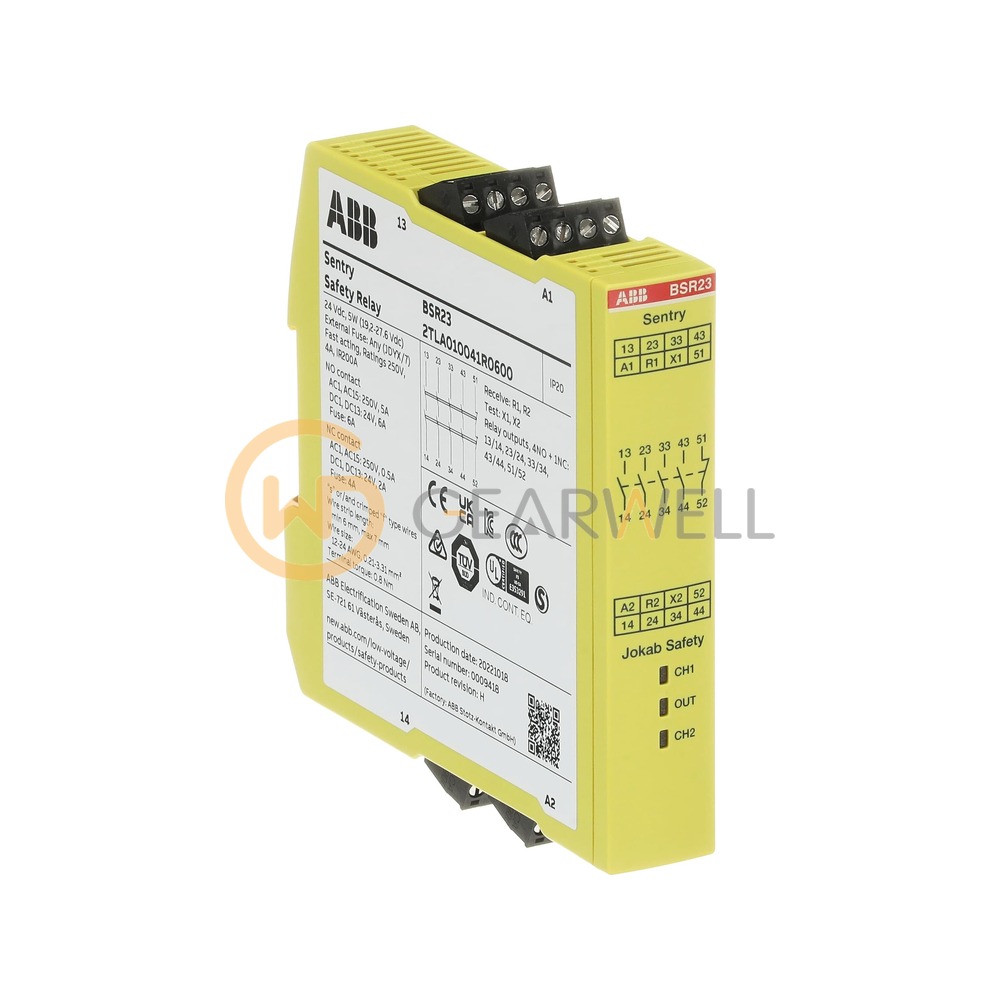

ABB 2TLA010041R0600 Sentry BSR23 Safety Expansion Relay
- Brand
- ABB
- Model
- 2TLA010041R0600
- GEARWELL SKU
- GWP-000007525
- Category
- Machine Safety & Vision
Key specifications
- Width
- 22.5 mm
- Outputs
- 4NO + 1NC (relay)
- Type designation
- Sentry BSR23
- Performance level
- up to PL e
- Degree of protection
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 2TLA010041R0600 is the ABB Sentry BSR23 safety relay with 4 NO + 1 NC relay outputs (NO contacts 5A at 250 VAC AC15 for 1 contact, 6A at +24 VDC), supplied through its signal input port R with PELV/SELV; internal consumption is 3W. BSR23 must be monitored by another device, for example a safety relay, a safety PLC or an Orion light guard, to reach higher than Category 1/PL c to EN ISO 13849-1. It mounts on a 35 mm DIN rail, is rated IP20, operates at -25°C – +55°C and weighs 190 – 230 g.
Technical reference
| Product name | ABB 2TLA010041R0600 Sentry BSR23 Safety Expansion Relay |
|---|---|
| Brand | ABB |
| Model | 2TLA010041R0600 |
| Category | Machine Safety & Vision |
| Width | 22.5 mm |
| Outputs | 4NO + 1NC (relay) |
| Type designation | Sentry BSR23 |
| Performance level | up to PL e |
| Degree of protection | IP20 |
| Operating temperature | -25 to 55 °C |
| Safety integrity level | SIL 3 |
| Rated control supply voltage | 24 V DC |
