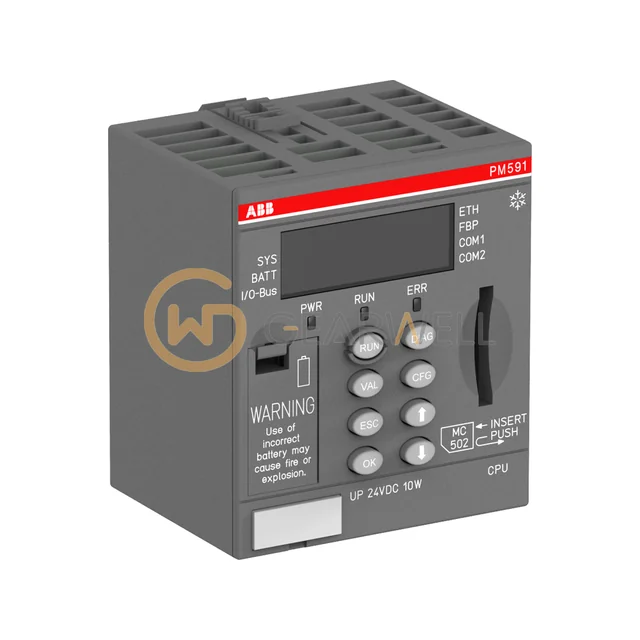

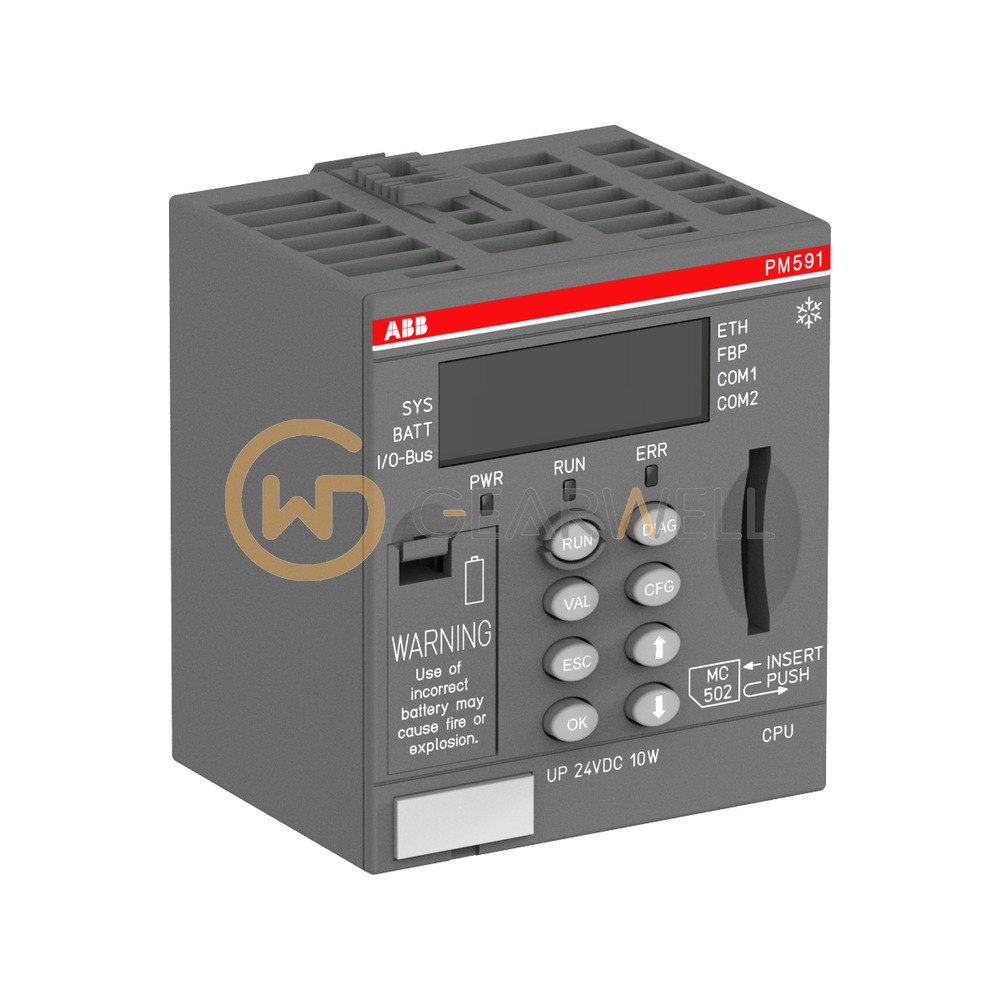

ABB 1SAP350100R0271 PM591-ETH-XC AC500-XC Processor Module
- Brand
- ABB
- Model
- 1SAP350100R0271
- GEARWELL SKU
- GWP-000007517
- Category
- PLCs & I/O
Key specifications
- Memory
- 4 MB
- Interfaces
- Ethernet, 2x RS232/485, FBP
- Net weight
- 0.139 kg
- Rated voltage
- 24 V DC
- Supply voltage
- 20.4 to 28.8 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 1SAP350100R0271 is the PM591-ETH-XC CPU of the AC500-XC range for operation in eXtreme Conditions, with 4096 kB program memory, minimum cycle times of 0.002 / 0.004 / 0.004 µs (bit / word / floating point) and integrated Ethernet plus 2 serial interfaces. It is centrally expandable with up to 10 S500 I/O modules (320 digital or 160 analog I/Os), runs up to 4 external communication modules and provides a web server and IEC 60870-5-104; weight is 0.150 kg.
Technical reference
| Product name | ABB 1SAP350100R0271 PM591-ETH-XC AC500-XC Processor Module |
|---|---|
| Brand | ABB |
| Model | 1SAP350100R0271 |
| Category | PLCs & I/O |
| Memory | 4 MB |
| Interfaces | Ethernet, 2x RS232/485, FBP |
| Net weight | 0.139 kg |
| Rated voltage | 24 V DC |
| Supply voltage | 20.4 to 28.8 V DC |
| Type designation | PM591-ETH-XC |
| Degree of protection | IP20 |
| Operating temperature | -30 to 70 °C |
