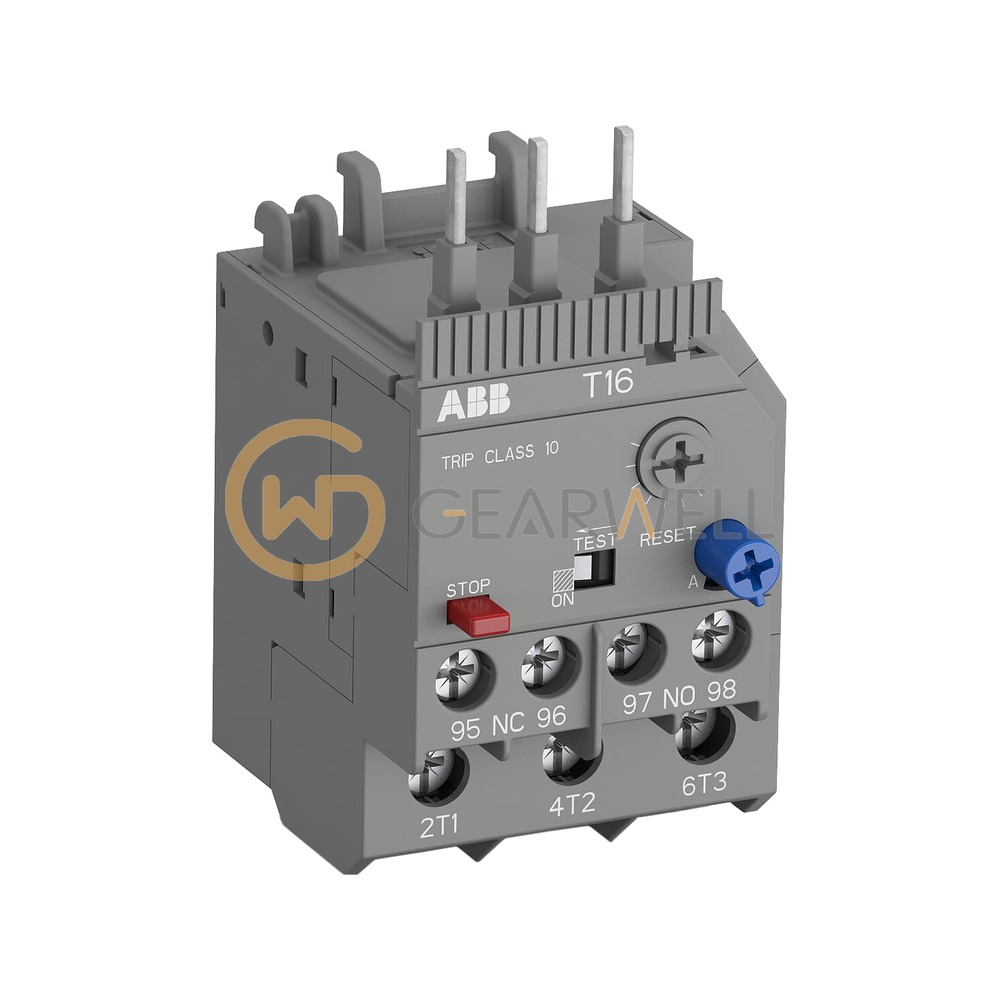

ABB 1SAZ711201R1038 T16-5.7 Thermal Overload Relay 4.2-5.7 A
- Brand
- ABB
- Model
- 1SAZ711201R1038
- GEARWELL SKU
- GWP-000011161
- Category
- Contactors & Starters
Key specifications
- Suitable for
- B6, BC6, B7, BC7, VB6, VB7, MC1, MC2, AS09, AS12, AS16
- Setting range
- 4.2 ... 5.7 A
- Number of poles
- 3P
- Auxiliary contacts
- 1 NO + 1 NC
- ABB type designation
- T16-5.7
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 1SAZ711201R1038 is the ABB T16-5.7 thermal overload relay with a setting range of 4.20...5.70 A, a screw-terminal version for direct mounting on B6/B7/VB6/VB7 mini contactors and AS09 … AS16 block contactors; weight is 0.100 kg. It has trip class 10, phase loss sensitivity, temperature compensation from -25…+60 °C, automatic or manual reset and a STOP and TEST function; rated operational voltage is 690 V AC (IEC).
Technical reference
| Product name | ABB 1SAZ711201R1038 T16-5.7 Thermal Overload Relay 4.2-5.7 A |
|---|---|
| Brand | ABB |
| Model | 1SAZ711201R1038 |
| Category | Contactors & Starters |
| Suitable for | B6, BC6, B7, BC7, VB6, VB7, MC1, MC2, AS09, AS12, AS16 |
| Setting range | 4.2 ... 5.7 A |
| Number of poles | 3P |
| Auxiliary contacts | 1 NO + 1 NC |
| ABB type designation | T16-5.7 |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 45 x 76.7 x 53.5 mm |
| Rated operational voltage (main circuit) | 690 V AC |
