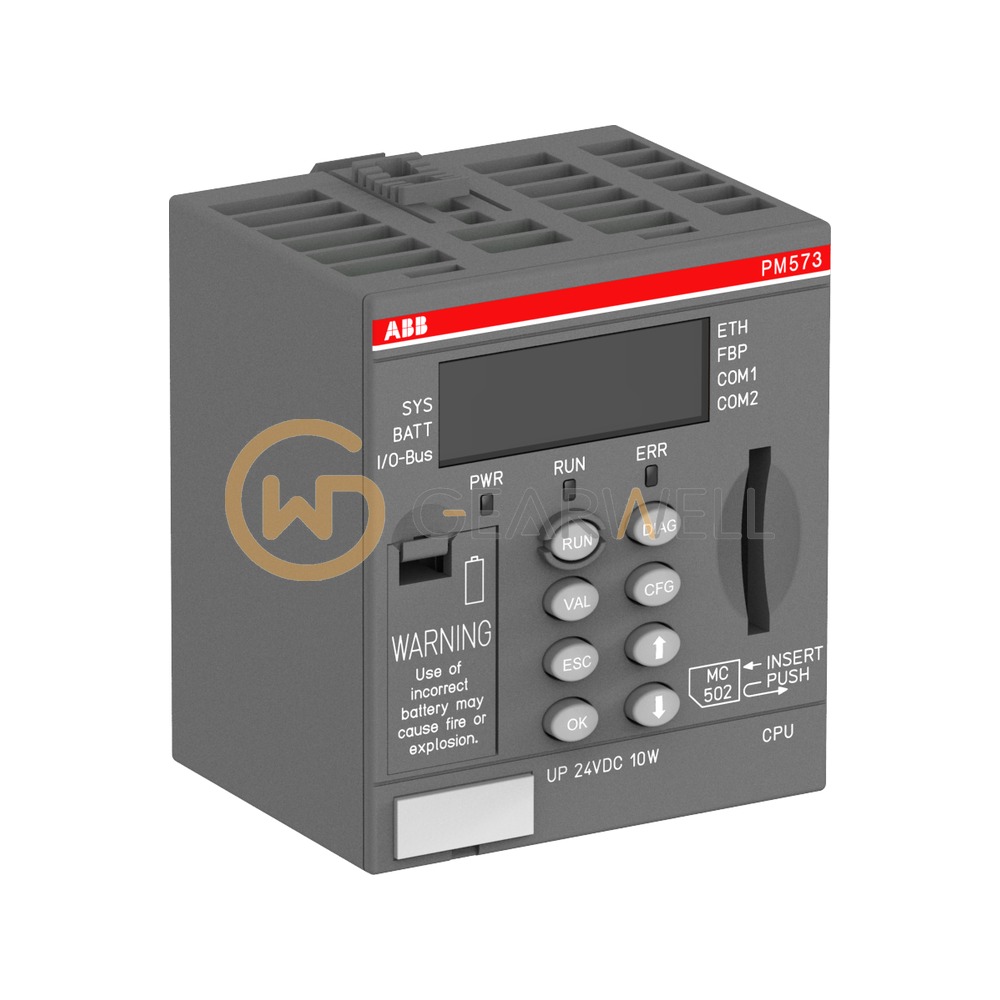

ABB 1SAP130300R0271 PM573-ETH AC500 Processor Module
- Brand
- ABB
- Model
- 1SAP130300R0271
- GEARWELL SKU
- GWP-000007514
- Category
- PLCs & I/O
Key specifications
- Interfaces
- Ethernet, 2x RS232/485, FBP
- Net weight
- 0.135 kg
- Rated voltage
- 24 V DC
- Supply voltage
- 20.4 to 28.8 V DC
- Type designation
- PM573-ETH
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 1SAP130300R0271 is the PM573-ETH AC500 CPU with 512 kB program memory, minimum cycle times per instruction of 0.06 / 0.09 / 0.7 µs (bit / word / floating point) and integrated Ethernet plus 2 serial interfaces; weight is 0.150 kg. AC500 CPUs have 2 internal serial interfaces (RS232 / RS485 configurable), a display with 8 function keys, central expansion with up to 10 I/O modules and up to 4 external communication modules; the Ethernet version provides a web server and IEC 60870-5-104.
Technical reference
| Product name | ABB 1SAP130300R0271 PM573-ETH AC500 Processor Module |
|---|---|
| Brand | ABB |
| Model | 1SAP130300R0271 |
| Category | PLCs & I/O |
| Interfaces | Ethernet, 2x RS232/485, FBP |
| Net weight | 0.135 kg |
| Rated voltage | 24 V DC |
| Supply voltage | 20.4 to 28.8 V DC |
| Type designation | PM573-ETH |
| User program memory | 512 kB |
| Degree of protection | IP20 |
| Operating temperature | 0 to 60 °C |
