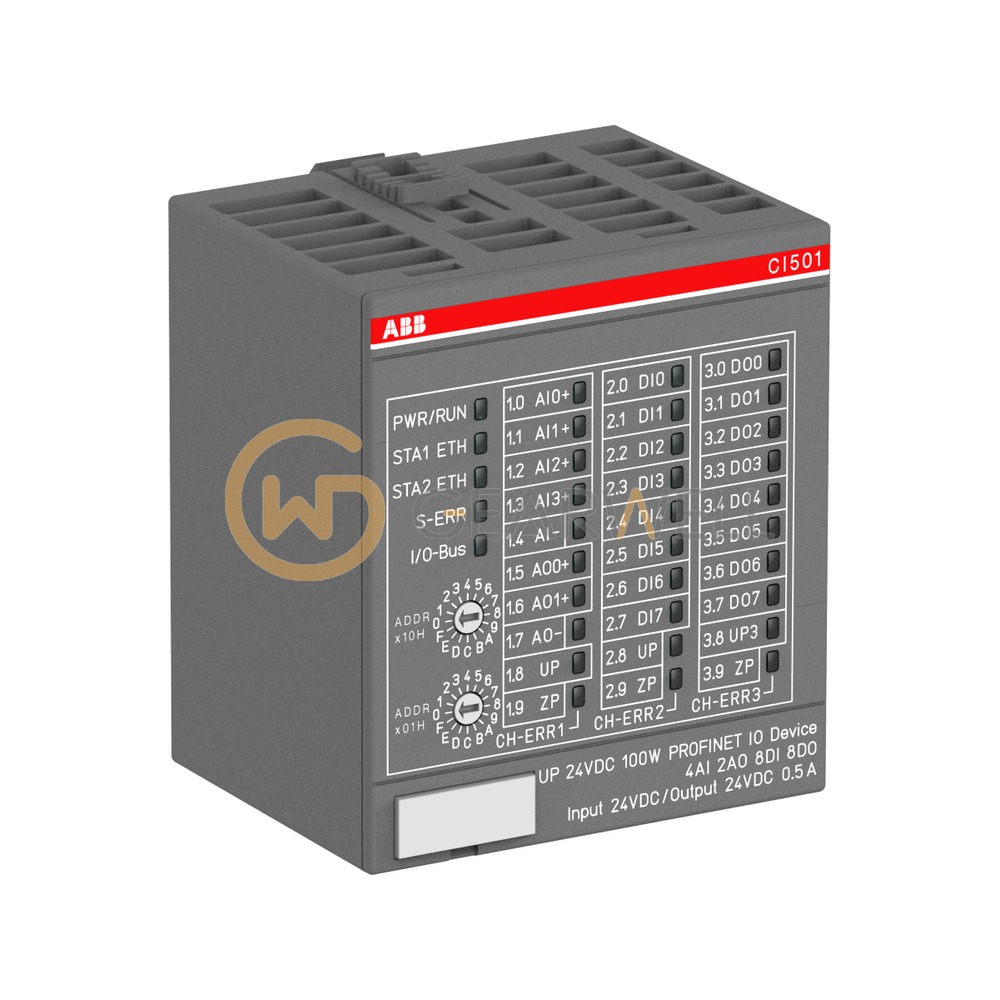

ABB 1SAP220600R0001 CI501-PNIO S500 PROFINET Interface Module
- Brand
- ABB
- Model
- 1SAP220600R0001
- GEARWELL SKU
- GWP-000007516
- Category
- PLCs & I/O
Key specifications
- Fieldbus
- PROFINET IO RT device
- Net weight
- 0.136 kg
- Analog inputs
- 4 (U, I, RTD)
- Analog outputs
- 2 (U, I)
- Digital inputs
- 8 (24 V DC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 1SAP220600R0001 is the CI501-PNIO communication interface module for PROFINET IO RT, for decentralized expansion of AC500 I/O. It also has onboard 4 analog inputs, 2 analog outputs, 8 digital inputs and 8 transistor outputs (24 V DC, 0.5 A); inputs take 24 V DC, 0…10 V, -10…+10 V, 0…20 mA, 4…20 mA, PT100, PT1000, Ni100 or Ni1000. It mounts on the TU507-ETH or TU508-ETH terminal unit; weight is 0.200 kg.
Technical reference
| Product name | ABB 1SAP220600R0001 CI501-PNIO S500 PROFINET Interface Module |
|---|---|
| Brand | ABB |
| Model | 1SAP220600R0001 |
| Category | PLCs & I/O |
| Fieldbus | PROFINET IO RT device |
| Net weight | 0.136 kg |
| Analog inputs | 4 (U, I, RTD) |
| Analog outputs | 2 (U, I) |
| Digital inputs | 8 (24 V DC) |
| Supply voltage | 20.4 to 28.8 V DC |
| Digital outputs | 8 (transistor, 0.5 A) |
| Type designation | CI501-PNIO |
