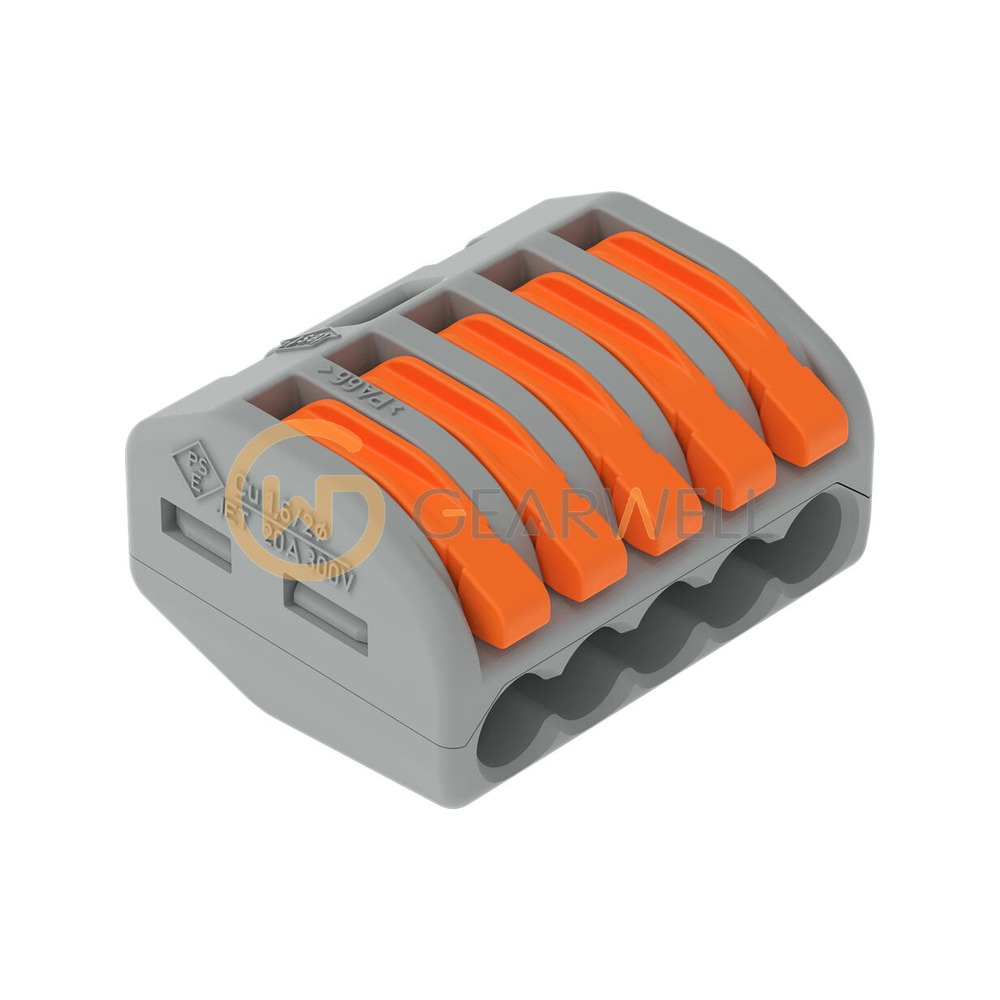

WAGO 222-415 Lever Splicing Connector

Product overview

The WAGO 222-415 is a lever-operated splicing connector from the WAGO 222 Series with 5 clamping units, a gray housing and orange levers. It connects solid and stranded conductors of 0.08 … 2.5 mm² and fine-stranded conductors of 0.08 … 4 mm² (28 … 12 AWG), in copper or aluminum, with CAGE CLAMP connection technology and a strip length of 9 … 10 mm. Per EN 60664 it is rated 400 V, 4 kV and 32 A for overvoltage category II and pollution degree 2. The housing has flammability class V0 per UL94, the continuous operating temperature is 85 °C at an ambient temperature up to +40 °C, and the 222-500 mounting carrier fixes it on a DIN-35 rail or screw mount.
