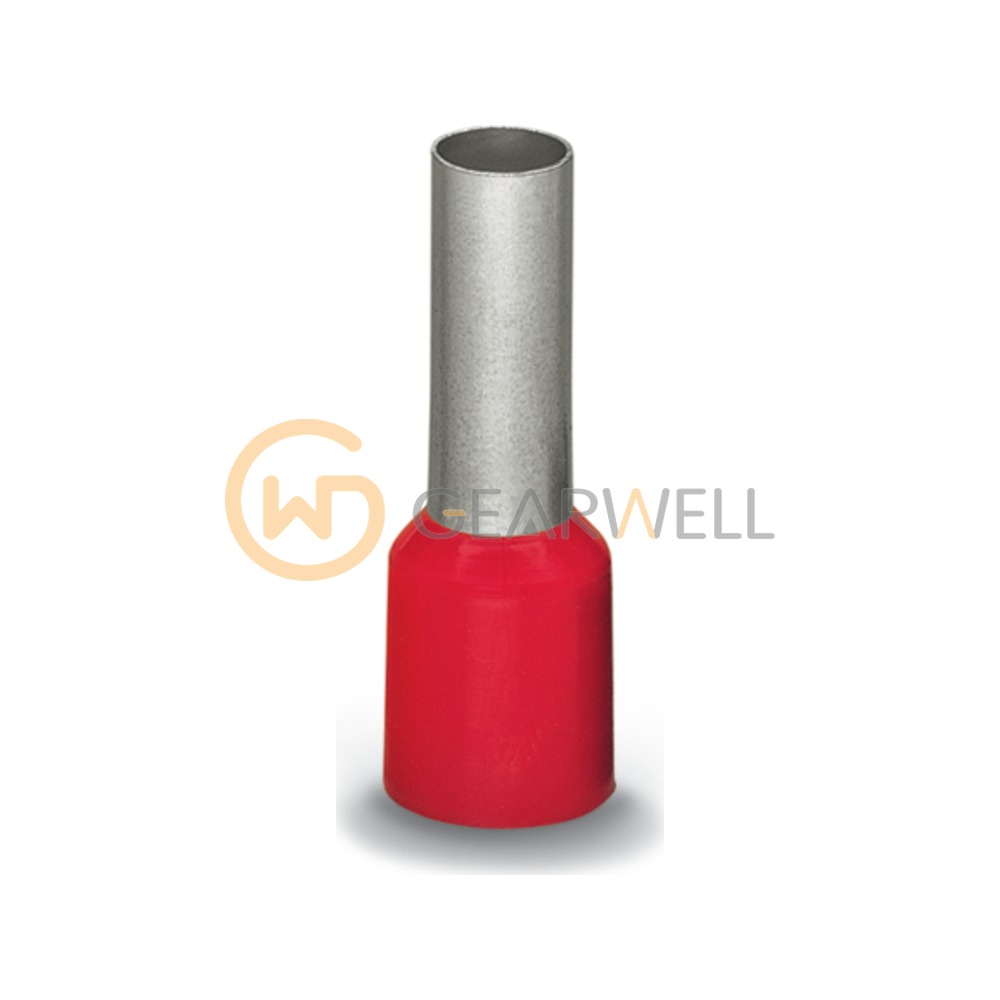

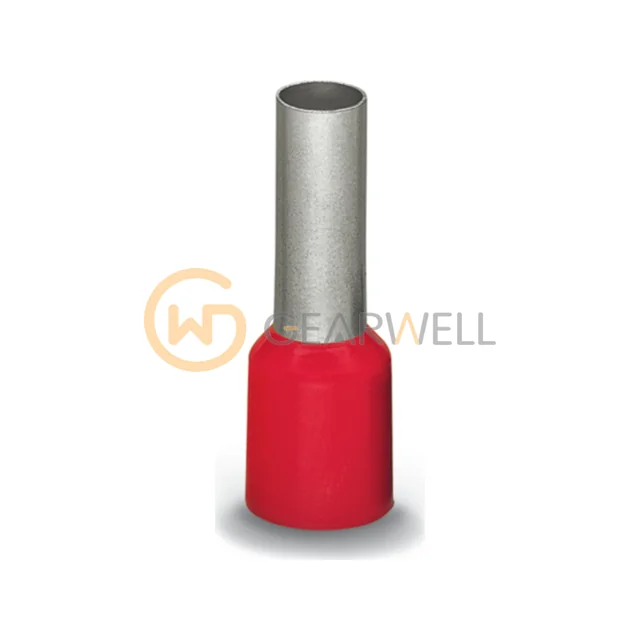

WAGO 216-209 216 Series Insulated Ferrule
- Brand
- WAGO
- Model
- 216-209
- GEARWELL SKU
- GWP-000012150
- Category
- Terminals, Cables & Connectors
Key specifications
- Color
- red
- Finish
- Insulated; electro-tin plated
- Strip length
- 16 … 17 mm
- Plastic collar
- Standard collar
- Total length (L)
- 22 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 216-209 is an insulated, electro-tin plated ferrule of electrolytic copper for a 6 mm² / 8 AWG conductor, with a red plastic collar. The strip length is 16 … 17 mm / 0.63 … 0.67 inch, the total length 22 mm and the crimp length 12 mm. The plastic collar has an inner diameter of 7.6 mm and the crimp sleeve an inside diameter of 4.5 mm. It is packed 1000 per unit.
Technical reference
| Product name | WAGO 216-209 216 Series Insulated Ferrule |
|---|---|
| Brand | WAGO |
| Model | 216-209 |
| Category | Terminals, Cables & Connectors |
| Color | red |
| Finish | Insulated; electro-tin plated |
| Strip length | 16 … 17 mm |
| Plastic collar | Standard collar |
| Total length (L) | 22 mm |
| Cross-section (AWG) of ferrule | 8 AWG |
| Crimp length (length of sleeve L1) | 12 mm |
