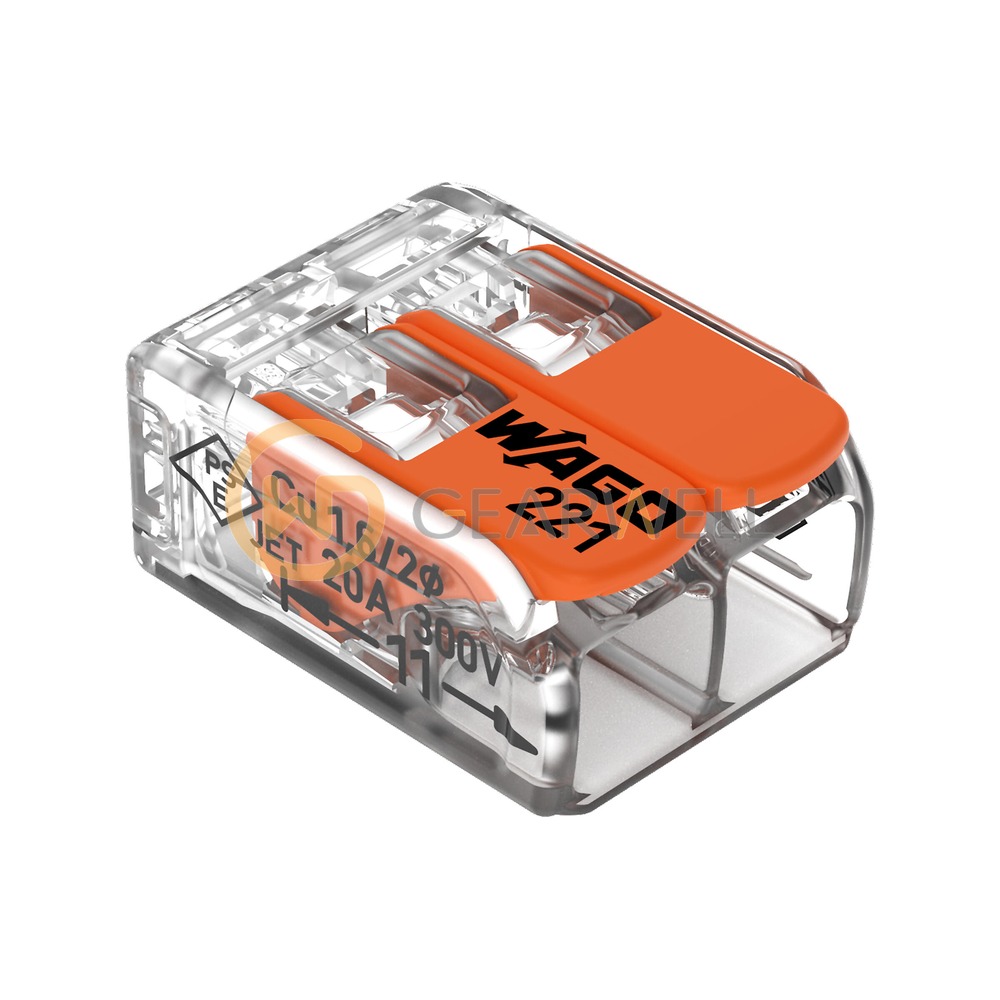

WAGO 221-412 221 Series Splicing Connector with Levers
- Brand
- WAGO
- Model
- 221-412
- GEARWELL SKU
- GWP-000012151
- Category
- Terminals, Cables & Connectors
Key specifications
- Color
- transparent
- Depth
- 18.6 mm
- Width
- 13.1 mm
- Height
- 8.3 mm
- Clamping units
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 221-412 is a lever-operated splicing connector from the WAGO 221 Series with 2 clamping units, a transparent housing and orange levers. It connects solid and stranded copper conductors of 0.2 … 4 mm² and fine-stranded conductors of 0.14 … 4 mm² (24 … 12 AWG) with CAGE CLAMP connection technology and a strip length of 11 mm. Per EN 60664 it is rated 450 V, 4 kV and 32 A for overvoltage category II and pollution degree 2, and per UL 486C 600 V and 20 A. The housing is polycarbonate (PC) with flammability class V2 per UL94, the ambient operating temperature is up to +85 °C (T85), and it can be fixed on a DIN-35 rail or screw mount with the 221-500 mounting carrier.
Technical reference
| Product name | WAGO 221-412 221 Series Splicing Connector with Levers |
|---|---|
| Brand | WAGO |
| Model | 221-412 |
| Category | Terminals, Cables & Connectors |
| Color | transparent |
| Depth | 18.6 mm |
| Width | 13.1 mm |
| Height | 8.3 mm |
| Clamping units | 2 |
| Max. conductor size | 4 mm² |
| Number of conductors | 2 |
| Total number of potentials | 1 |
| Temperature marking per EN 60998 | T85 |
