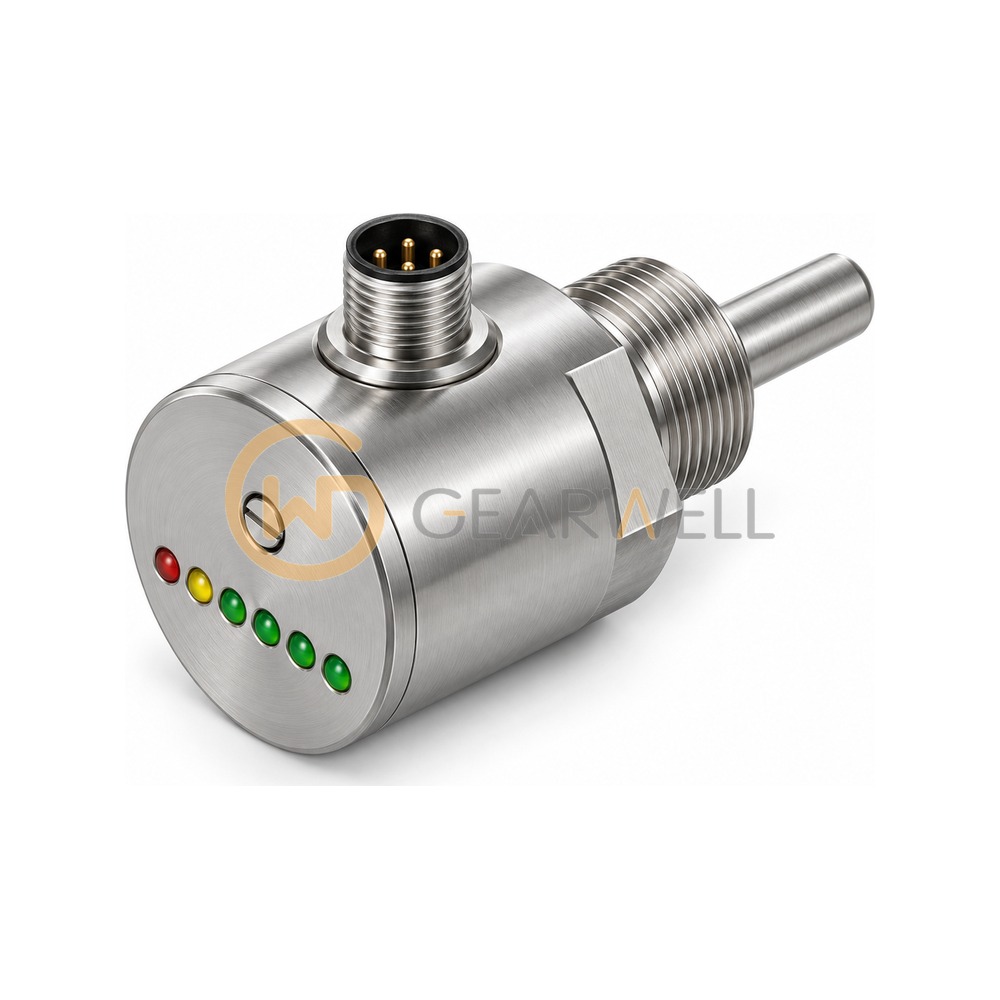

TURCK 6870004 FCS-G1/2A4-AP8X-H1141 Flow Monitoring Sensor
- Brand
- TURCK
- Model
- 6870004
- GEARWELL SKU
- GWP-000021647
- Category
- Pressure, Flow & Temperature
Key specifications
- Medium
- Liquids
- Order number
- 6870004
- Detection type
- Calorimetric, immersion
- Output function
- NO contact, PNP
- Housing material
- Stainless steel 1.4571 (AISI 316Ti)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | TURCK 6870004 FCS-G1/2A4-AP8X-H1141 Flow Monitoring Sensor |
|---|---|
| Brand | TURCK |
| Model | 6870004 |
| Category | Pressure, Flow & Temperature |
| Medium | Liquids |
| Order number | 6870004 |
| Detection type | Calorimetric, immersion |
| Output function | NO contact, PNP |
| Housing material | Stainless steel 1.4571 (AISI 316Ti) |
| Type designation | FCS-G1/2A4-AP8X-H1141 |
| Operating voltage | 19.2...28.8 VDC |
| Process connection | G 1/2" |
| Medium / ambient temperature | -20...+80 °C |
| Electrical connection / protection | Connector M12 x 1, IP67 |
