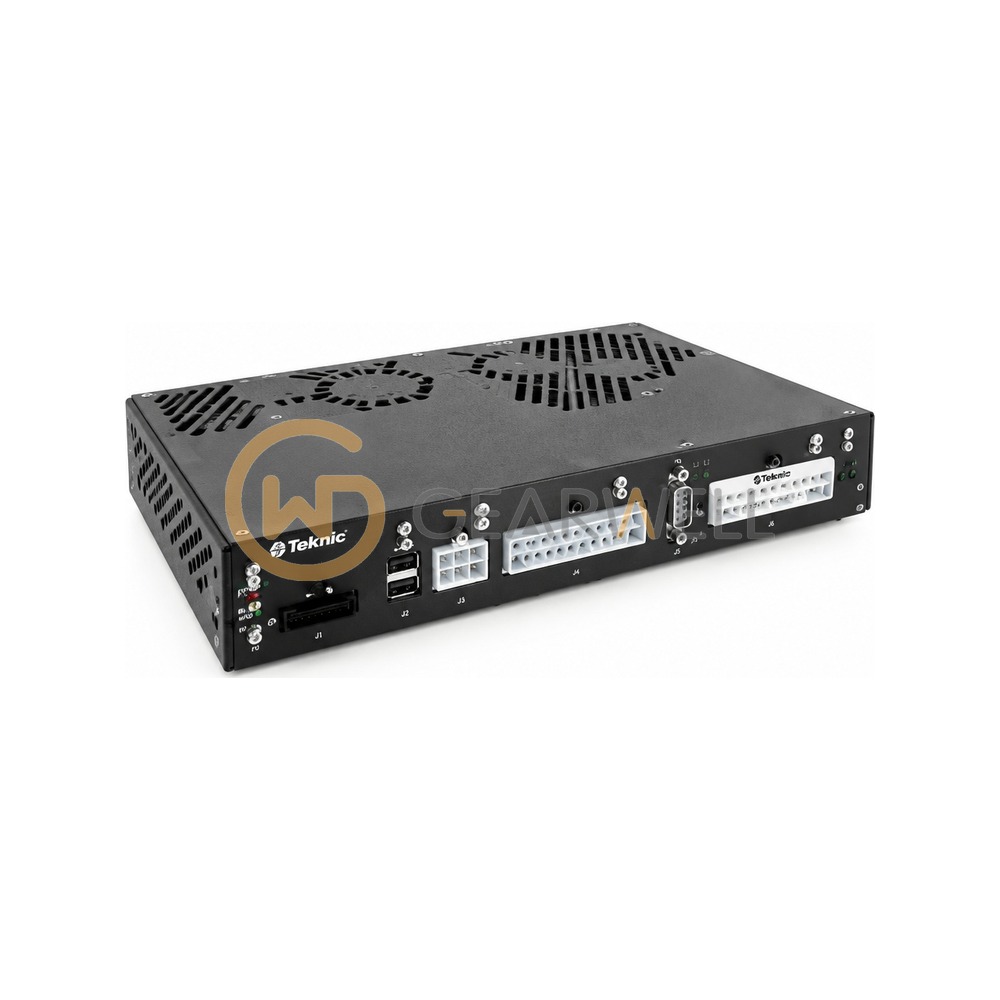

Teknic SST-1500-YCX-3-1-0 SSt-1500-Y Analog Torque-Mode Servo Drive
- Brand
- Teknic
- Model
- SST-1500-YCX-3-1-0
- GEARWELL SKU
- GWP-000034949
- Category
- Servo Systems
Key specifications
- Weight
- 494 g
- Evidence
- Teknic official legacy component page and SSt-1500-Y datasheet V1.1
- Brand note
- Collected/inferred brand "Molex" (SST prefix) is wrong: SSt-1500 drives are made by Teknic, Inc.
- Dimensions
- 185 x 124 x 29 mm
- Input supply
- 20-90 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Teknic SST-1500-YCX-3-1-0 SSt-1500-Y Analog Torque-Mode Servo Drive |
|---|---|
| Brand | Teknic |
| Model | SST-1500-YCX-3-1-0 |
| Category | Servo Systems |
| Weight | 494 g |
| Evidence | Teknic official legacy component page and SSt-1500-Y datasheet V1.1 |
| Brand note | Collected/inferred brand "Molex" (SST prefix) is wrong: SSt-1500 drives are made by Teknic, Inc. |
| Dimensions | 185 x 124 x 29 mm |
| Input supply | 20-90 VDC |
| Command input | ±10 V differential analog torque command |
| PWM frequency | 28 kHz |
| Output current | 23 A peak (3 s); 9 A RMS (11.5 A RMS with forced air) |
| Code suffix "-3-1-0" | as collected; not listed in the opened Teknic legacy table or datasheet |
| Encoder interface | Single-ended or differential, max. 15 MHz count rate |
| Teknic model family | SSt-1500-YCx: analog interface, torque-mode vector servo drive (1725 watts) |
| Operating temperature | 0-40 °C |
