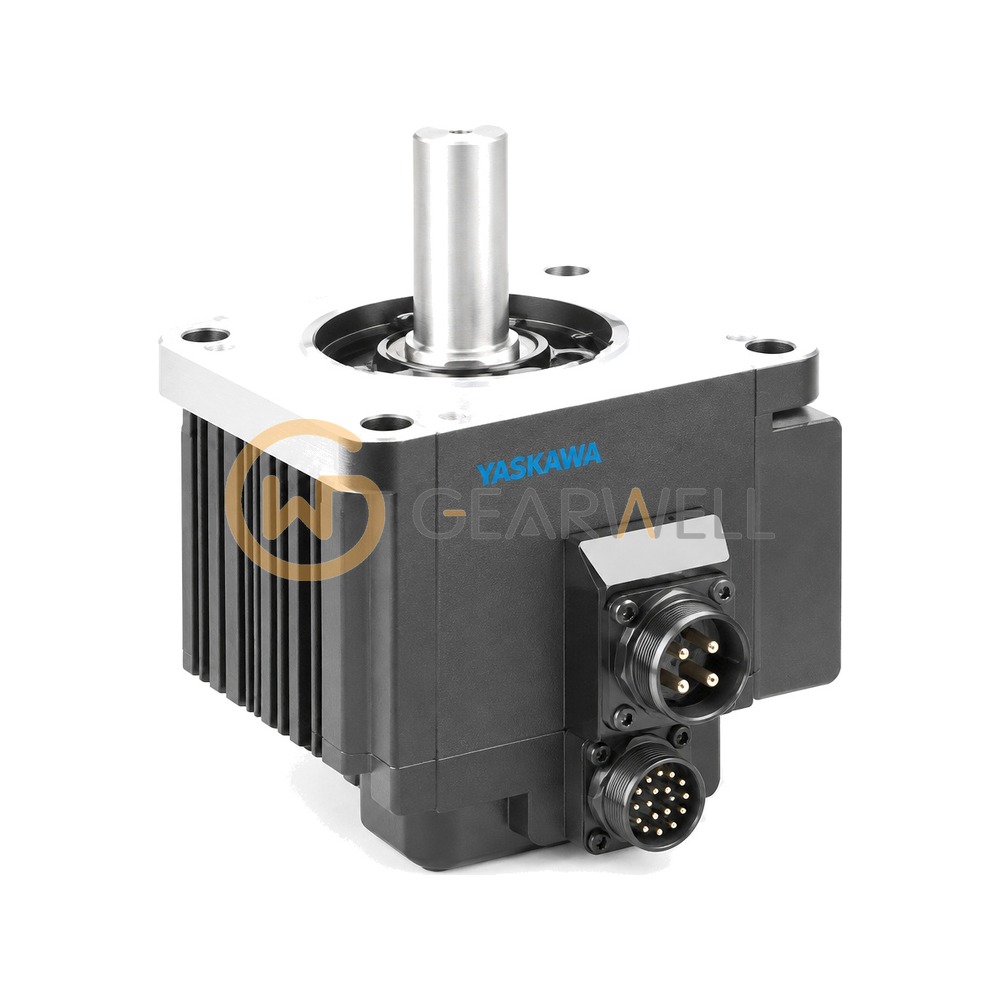

YASKAWA SGMG-09A2AB Sigma Series SGMG AC Servo Motor
- Brand
- YASKAWA
- Model
- SGMG-09A2AB
- GEARWELL SKU
- GWP-000035273
- Category
- Servo Systems
Key specifications
- Options
- None (standard, no brake/oil seal)
- Evidence
- Yaskawa manual TSE-S800-16E (SGMG/SGMS/SGMD/SGM/SGMP servomotors, SGDB Servopack), hosted at mroelectric.com; model code pp.19/224, ratings p.238, SERVOPACK pairing SGDB-10ADG p.103
- Rated torque
- 5.39 N·m
- Shaft (code B)
- Straight with key and one shaft-end tap
- Rated current
- 7.1 A rms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YASKAWA SGMG-09A2AB Sigma Series SGMG AC Servo Motor |
|---|---|
| Brand | YASKAWA |
| Model | SGMG-09A2AB |
| Category | Servo Systems |
| Options | None (standard, no brake/oil seal) |
| Evidence | Yaskawa manual TSE-S800-16E (SGMG/SGMS/SGMD/SGM/SGMP servomotors, SGDB Servopack), hosted at mroelectric.com; model code pp.19/224, ratings p.238, SERVOPACK pairing SGDB-10ADG p.103 |
| Rated torque | 5.39 N·m |
| Shaft (code B) | Straight with key and one shaft-end tap |
| Rated current | 7.1 A rms |
| Encoder (code 2) | 8192 P/R incremental |
| Rated speed (code A) | 1500 min-1 |
| Rated output (code 09) | 0.85 kW |
| Supply voltage (code A) | 200 V |
| Instantaneous peak torque | 13.8 N·m |
