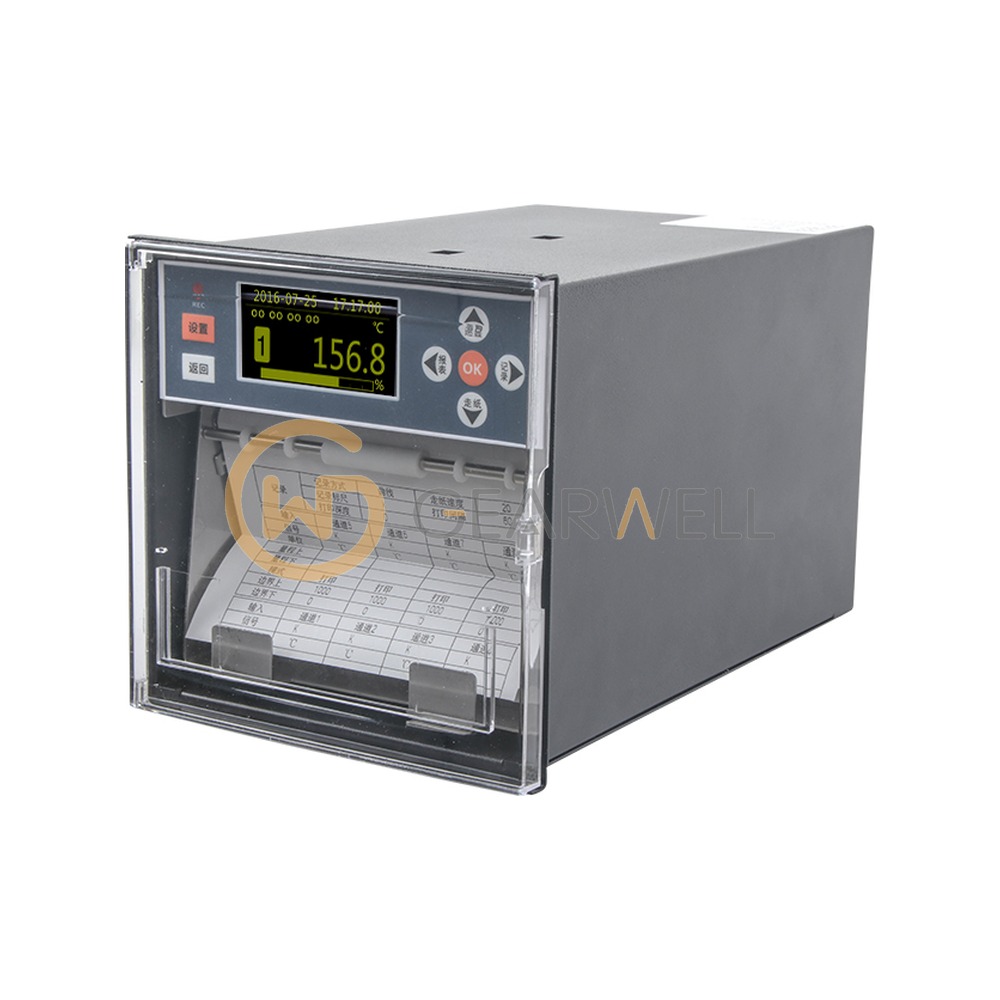

Supmea R1200-010000000E000XXXX R1200 Chart Recorder
- Brand
- Supmea
- Model
- R1200-010000000E000XXXX
- GEARWELL SKU
- GWP-000017016
- Category
- Test & Measurement
Key specifications
- Display
- OLED
- Recording
- Thermal printer, 832 dots within 104 mm
- Brand note
- collected as 美控 meacon; brand Supmea (杭州美仪, publisher of the SUP- ordering codes); meacon's store sells the same series with MIK- codes
- Code suffix
- 9 option digits before E0 (current datasheet has 11: isolation/transmitter/PID/comm/relay); trailing "XXXX" as collected, not listed in the official model-number table
- Input signals
- Universal: current, voltage, thermocouple, RTD
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Supmea R1200-010000000E000XXXX R1200 Chart Recorder |
|---|---|
| Brand | Supmea |
| Model | R1200-010000000E000XXXX |
| Category | Test & Measurement |
| Display | OLED |
| Recording | Thermal printer, 832 dots within 104 mm |
| Brand note | collected as 美控 meacon; brand Supmea (杭州美仪, publisher of the SUP- ordering codes); meacon's store sells the same series with MIK- codes |
| Code suffix | 9 option digits before E0 (current datasheet has 11: isolation/transmitter/PID/comm/relay); trailing "XXXX" as collected, not listed in the official model-number table |
| Input signals | Universal: current, voltage, thermocouple, RTD |
| Input channels | 1 |
| Input channel code | 01 |
| Power supply (code E0) | 220 VAC, no 24 VDC distribution output |
