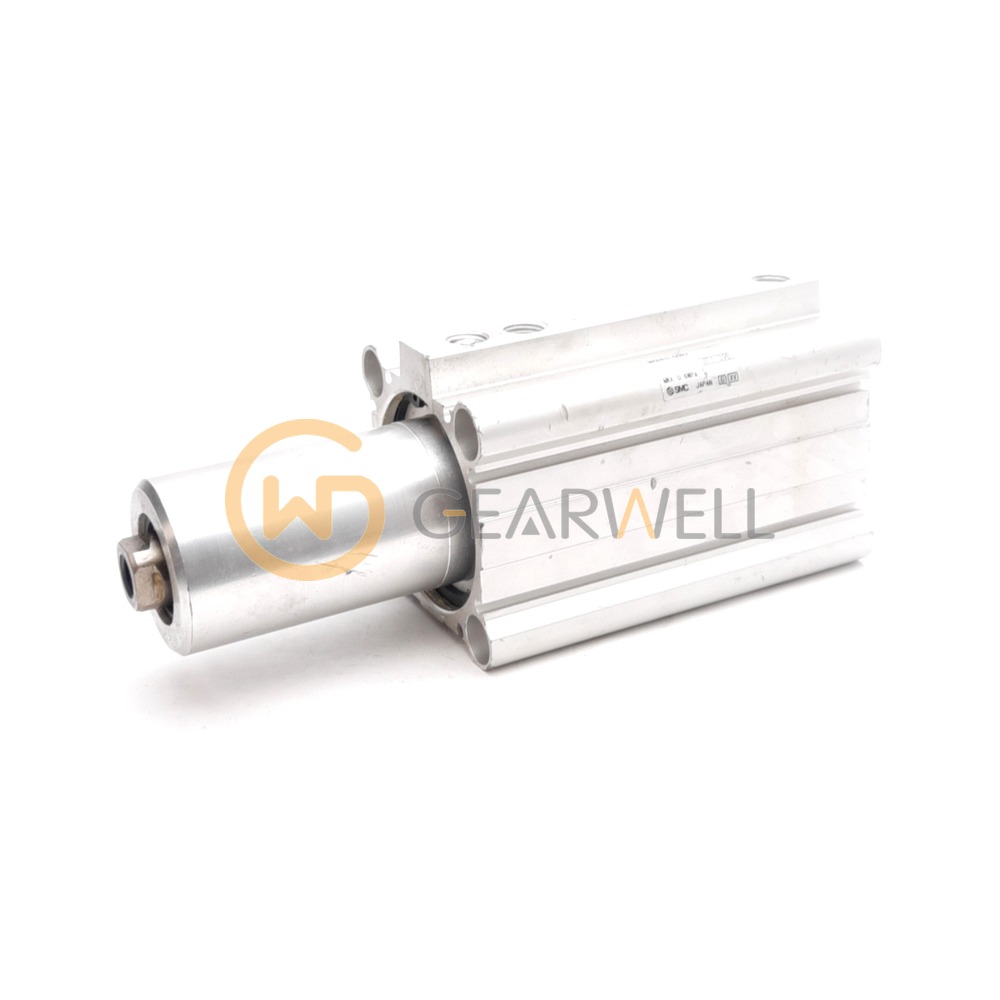

SMC MKB63-50RZ Rotary Clamp Cylinder
- Brand
- SMC
- Model
- MKB63-50RZ
- GEARWELL SKU
- GWP-000003283
- Category
- Cylinders & Actuators
Key specifications
- Mounting
- Through-hole/both ends tapped
- Auto switch
- None (built-in magnet)
- Clamp stroke
- 50 mm
- Bore diameter
- 63 mm
- Rotary direction
- Right
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC MKB63-50RZ is an MK series rotary clamp cylinder in 63 mm bore with a 50 mm clamp stroke. The rod turns 90° ±10° clockwise (unclamp to clamp) before it pulls down, and the theoretical clamp force is 1400 N at 0.5 MPa. It has the through-hole/both-ends-tapped basic mount, Rc port threads, a rubber bumper and a built-in magnet for auto switches, which are ordered separately; the arm is not included. The piston speed must be held at 50 to 200 mm/s with a speed controller.
Technical reference
| Product name | SMC MKB63-50RZ Rotary Clamp Cylinder |
|---|---|
| Brand | SMC |
| Model | MKB63-50RZ |
| Category | Cylinders & Actuators |
| Mounting | Through-hole/both ends tapped |
| Auto switch | None (built-in magnet) |
| Clamp stroke | 50 mm |
| Bore diameter | 63 mm |
| Rotary direction | Right |
