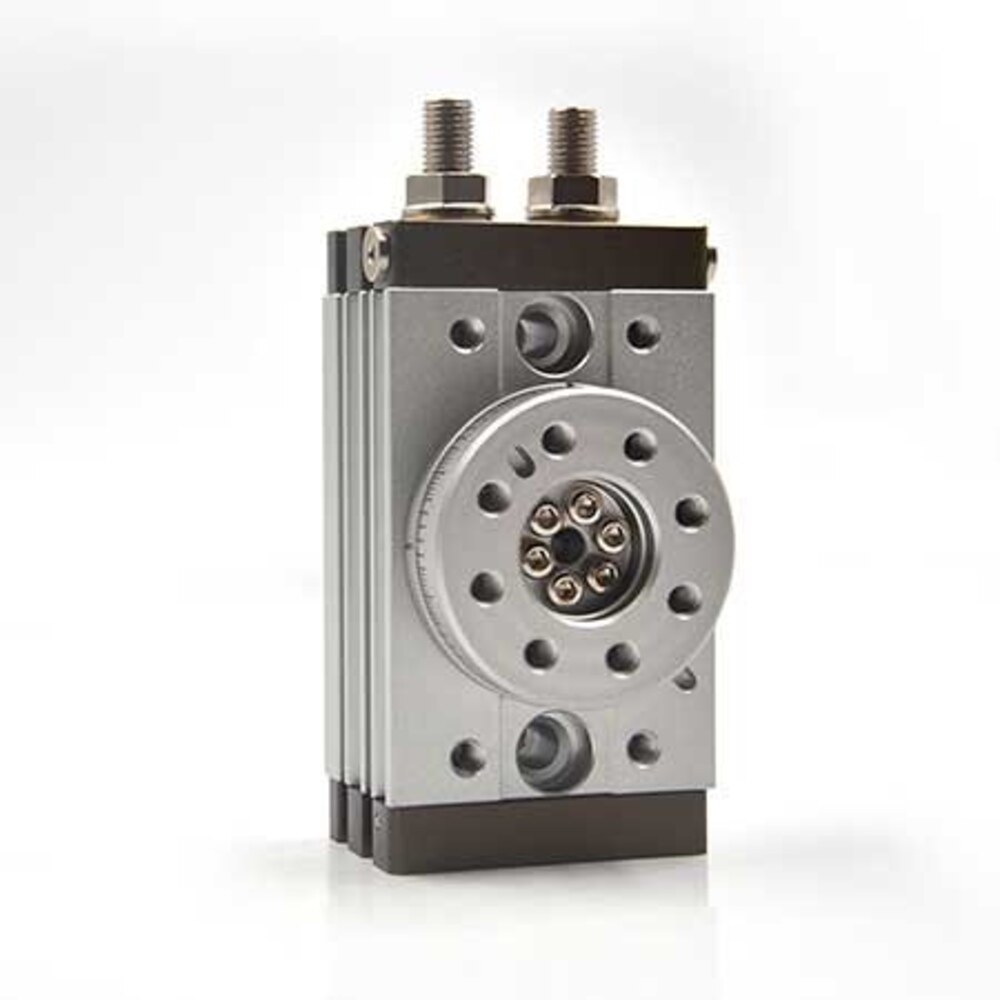

SMC MSQB-10A Rotary Actuator
- Brand
- SMC
- Model
- MSQB-10A
- GEARWELL SKU
- GWP-000002308
- Category
- Industrial Automation Parts
Key specifications
- Size
- 10
- Fluid
- Air, non-lube
- Product type
- Basic rotary table, rack-and-pinion type
- Cylinder bore
- 15 mm
- Angle adjustment range
- 0–190°
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC MSQB10A is an MSQ series rack and pinion rotary table, basic type, size 10, with angle adjustment bolts. The rotation can be set anywhere from 0 to 190° and the cushioning is by rubber bumpers. It uses a 15 mm cylinder bore, M5 x 0.8 ports and a built-in magnet for auto switches (none supplied). It runs on non-lubricated air from 0.1 MPa up to 1 MPa, accepts a kinetic energy of 0.007 J and weighs 500 g.
Technical reference
| Product name | SMC MSQB-10A Rotary Actuator |
|---|---|
| Brand | SMC |
| Model | MSQB-10A |
| Category | Industrial Automation Parts |
| Size | 10 |
| Fluid | Air, non-lube |
| Product type | Basic rotary table, rack-and-pinion type |
| Cylinder bore | 15 mm |
| Angle adjustment range | 0–190° |
| Ambient and fluid temperature | 0–60 °C, no freezing |
| Maximum operating pressure | 1 MPa |
| Minimum operating pressure | 0.1 MPa |
