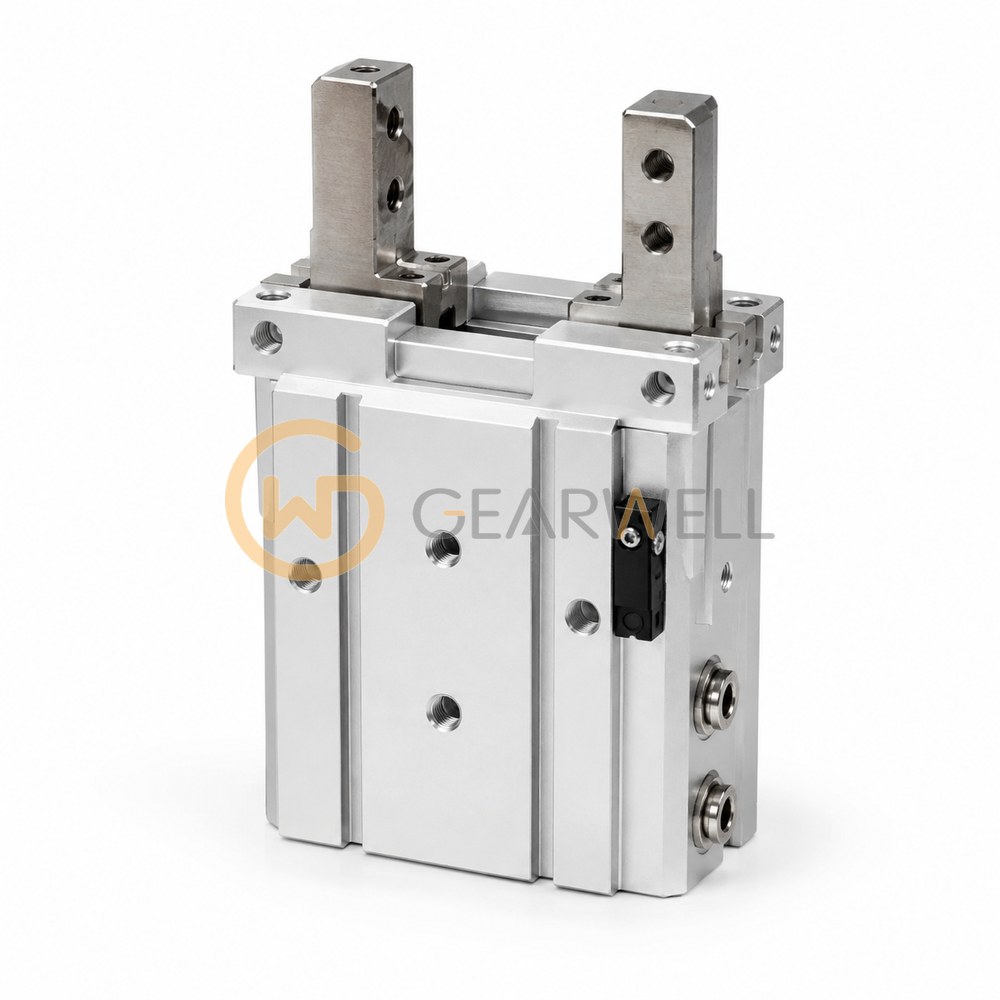

SMC MHZ2-25D-M9B Pneumatic Grippers
- Brand
- SMC
- Model
- MHZ2-25D-M9B
- GEARWELL SKU
- GWP-000000022
- Category
- Industrial Automation Parts
Key specifications
- Action
- Double Acting
- Bore Size
- Bore Size 25 mm
- Auto Switch
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Body Option
- Basic Type
- Product description
- MHZ2 Series Air Gripper Parallel Style Linear guide Type Standard Type Bore SizeΦ10-25
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC MHZ2-25D-M9B is an MHZ2 series parallel style air gripper with two fingers, a 25 mm bore and double action, supplied with two solid state auto switches (M9B, 2-wire, 0.5 m lead wire). Per finger it gives an effective gripping force of 65 N external and 104 N internal at 0.5 MPa, and the opening/closing stroke is 14 mm across both sides. It operates from 0.1 to 0.7 MPa with a repeatability of ±0.01mm and up to 180 c.p.m. The gripper weighs 430 g without auto switches and has M5 ports.
Technical reference
| Product name | SMC MHZ2-25D-M9B Pneumatic Grippers |
|---|---|
| Brand | SMC |
| Model | MHZ2-25D-M9B |
| Category | Industrial Automation Parts |
| Action | Double Acting |
| Bore Size | Bore Size 25 mm |
| Auto Switch | Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V) |
| Body Option | Basic Type |
| Product description | MHZ2 Series Air Gripper Parallel Style Linear guide Type Standard Type Bore SizeΦ10-25 |
| Finger Position/Option | Standard Basic Type |
