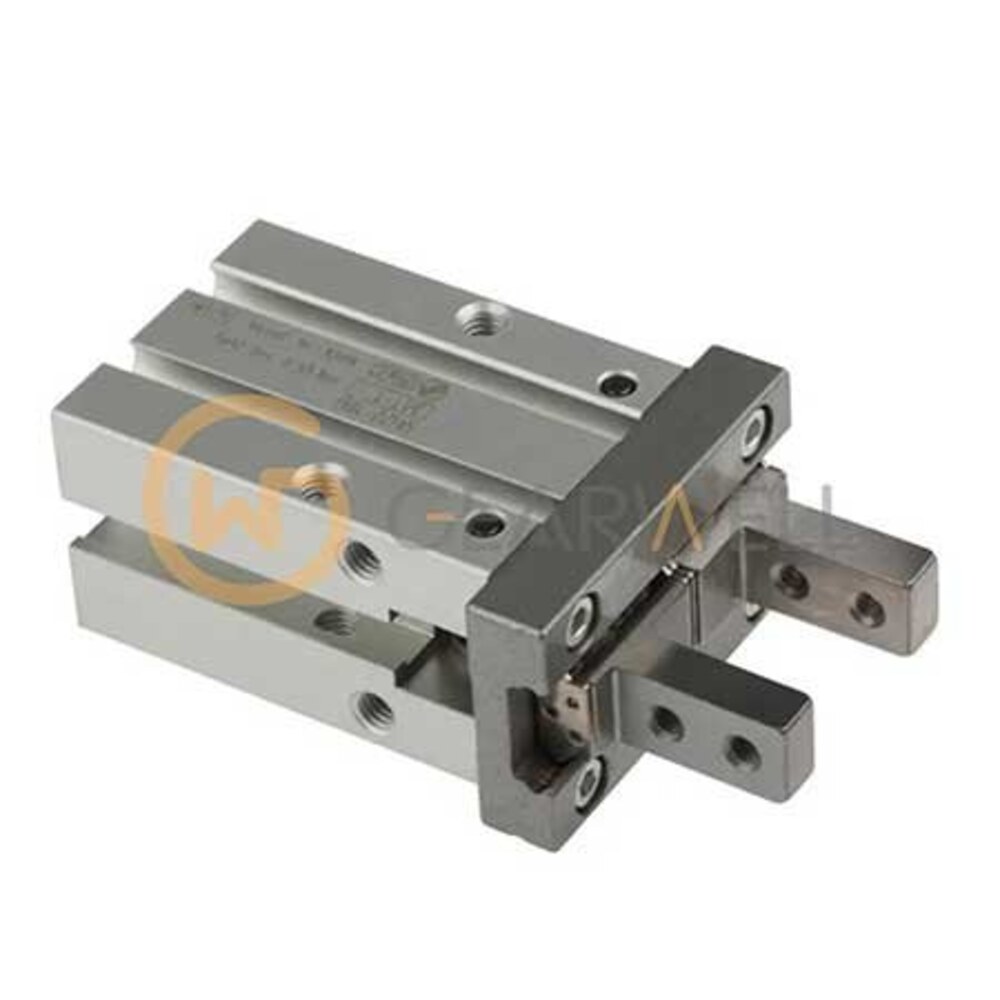

SMC MHZ2-16D 2 Finger Gripper
- Brand
- SMC
- Model
- MHZ2-16D
- GEARWELL SKU
- GWP-000001687
- Category
- Industrial Automation Parts
Key specifications
- Action
- Double Acting
- Bore Size
- Bore Size 16 mm
- Auto Switch
- Without Auto Switch
- Body Option
- Basic Type
- Product description
- MHZ2 Series Air Gripper Parallel Style Linear guide Type Standard Type Bore SizeΦ10-25
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC MHZ2-16D is an MHZ2 series parallel-type air gripper with 2 fingers, 16 mm bore and double acting operation, in the basic body with standard fingers and side ports. Gripping force per finger is 34 N external and 45 N internal at 0.5 MPa with a 20 mm gripping point, and the opening/closing stroke is 6 mm. It works from 0.1 to 0.7 MPa at up to 180 c.p.m. with a repeatability of ±0.01 mm, needs no lubrication and weighs 115 g. A built-in magnet is fitted for solid state auto switches, which are ordered separately.
Technical reference
| Product name | SMC MHZ2-16D 2 Finger Gripper |
|---|---|
| Brand | SMC |
| Model | MHZ2-16D |
| Category | Industrial Automation Parts |
| Action | Double Acting |
| Bore Size | Bore Size 16 mm |
| Auto Switch | Without Auto Switch |
| Body Option | Basic Type |
| Product description | MHZ2 Series Air Gripper Parallel Style Linear guide Type Standard Type Bore SizeΦ10-25 |
| Finger Position/Option | Standard Basic Type |
