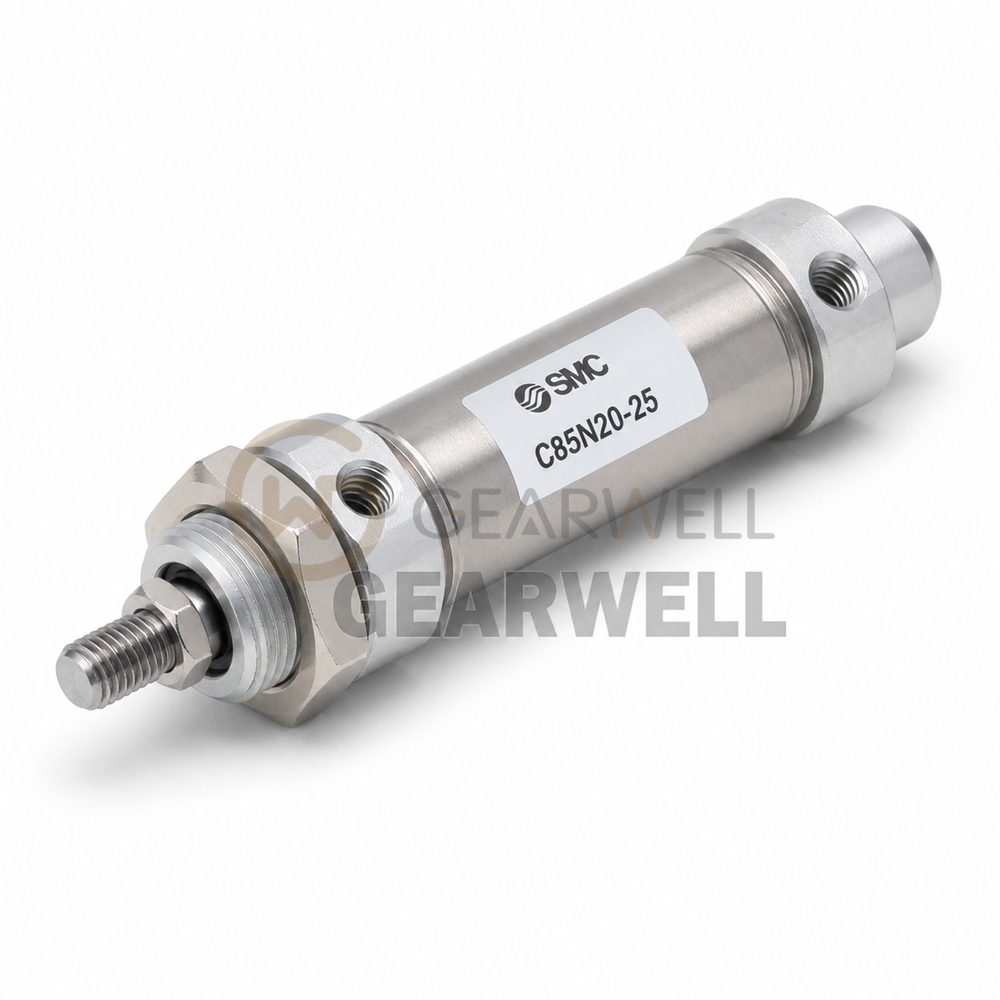

SMC C85N20-25 Cylinder
- Brand
- SMC
- Model
- C85N20-25
- GEARWELL SKU
- GWP-000000289
- Category
- Industrial Automation Parts
Key specifications
- Cushion
- Rubber Bumper (Standard)
- Rod Boot
- Without Rod Boot
- Bore Size
- Bore Size 20 mm
- Auto Switch
- Without Auto Switch
- Cylinder Stroke
- Standard Stroke 25 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC C85N20-25 is a C85 series ISO standard round air cylinder, double acting with a single rod, in 20 mm bore and 25 mm stroke. The head cover is the basic type with an integrated clevis, the cushion is the standard rubber bumper and there is no built-in magnet. The maximum operating pressure is 1.0 MPa, the proof pressure 1.5 MPa and the piston speed range 50 to 1500 mm/s, with an allowable kinetic energy of 0.27 J. It needs no lubrication.
Technical reference
| Product name | SMC C85N20-25 Cylinder |
|---|---|
| Brand | SMC |
| Model | C85N20-25 |
| Category | Industrial Automation Parts |
| Cushion | Rubber Bumper (Standard) |
| Rod Boot | Without Rod Boot |
| Bore Size | Bore Size 20 mm |
| Auto Switch | Without Auto Switch |
| Cylinder Stroke | Standard Stroke 25 mm |
| Product description | C85 Series ISO Standards Air Cylinder: Standard/Double Acting, Single Rod |
