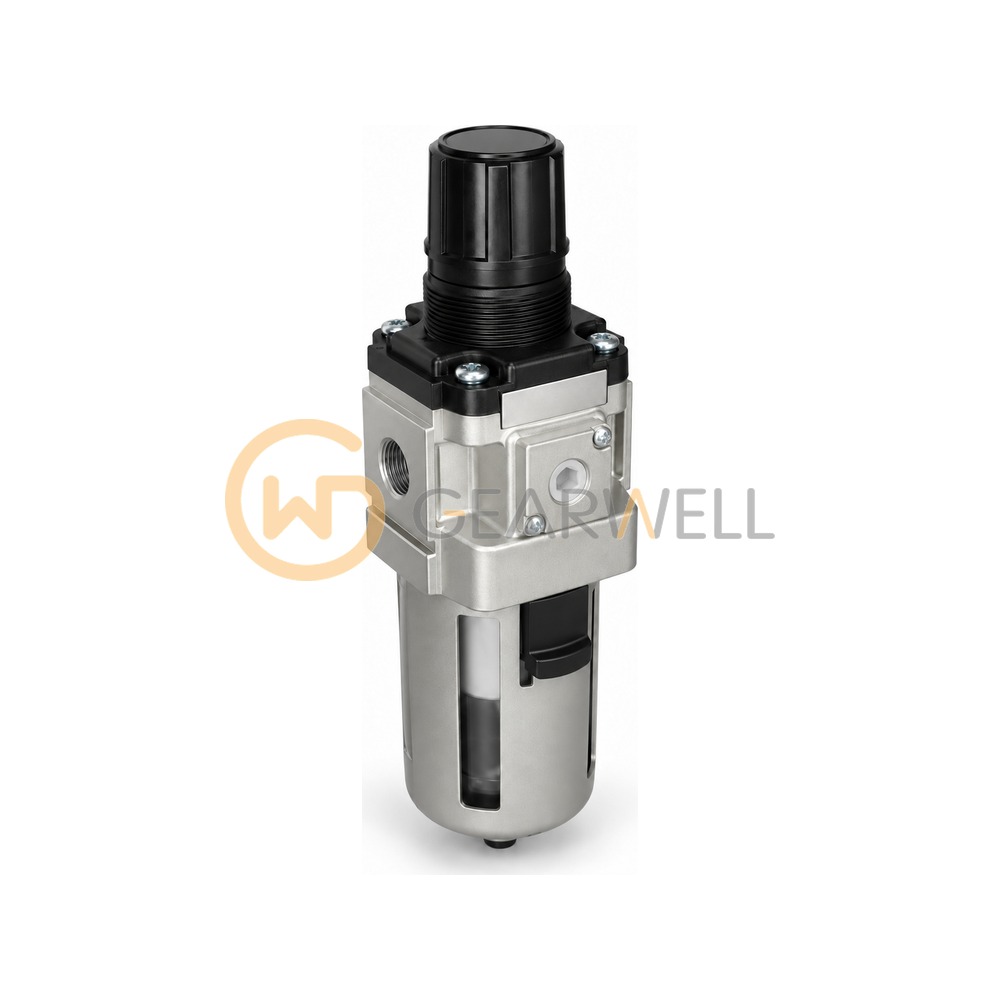

SMC AW40-DUQ00636 AW Series Modular Filter Regulator
- Brand
- SMC
- Model
- AW40-DUQ00636
- GEARWELL SKU
- GWP-000015211
- Category
- Air Preparation
Key specifications
- Body size
- 40
- Proof pressure
- 1.5 MPa
- Port size options
- 1/4 / 3/8 / 1/2 (specify on order)
- Set pressure range
- 0.05 to 0.85 MPa
- Code suffix "-DUQ00636"
- as collected; not listed in the official model-number table
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SMC AW40-DUQ00636 AW Series Modular Filter Regulator |
|---|---|
| Brand | SMC |
| Model | AW40-DUQ00636 |
| Category | Air Preparation |
| Body size | 40 |
| Proof pressure | 1.5 MPa |
| Port size options | 1/4 / 3/8 / 1/2 (specify on order) |
| Set pressure range | 0.05 to 0.85 MPa |
| Code suffix "-DUQ00636" | as collected; not listed in the official model-number table |
| Nominal filtration rating | 5 um |
| Maximum operating pressure | 1.0 MPa |
| Ambient and fluid temperature | -5 to 60 (no freezing) °C |
