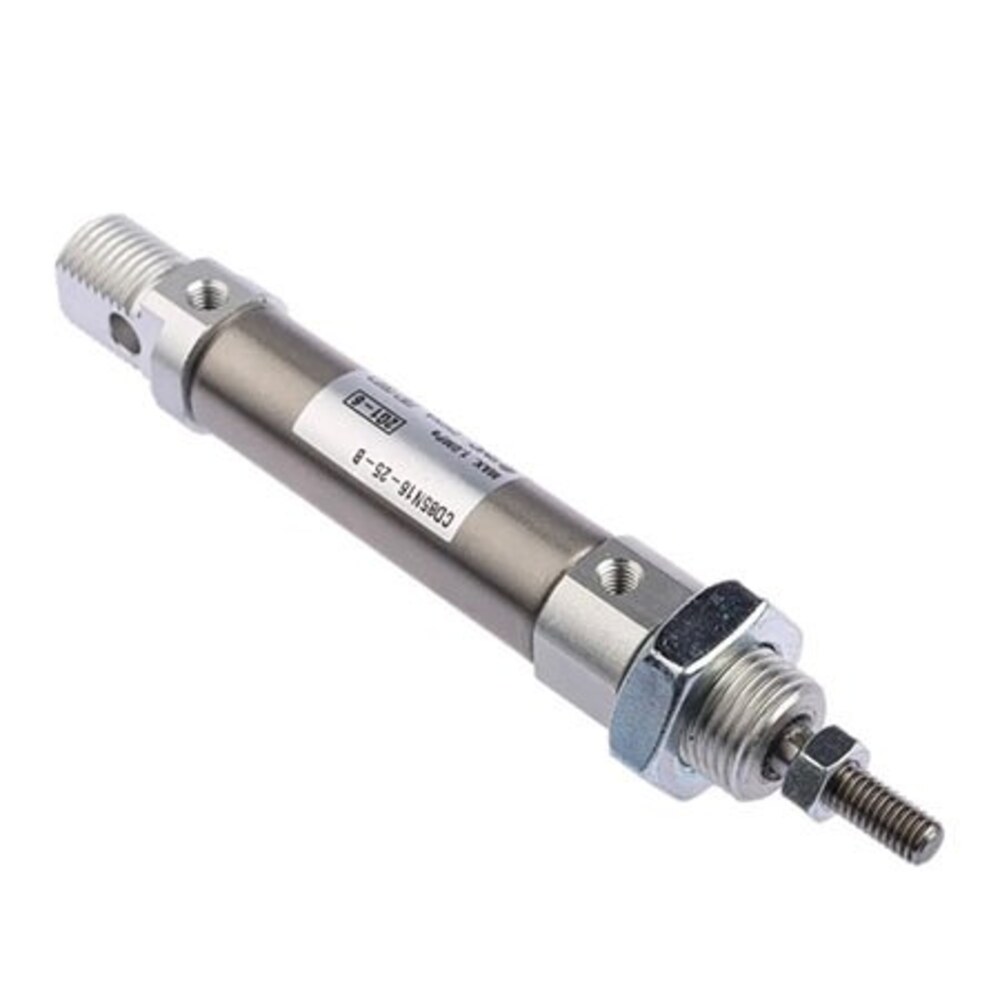

SMC CD85N16-25C-B Standardised Cylinder
- Brand
- SMC
- Model
- CD85N16-25C-B
- GEARWELL SKU
- GWP-000003650
- Category
- Industrial Automation Parts
Key specifications
- Cushion
- Air Cushion
- Rod Boot
- Without Rod Boot
- Bore Size
- Bore Size 16 mm
- Auto Switch
- Without Auto Switch
- Cylinder Stroke
- Standard Stroke 25 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC CD85N16-25C-B is a C85 series ISO standard air cylinder with a 16 mm bore and a 25 mm stroke, double acting with a single rod. This version has a built-in magnet, the basic integral clevis mounting, air cushions, and band mounting for auto switches (switches and bands are ordered separately). It has a 6 mm piston rod with an M6 x 1 thread and M5 x 0.8 ports. The maximum operating pressure is 1.0 MPa, the piston speed range is 50 to 1500 mm/s, and the temperature range with the built-in magnet is –10 to 60°C.
Technical reference
| Product name | SMC CD85N16-25C-B Standardised Cylinder |
|---|---|
| Brand | SMC |
| Model | CD85N16-25C-B |
| Category | Industrial Automation Parts |
| Cushion | Air Cushion |
| Rod Boot | Without Rod Boot |
| Bore Size | Bore Size 16 mm |
| Auto Switch | Without Auto Switch |
| Cylinder Stroke | Standard Stroke 25 mm |
| Product description | C85 Series ISO Standards Air Cylinder: Standard/Double Acting, Single Rod |
