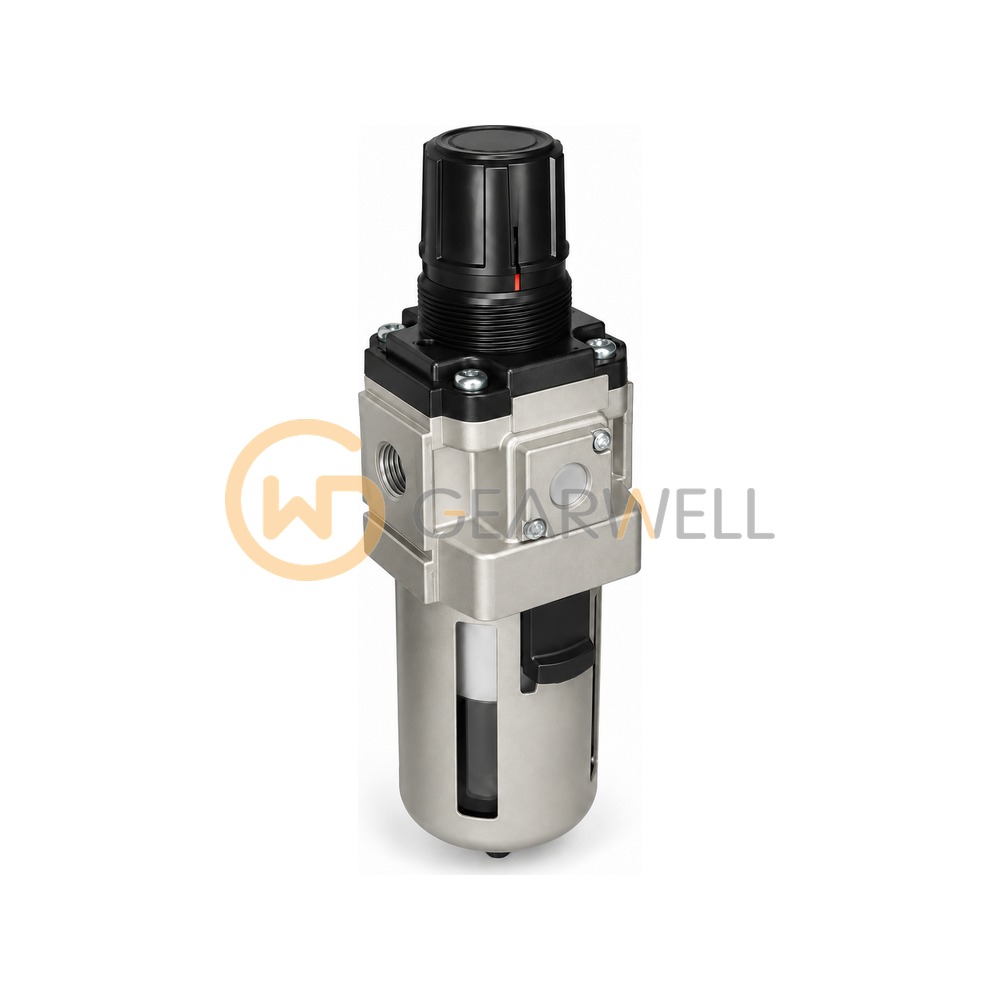

SMC AW20-02BCG AW10-60 Series Modular Filter Regulator
- Brand
- SMC
- Model
- AW20-02BCG
- GEARWELL SKU
- GWP-000015209
- Category
- Air Preparation
Key specifications
- Option a
- With Bracket (code B)
- Body Size
- Body Size (code 20)
- Port Size
- 1/4 (code 02)
- Thread Type
- Metric Thread (M5)/Rc
- Semi-Standard a
- 0.05 to 0.85 MPa Setting, Polycarbonate bowl;X406:0.05 To 0.4MPa Setting;X425:0.1 To 1.7MPa Setting
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SMC AW20-02BCG AW10-60 Series Modular Filter Regulator |
|---|---|
| Brand | SMC |
| Model | AW20-02BCG |
| Category | Air Preparation |
| Option a | With Bracket (code B) |
| Body Size | Body Size (code 20) |
| Port Size | 1/4 (code 02) |
| Thread Type | Metric Thread (M5)/Rc |
| Semi-Standard a | 0.05 to 0.85 MPa Setting, Polycarbonate bowl;X406:0.05 To 0.4MPa Setting;X425:0.1 To 1.7MPa Setting |
| Semi-Standard b | Drain Guide 1/8 or 1/4, Relieving Type, Name Plate, Flow Direction: Left to Right, Caution Plate For Bowl And Pressure Gauge In Imperial Units: Mpa |
| Production status | Discontinued since 12/2014, Replacement series:AW20-AW40-D |
| With Backflow Function | Without Backflow Function |
