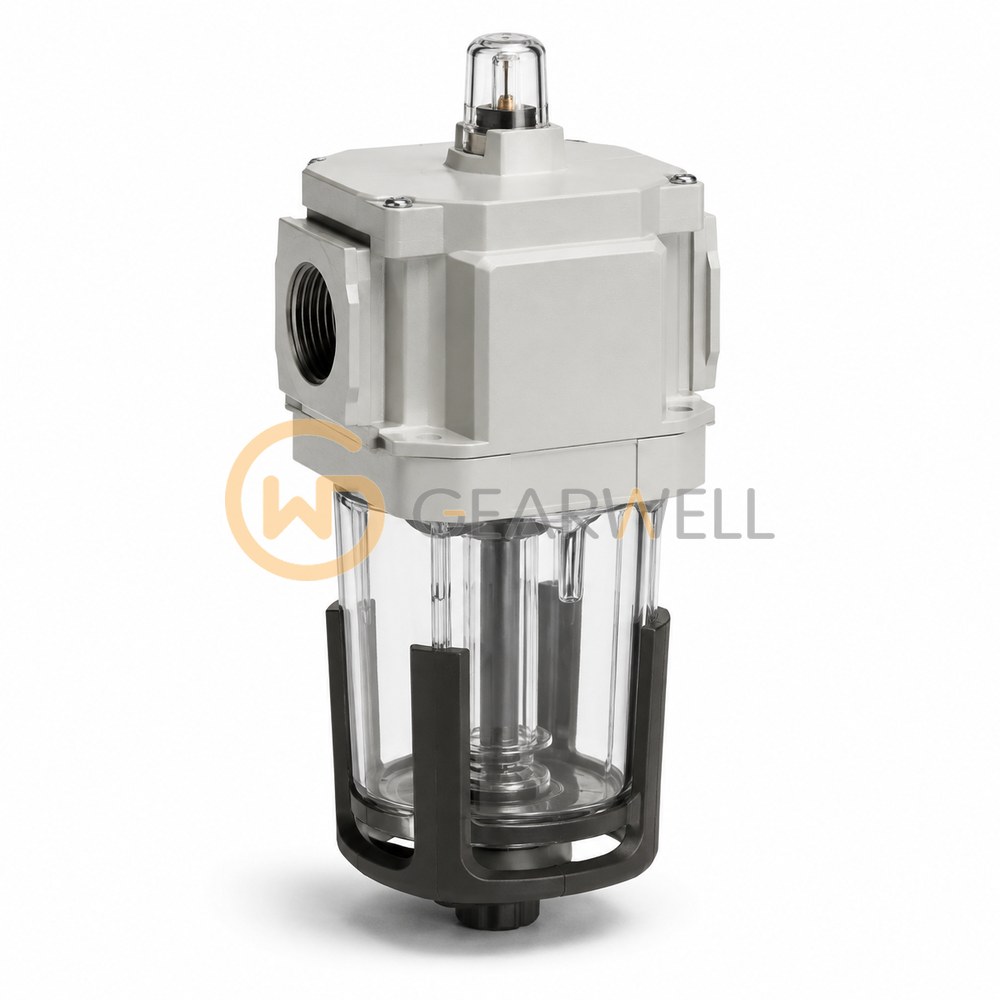

SMC AL800-12 LUBRICATOR
- Brand
- SMC
- Model
- AL800-12
- GEARWELL SKU
- GWP-000004279
- Category
- Industrial Automation Parts
Key specifications
- Body Size
- 1 1/2
- Port Size
- 1 1/4
- Thread Type
- Rc
- Product description
- AL800-900 Series Large Flow Lubricator
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC AL800-12 is an AL800 series large flow lubricator with Rc 1 1/4 ports. It has a 440 cm3 polycarbonate bowl with a bowl guard, and the recommended oil is turbine oil class 1 (ISO VG32). The maximum operating pressure is 1.0 MPa with a proof pressure of 1.5 MPa, and the minimum operating flow at this port size is 460 L/min (ANR). It is rated for -5 to 60 C and weighs 1.62 kg.
Technical reference
| Product name | SMC AL800-12 LUBRICATOR |
|---|---|
| Brand | SMC |
| Model | AL800-12 |
| Category | Industrial Automation Parts |
| Body Size | 1 1/2 |
| Port Size | 1 1/4 |
| Thread Type | Rc |
| Product description | AL800-900 Series Large Flow Lubricator |
