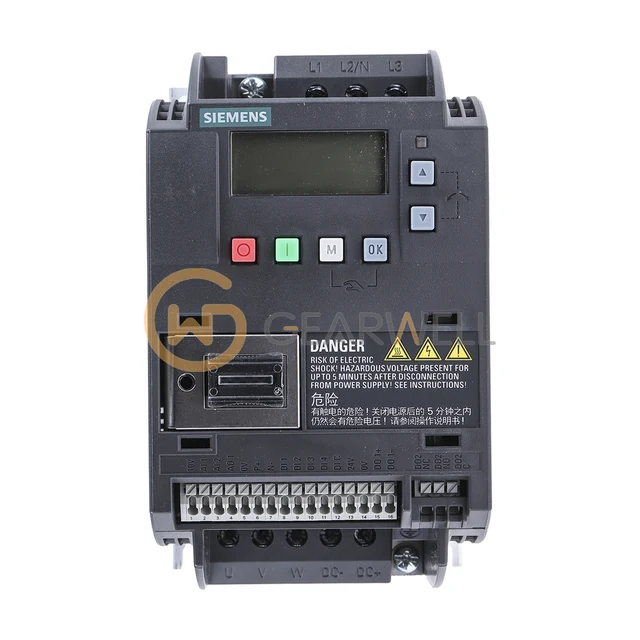

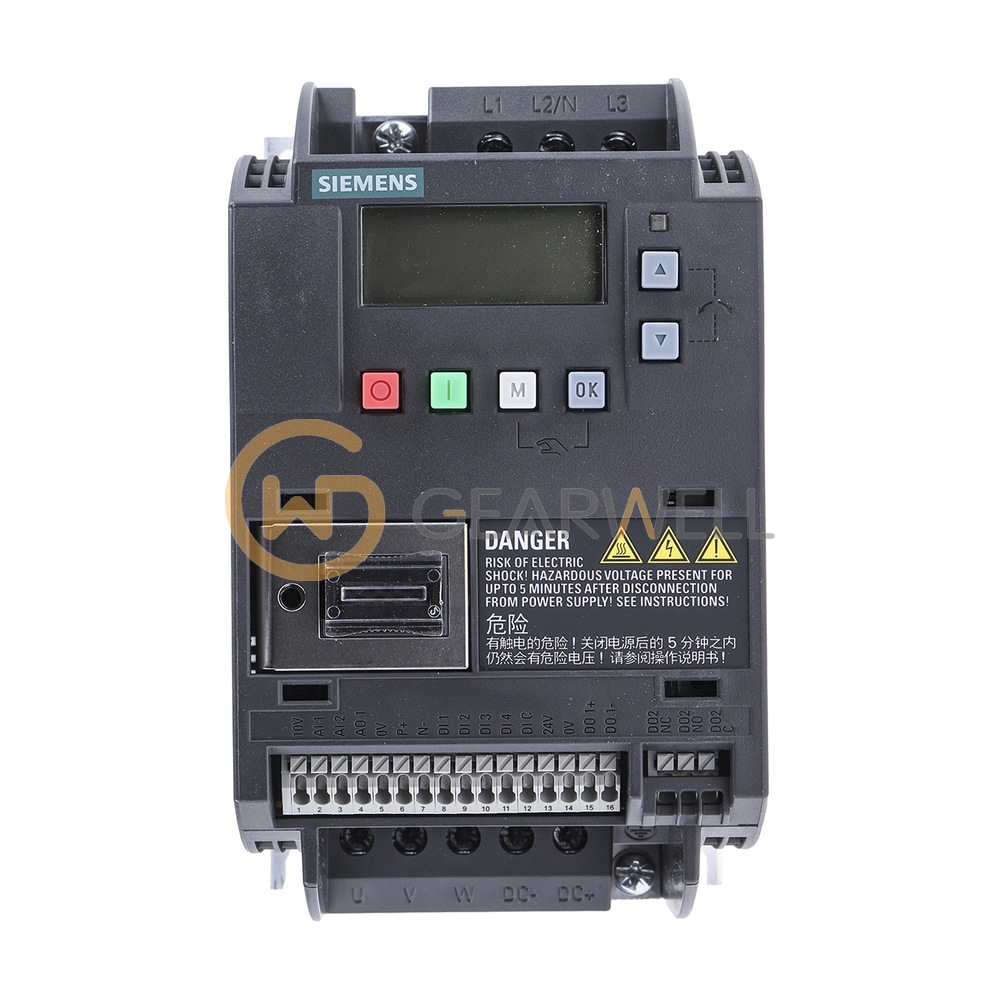

Siemens 6SL3210-5BE13-7UV0 SINAMICS V20 AC Drive
- Brand
- Siemens
- Model
- 6SL3210-5BE13-7UV0
- GEARWELL SKU
- GWP-000006910
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- FSA
- Motor power
- 0.37 kW
- Input voltage
- 380–480 V AC, three-phase
- Protection rating
- IP20
- Rated output current
- 1.3 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Siemens 6SL3210-5BE13-7UV0 is a SINAMICS V20 basic converter for a 380…480 V three-phase supply, rated 0.37 kW (0.5 hp) on the low-overload current IL of 1.3 A at 400 V and 1.3 A at 480 V (110 % for 60 s within 300 s), or 0.37 kW (0.5 hp) on the high-overload current IH, with a rated input current of 1.7 A. It is frame size FSA, is cooled without a fan and has no integrated line filter. The V20 delivers 0…550 Hz output frequency at a pulse frequency of 2…16 kHz and offers four isolated digital inputs, two analog inputs that can also be used as digital inputs, a 0…20 mA analog output, a transistor output and a relay output. An integrated RS485 port supports USS and Modbus RTU, and the V20 is efficiency class IE2 to IEC 61800-9-2.
Technical reference
| Product name | Siemens 6SL3210-5BE13-7UV0 SINAMICS V20 AC Drive |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-5BE13-7UV0 |
| Category | Variable Frequency Drives |
| Frame size | FSA |
| Motor power | 0.37 kW |
| Input voltage | 380–480 V AC, three-phase |
| Protection rating | IP20 |
| Rated output current | 1.3 A |
