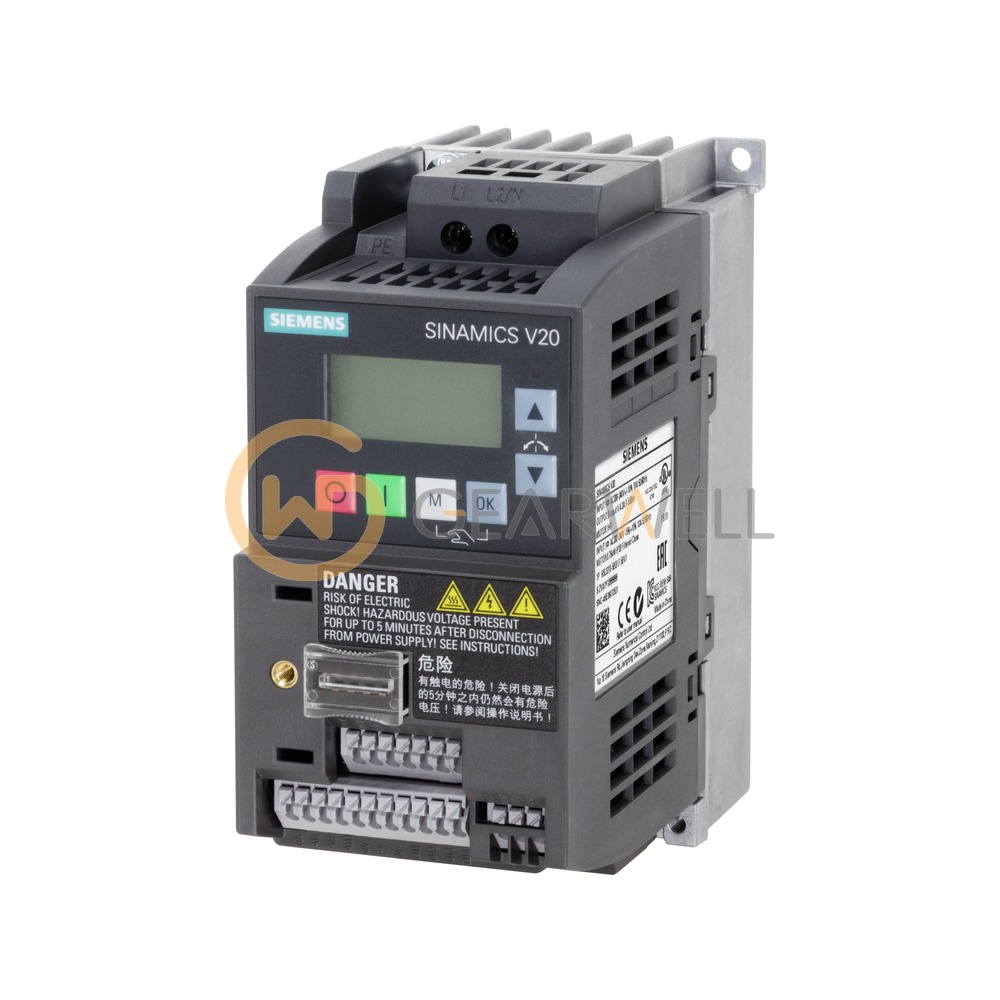

Siemens 6SL3210-5BB17-5UV1 SINAMICS V20 Basic Converter
- Brand
- Siemens
- Model
- 6SL3210-5BB17-5UV1
- GEARWELL SKU
- GWP-000010985
- Category
- Variable Frequency Drives
Key specifications
- I/O
- 4 DI, 2 DO, 2 AI, 1 AO
- Frame size
- FSAB
- Line filter
- Unfiltered
- Rated power
- 0.75 kW
- Input voltage
- 1 AC 200-240 V, 47-63 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Siemens 6SL3210-5BB17-5UV1 is a SINAMICS V20 basic converter for a 200…240 V single-phase supply, rated 0.75 kW (1 hp) with an output current of 4.2 A based on the high-overload duty cycle (150 % for 60 s within 300 s), with a rated input current of 10 A. It is frame size FSAB, is cooled without a fan and has no integrated line filter. The V20 delivers 0…550 Hz output frequency at a pulse frequency of 2…16 kHz and offers four isolated digital inputs, two analog inputs that can also be used as digital inputs, a 0…20 mA analog output, a transistor output and a relay output. An integrated RS485 port supports USS and Modbus RTU, and the V20 is efficiency class IE2 to IEC 61800-9-2.
Technical reference
| Product name | Siemens 6SL3210-5BB17-5UV1 SINAMICS V20 Basic Converter |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-5BB17-5UV1 |
| Category | Variable Frequency Drives |
| I/O | 4 DI, 2 DO, 2 AI, 1 AO |
| Frame size | FSAB |
| Line filter | Unfiltered |
| Rated power | 0.75 kW |
| Input voltage | 1 AC 200-240 V, 47-63 Hz |
| Degree of protection | IP20 |
