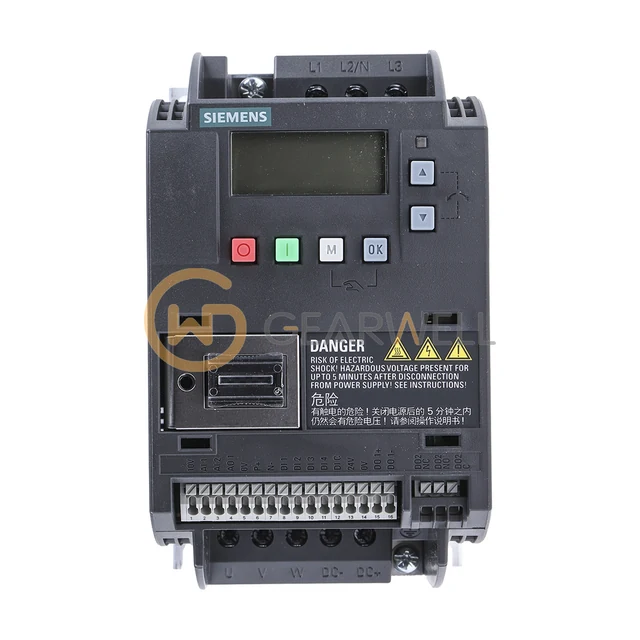

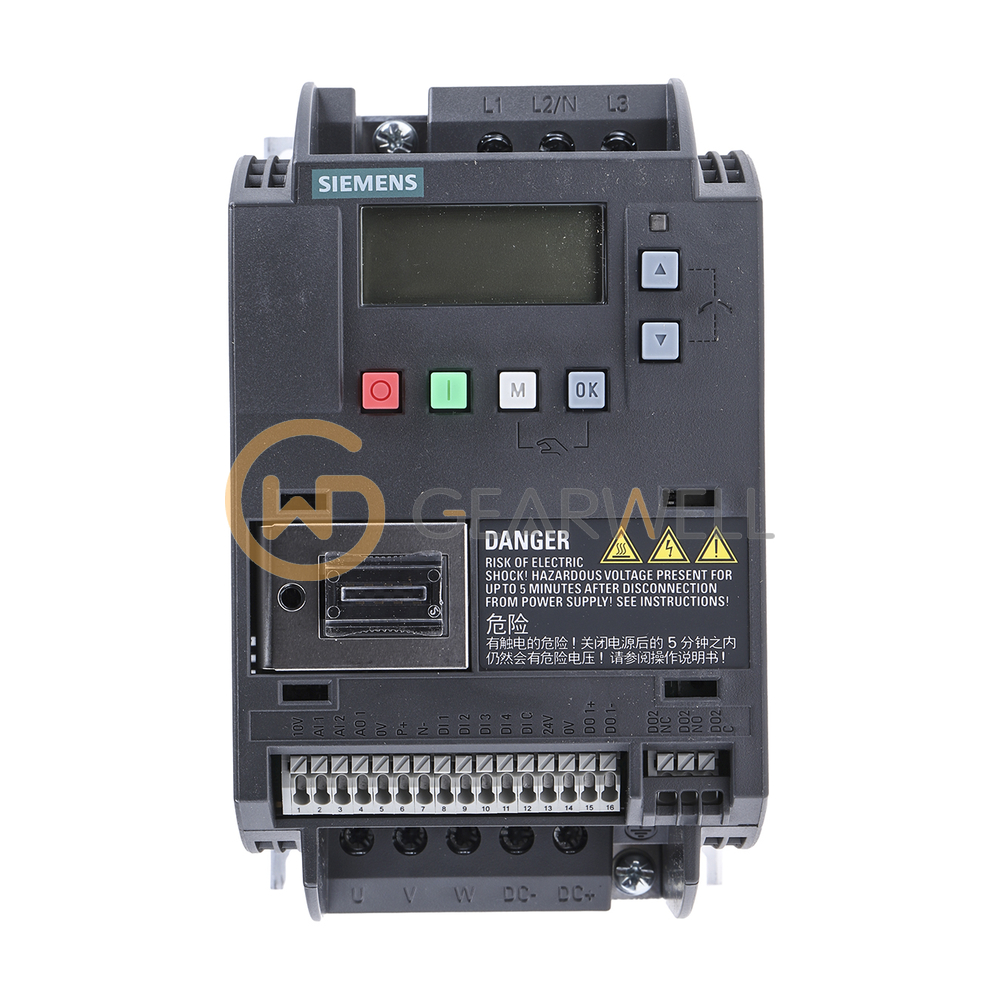

Siemens 6SL3210-5BE17-5UV0 SINAMICS V20 AC Drive

Product overview

The Siemens 6SL3210-5BE17-5UV0 is a SINAMICS V20 basic converter for a 380…480 V three-phase supply, rated 0.75 kW (1 hp) on the low-overload current IL of 2.2 A at 400 V and 2.2 A at 480 V (110 % for 60 s within 300 s), or 0.75 kW (1 hp) on the high-overload current IH, with a rated input current of 2.6 A. It is frame size FSA, is cooled without a fan and has no integrated line filter. The V20 delivers 0…550 Hz output frequency at a pulse frequency of 2…16 kHz and offers four isolated digital inputs, two analog inputs that can also be used as digital inputs, a 0…20 mA analog output, a transistor output and a relay output. An integrated RS485 port supports USS and Modbus RTU, and the V20 is efficiency class IE2 to IEC 61800-9-2.
