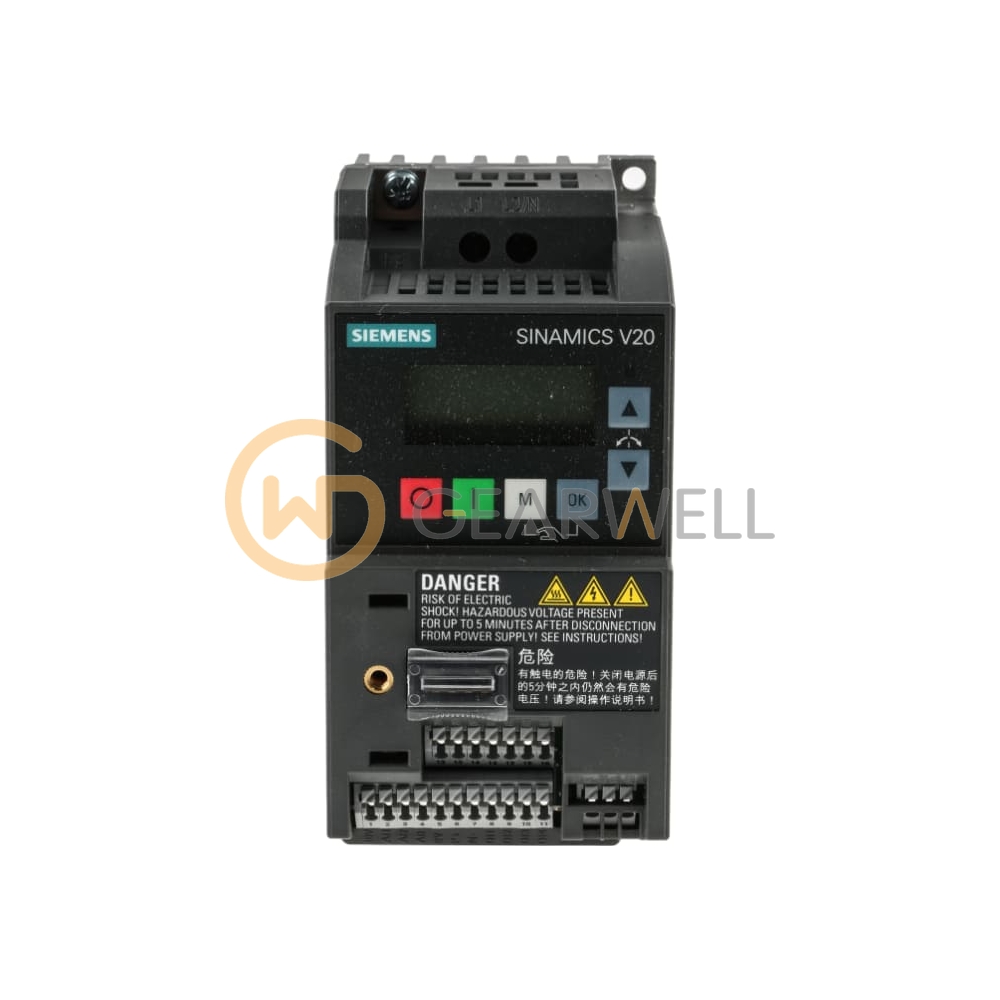

Siemens 6SL3210-5BB13-7UV1 SINAMICS V20 AC Drive
- Brand
- Siemens
- Model
- 6SL3210-5BB13-7UV1
- GEARWELL SKU
- GWP-000006904
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- FSAA
- Input supply
- 200-240 V, single-phase AC
- Rated motor power
- 0.37 kW
- Rated output current
- 2.3 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Siemens 6SL3210-5BB13-7UV1 is a SINAMICS V20 basic converter for a 200…240 V single-phase supply, rated 0.37 kW (0.5 hp) with an output current of 2.3 A based on the high-overload duty cycle (150 % for 60 s within 300 s), with a rated input current of 6.2 A. It is frame size FSAA, is cooled without a fan and has no integrated line filter. The V20 delivers 0…550 Hz output frequency at a pulse frequency of 2…16 kHz and offers four isolated digital inputs, two analog inputs that can also be used as digital inputs, a 0…20 mA analog output, a transistor output and a relay output. An integrated RS485 port supports USS and Modbus RTU, and the V20 is efficiency class IE2 to IEC 61800-9-2.
Technical reference
| Product name | Siemens 6SL3210-5BB13-7UV1 SINAMICS V20 AC Drive |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-5BB13-7UV1 |
| Category | Variable Frequency Drives |
| Frame size | FSAA |
| Input supply | 200-240 V, single-phase AC |
| Rated motor power | 0.37 kW |
| Rated output current | 2.3 A |
