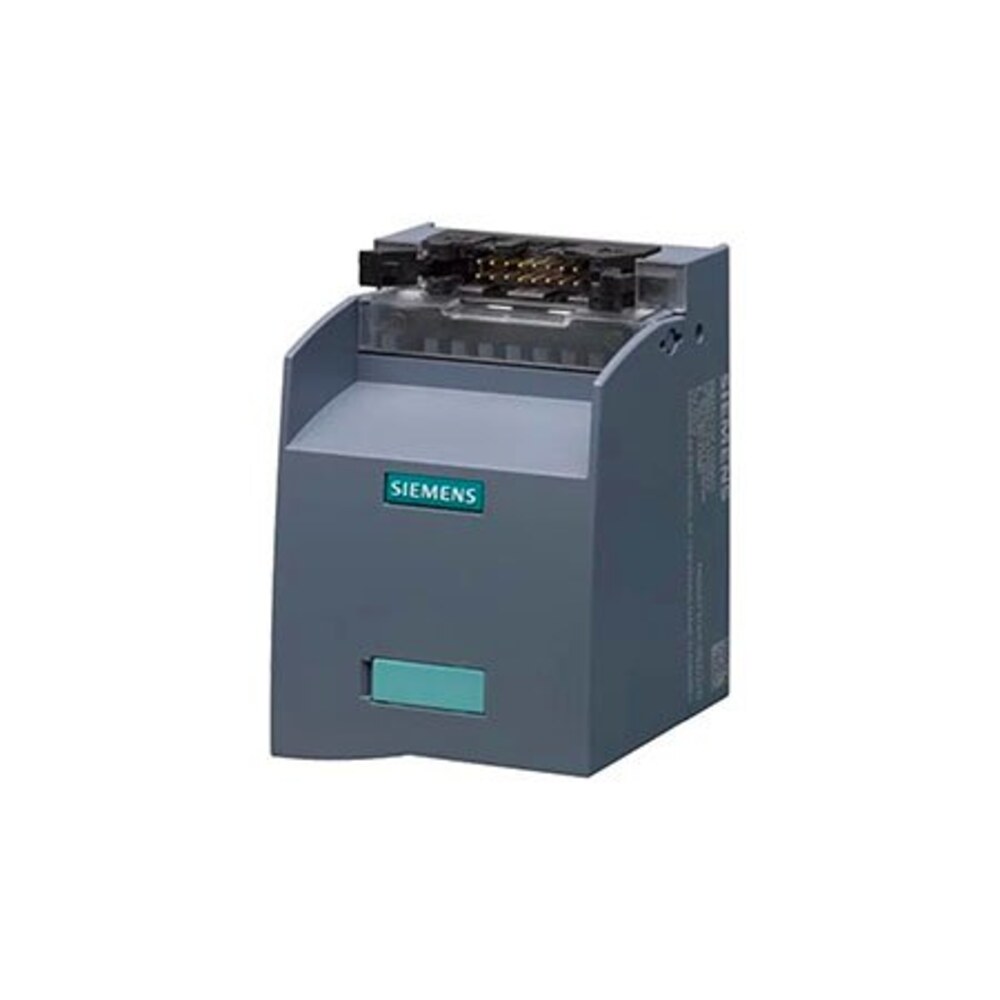

Siemens 6ES7924-0CA20-0AC0 TOP connect TP3 8-Channel Push-In Connection Module

Key specifications

Dimensions and mounting: 57 × 76 × 60 mm (W × H × D); mounts on 35 mm or 15 mm DIN rail.
net weight: 0.1 kg
System cable interface: 1 × 16-pole IDC connection with strain relief; 30 m maximum between front connector and connection module.
Voltage and current limits: 24 V DC rated supply; 50 V DC maximum. 1 A continuous DC maximum per signal cable; 4 A maximum total. Specifications apply at the rated 24 V DC input and +25 °C ambient unless otherwise specified.
Signal arrangement: 8 digital I/O channels for 3-wire connection, without signal LEDs.

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Siemens 6ES7924-0CA20-0AC0 TOP connect TP3 8-Channel Push-In Connection Module
Brand	Siemens
Model	6ES7924-0CA20-0AC0
Category	Industrial Automation Parts
Dimensions and mounting	57 × 76 × 60 mm (W × H × D); mounts on 35 mm or 15 mm DIN rail.
net weight	0.1 kg
System cable interface	1 × 16-pole IDC connection with strain relief; 30 m maximum between front connector and connection module.
Voltage and current limits	24 V DC rated supply; 50 V DC maximum. 1 A continuous DC maximum per signal cable; 4 A maximum total. Specifications apply at the rated 24 V DC input and +25 °C ambient unless otherwise specified.
Signal arrangement	8 digital I/O channels for 3-wire connection, without signal LEDs.
Product description	TOP connect TP3 connection module for eight three-wire digital channels, with push-in terminals and without signal LEDs.
Field terminals	28 push-in terminals: 8 I/O, 10 L+ and 10 M connections.
product type designation	Fully modular connection
mechanical data — height / with lowest-profile installation	60 mm
connection method — for flexible conductor / with core end processing	0.2 ... 2.5 mm²; End sleeve according to DIN 46228/1 or DIN 46228/4 with plastic collar
