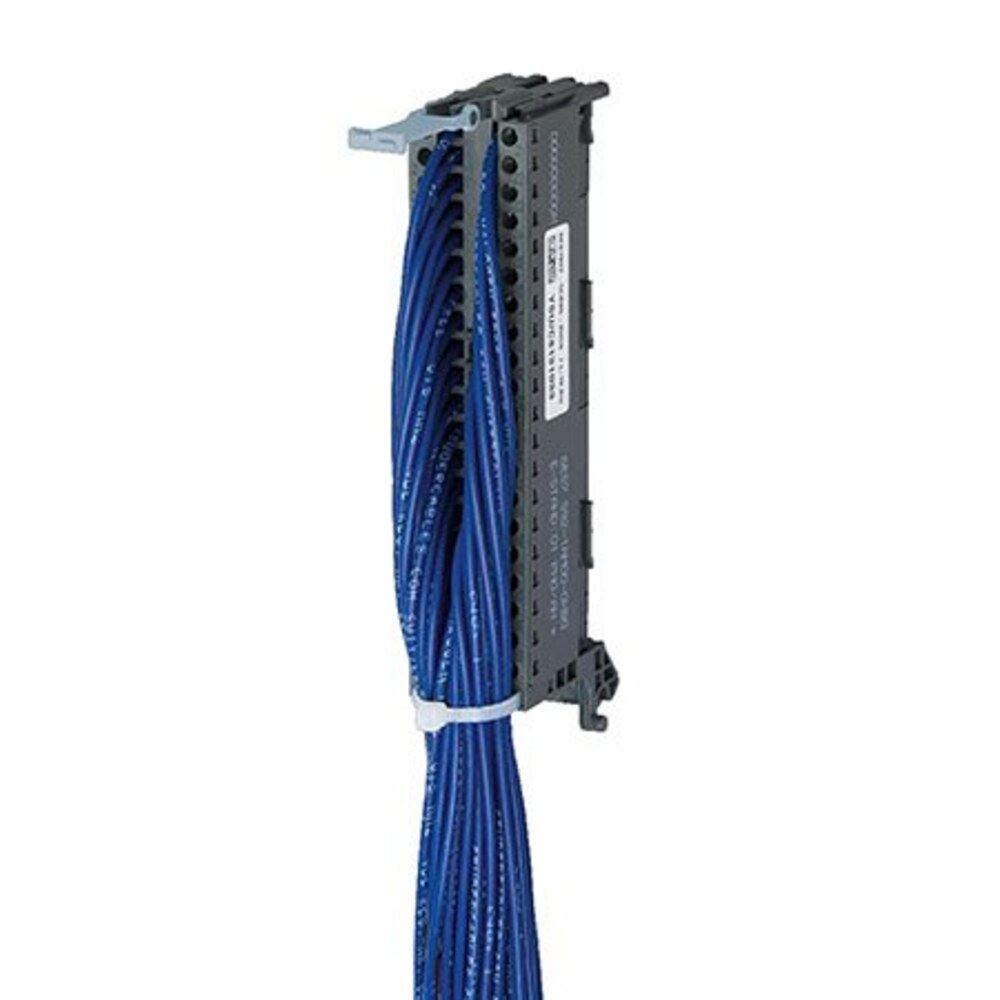

Siemens 6ES7922-5BD20-0AC0 S7-1500 40-Core 3.2 m Prewired Front Connector
- Brand
- Siemens
- Model
- 6ES7922-5BD20-0AC0
- GEARWELL SKU
- GWP-000003163
- Category
- Industrial Automation Parts
Key specifications
- net weight
- 1.54 kg
- Wire length
- 3.2 m.
- Permissible continuous current
- 1.5 A continuous DC maximum with all cores loaded simultaneously. Specifications apply at the rated 24 V DC input and +25 °C ambient unless otherwise specified.
- Prewired assembly
- 40-pole front connector with 40 individual H05V-K cores, 0.5 mm² each, numbered 1 to 40.
- connector type
- 6ES7592-1AM00-0XB0
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 6ES7922-5BD20-0AC0 S7-1500 40-Core 3.2 m Prewired Front Connector |
|---|---|
| Brand | Siemens |
| Model | 6ES7922-5BD20-0AC0 |
| Category | Industrial Automation Parts |
| net weight | 1.54 kg |
| Wire length | 3.2 m. |
| Permissible continuous current | 1.5 A continuous DC maximum with all cores loaded simultaneously. Specifications apply at the rated 24 V DC input and +25 °C ambient unless otherwise specified. |
| Prewired assembly | 40-pole front connector with 40 individual H05V-K cores, 0.5 mm² each, numbered 1 to 40. |
| connector type | 6ES7592-1AM00-0XB0 |
| Connector termination | Screw-terminal version using connector 6ES7592-1AM00-0XB0. |
| Operating voltage | 24 V DC rated; 30 V DC maximum. |
| Product description | S7-1500 40-pole screw-terminal front connector assembly with forty numbered 0.5 mm² H05V-K cores, 3.2 m long. |
| product type designation | Flexible connection |
