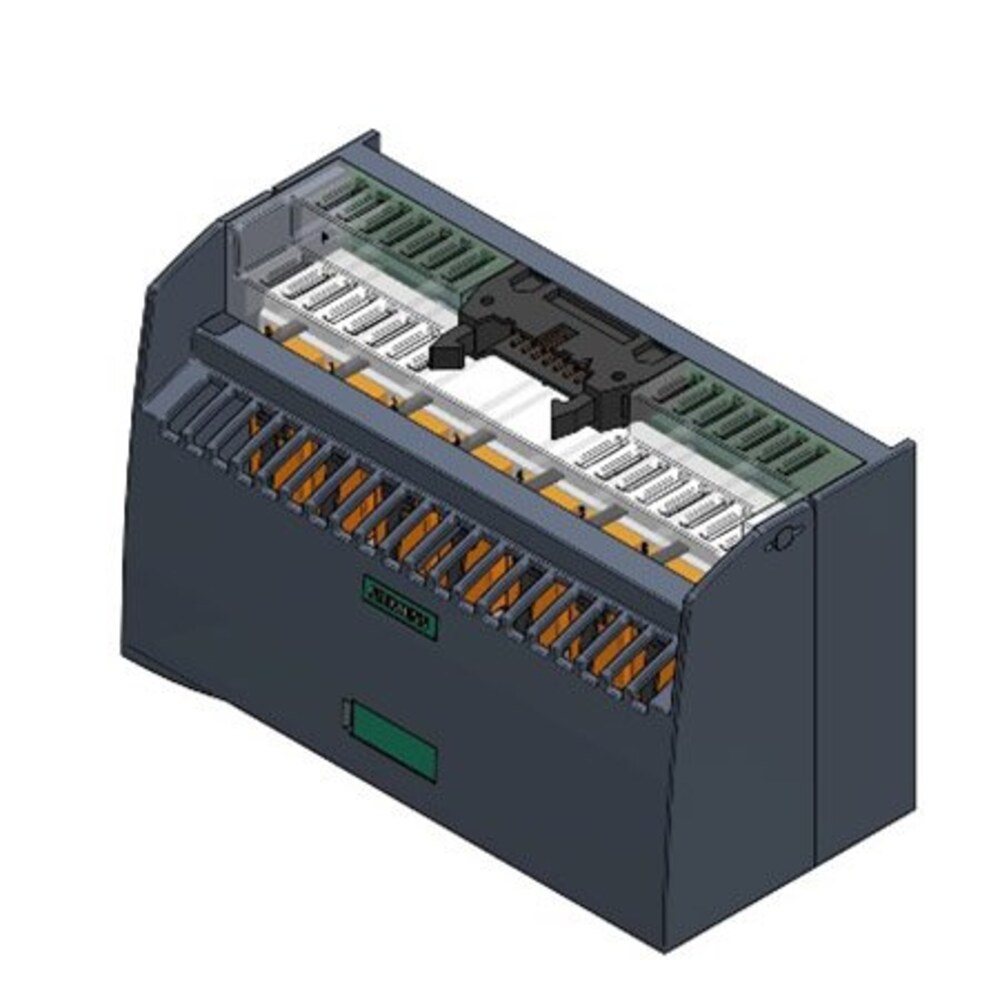

Siemens 6ES7924-0BE20-0BC0 TOP connect TPRi 230 V AC Relay Connection Module

Key specifications

Dimensions and mounting: 130 × 76 × 60 mm (W × H × D); mounts on 35 mm or 15 mm DIN rail.
net weight: 0.32 kg
Application: SIMATIC TOP connect relay interface for S7-300 / S7-1500 digital input circuits.
System cable interface: 1 × 16-pole IDC connection with strain relief; 30 m maximum between front connector and connection module.
Product description: TOP connect TPRi relay connection module with 230 V AC coils, eight normally-open contacts, push-in terminals and status LEDs.

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Siemens 6ES7924-0BE20-0BC0 TOP connect TPRi 230 V AC Relay Connection Module
Brand	Siemens
Model	6ES7924-0BE20-0BC0
Category	Industrial Automation Parts
Dimensions and mounting	130 × 76 × 60 mm (W × H × D); mounts on 35 mm or 15 mm DIN rail.
net weight	0.32 kg
Application	SIMATIC TOP connect relay interface for S7-300 / S7-1500 digital input circuits.
System cable interface	1 × 16-pole IDC connection with strain relief; 30 m maximum between front connector and connection module.
Product description	TOP connect TPRi relay connection module with 230 V AC coils, eight normally-open contacts, push-in terminals and status LEDs.
Relay configuration	8 normally-open relay contacts; 230 V AC relay coils for potential matching to 24 V DC digital input signals.
Field terminals	20 push-in terminals: 8 input pairs, 2 L+ terminals and 2 M terminals.
product type designation	Fully modular connection
mechanical data — height / with lowest-profile installation	60 mm
connection method — for flexible conductor / with core end processing	0.2 ... 2.5 mm²; End sleeve according to DIN 46228/1 or DIN 46228/4 with plastic collar
