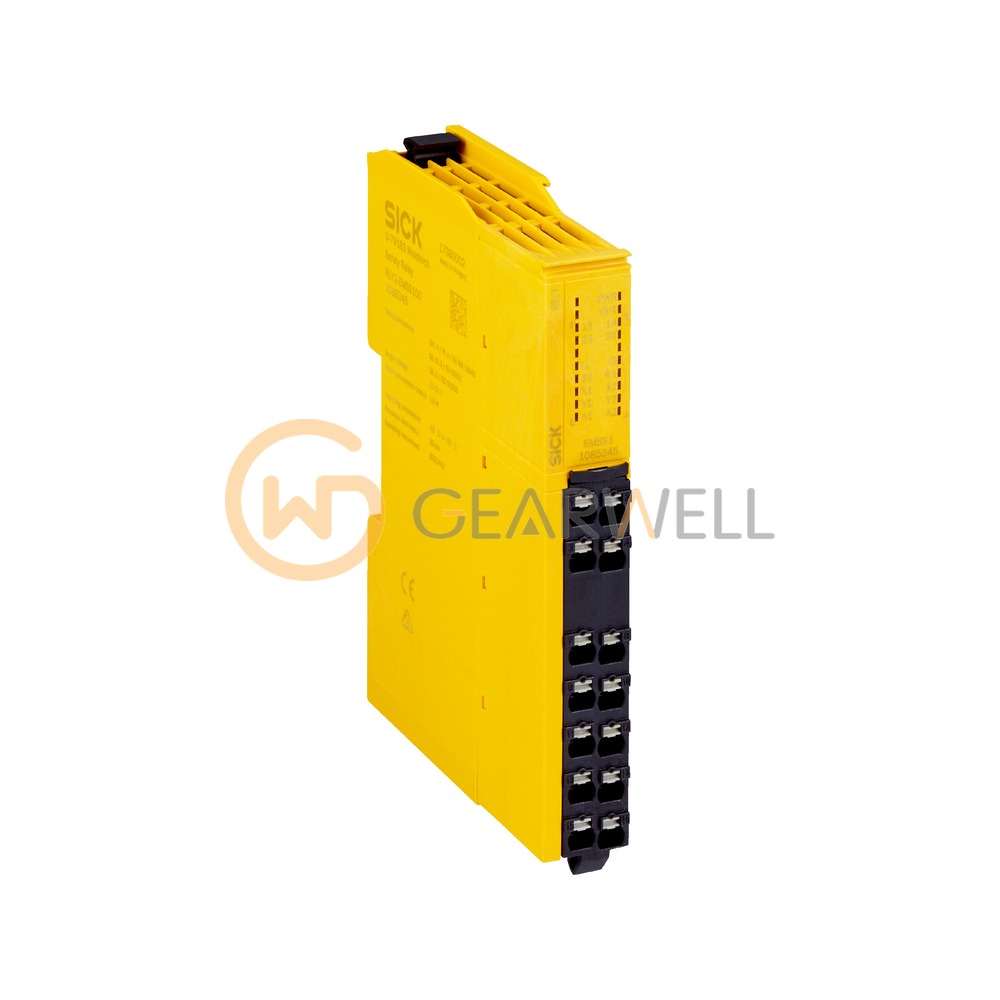

SICK RLY3-EMSS100 ReLy Safety Relay
- Brand
- SICK
- Model
- RLY3-EMSS100
- GEARWELL SKU
- GWP-000009791
- Category
- Machine Safety & Vision
Key specifications
- Outputs
- 2 enabling current paths (safe), 2 application diagnostic outputs (not safe), 3 test pulse outputs (not safe)
- Part number
- 1085345
- Applications
- Evaluation unit
- Sensor types
- Safety sensors with potential-free outputs
- Housing width
- 18 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK RLY3-EMSS100 ReLy Safety Relay |
|---|---|
| Brand | SICK |
| Model | RLY3-EMSS100 |
| Category | Machine Safety & Vision |
| Outputs | 2 enabling current paths (safe), 2 application diagnostic outputs (not safe), 3 test pulse outputs (not safe) |
| Part number | 1085345 |
| Applications | Evaluation unit |
| Sensor types | Safety sensors with potential-free outputs |
| Housing width | 18 mm |
| Connection type | Front connector with spring terminals |
| Restart interlock | yes |
| External device monitoring (EDM) | Integrated |
