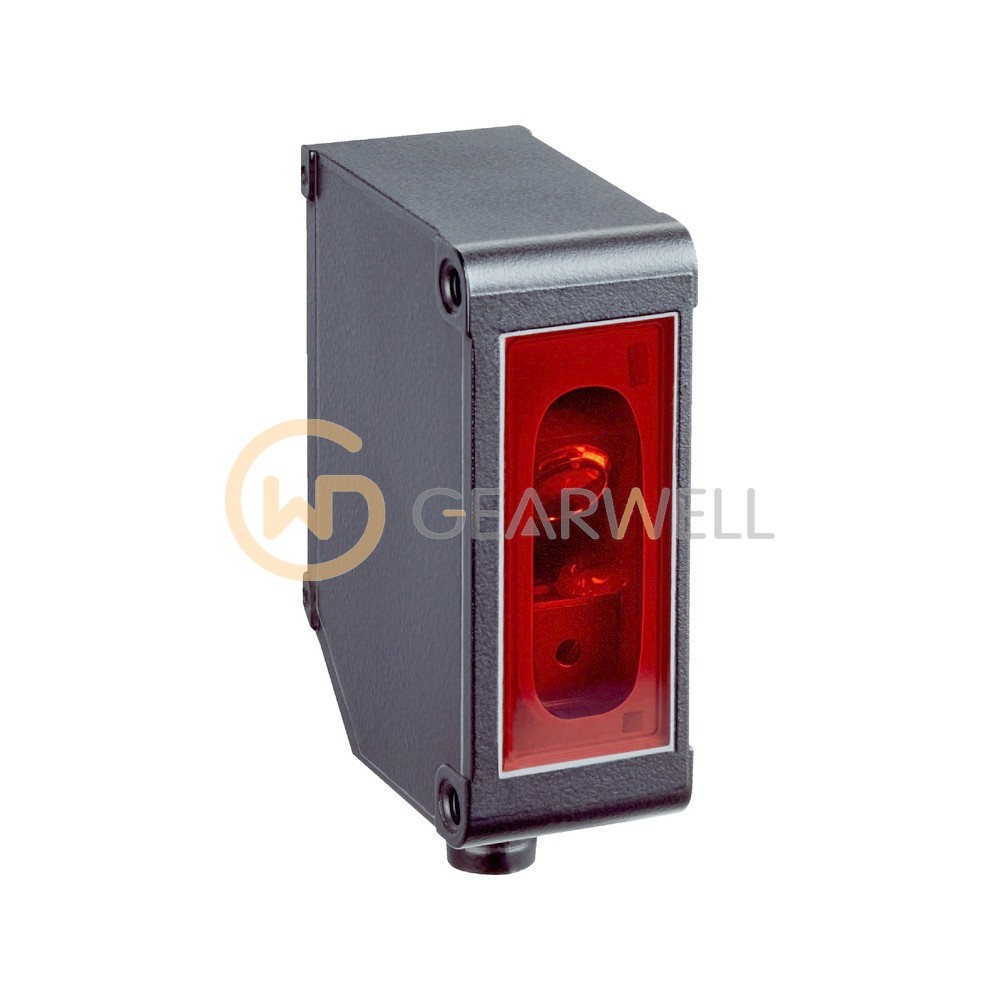

SICK OD1-B035C15Q14 OD Mini Laser Distance Sensor
- Brand
- SICK
- Model
- OD1-B035C15Q14
- GEARWELL SKU
- GWP-000009790
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Laser class
- 1
- Part number
- 6052308
- Repeatability
- 20 µm
- Digital output
- 1 x PNP/NPN, selectable
- Connection type
- Male connector, M8, 4-pin
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK OD1-B035C15Q14 OD Mini Laser Distance Sensor |
|---|---|
| Brand | SICK |
| Model | OD1-B035C15Q14 |
| Category | Proximity & Photoelectric Sensors |
| Laser class | 1 |
| Part number | 6052308 |
| Repeatability | 20 µm |
| Digital output | 1 x PNP/NPN, selectable |
| Connection type | Male connector, M8, 4-pin |
| Measuring range | 20 mm ... 50 mm |
| Housing material | Metal |
| Typ. light spot size (distance) | 1.6 mm x 1 mm (35 mm) |
