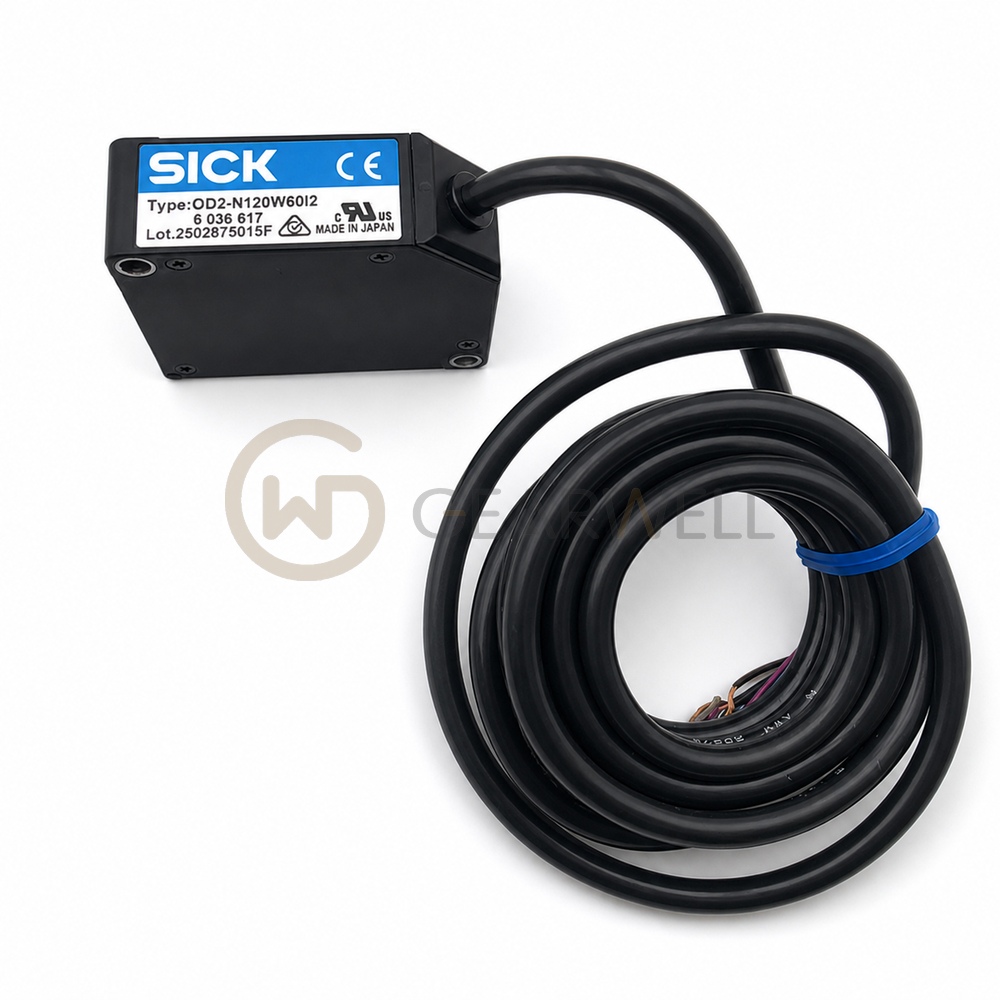

SICK OD2-N120W60I2 Displacement Sensors
- Brand
- SICK
- Model
- OD2-N120W60I2
- GEARWELL SKU
- GWP-000000329
- Category
- Industrial Automation Parts
Key specifications
- Linearity
- ±120 µm
- Laser class
- Class 2
- Output time
- ≥0.5 ms
- Light source
- Visible red laser
- Repeatability
- 30 µm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK OD2-N120W60I2 Displacement Sensors |
|---|---|
| Brand | SICK |
| Model | OD2-N120W60I2 |
| Category | Industrial Automation Parts |
| Linearity | ±120 µm |
| Laser class | Class 2 |
| Output time | ≥0.5 ms |
| Light source | Visible red laser |
| Repeatability | 30 µm |
| Response time | ≥1 ms |
| Light spot size | 1 × 1.5 mm at 120 mm |
| Measuring range | 60–180 mm |
