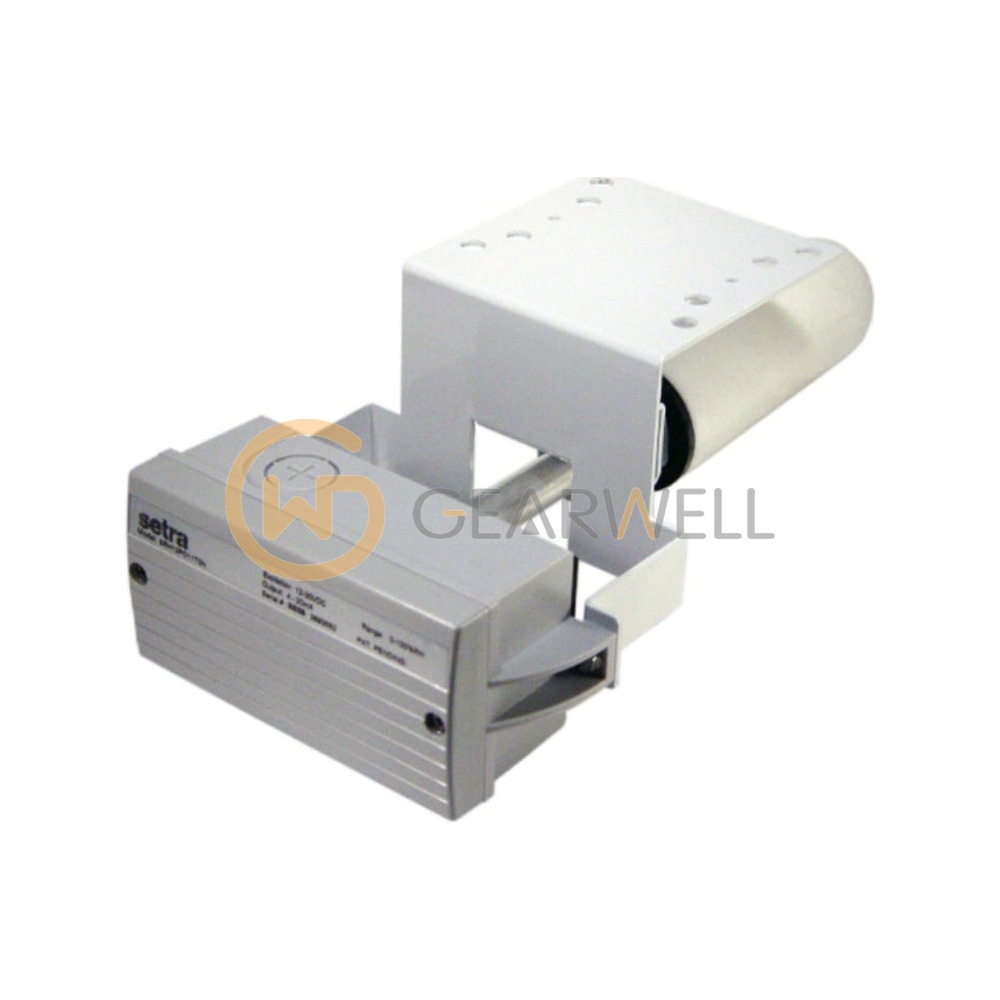

Setra SRH15PO11T2N SRH Outside Air Humidity Transmitter
- Brand
- Setra
- Model
- SRH15PO11T2N
- GEARWELL SKU
- GWP-000016909
- Category
- Pressure, Flow & Temperature
Key specifications
- Display (N)
- None
- Output (11)
- 4 to 20 mA (2-wire)
- Model code
- SRH1 (Model SRH)
- Accuracy (5P)
- ±5 % RH
- Configuration (O)
- Outside Air
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Setra SRH15PO11T2N SRH Outside Air Humidity Transmitter |
|---|---|
| Brand | Setra |
| Model | SRH15PO11T2N |
| Category | Pressure, Flow & Temperature |
| Display (N) | None |
| Output (11) | 4 to 20 mA (2-wire) |
| Model code | SRH1 (Model SRH) |
| Accuracy (5P) | ±5 % RH |
| Configuration (O) | Outside Air |
| Sensing element | Capacitive polymer |
| Operating temperature | -40 to 60 °C |
| Temperature output (T2) | 1000 Ω RTD (passive) |
| Humidity operating range | 0 to 99 (non-condensing) % RH |
