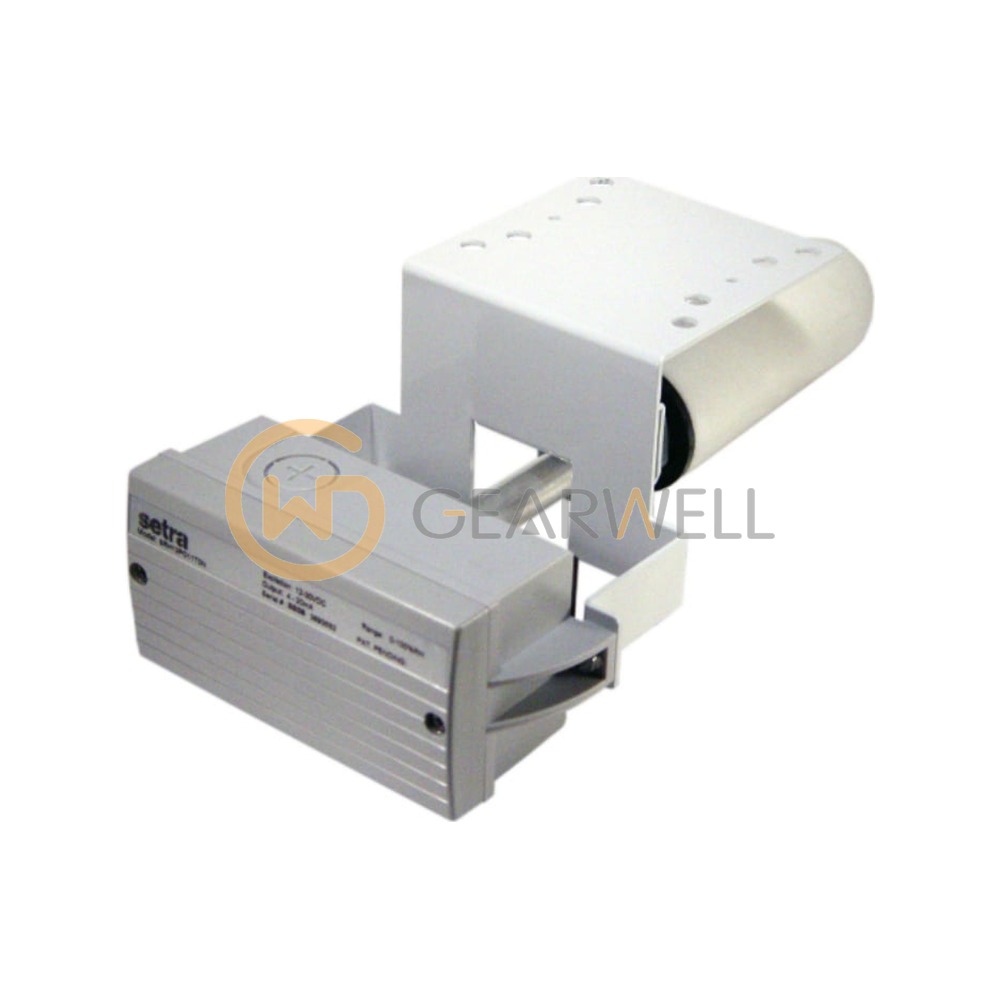

Setra SRH13PO2CT5N SRH Outside Air Humidity Transmitter
- Brand
- Setra
- Model
- SRH13PO2CT5N
- GEARWELL SKU
- GWP-000016908
- Category
- Pressure, Flow & Temperature
Key specifications
- Display (N)
- None
- Output (2C)
- 0 to 5 or 0 to 10 VDC, user selectable (3-wire)
- Model code
- SRH1 (Model SRH)
- Accuracy (3P)
- ±3 % RH
- Configuration (O)
- Outside Air
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Setra SRH13PO2CT5N SRH Outside Air Humidity Transmitter |
|---|---|
| Brand | Setra |
| Model | SRH13PO2CT5N |
| Category | Pressure, Flow & Temperature |
| Display (N) | None |
| Output (2C) | 0 to 5 or 0 to 10 VDC, user selectable (3-wire) |
| Model code | SRH1 (Model SRH) |
| Accuracy (3P) | ±3 % RH |
| Configuration (O) | Outside Air |
| Sensing element | Capacitive polymer |
| Operating temperature | -40 to 60 °C |
| Temperature output (T5) | 14 to 140 °F (-10 to 60 °C) active |
| Humidity operating range | 0 to 99 (non-condensing) % RH |
