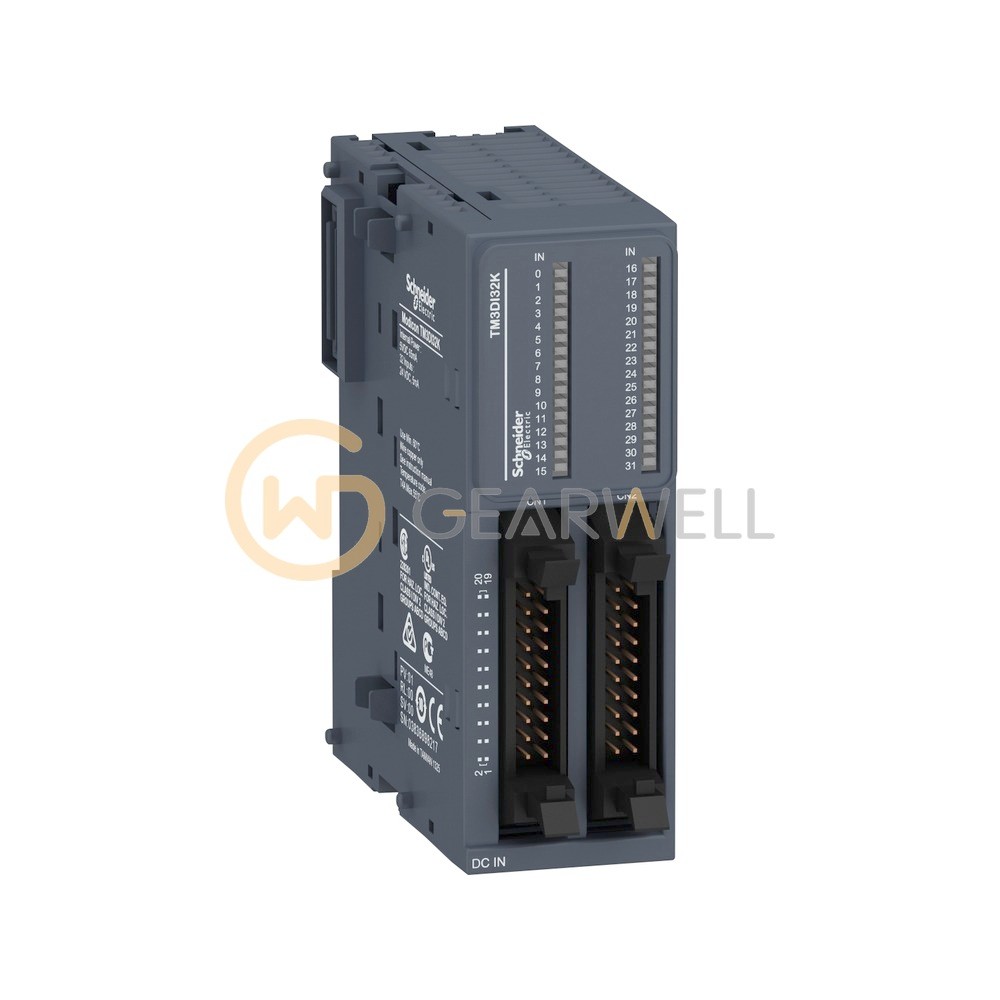

Schneider Electric TM3DI32K Modicon TM3 Discrete Input Module
- Brand
- Schneider Electric
- Model
- TM3DI32K
- GEARWELL SKU
- GWP-000007419
- Category
- PLCs & I/O
Key specifications
- Device application
- Industrial application
- Discrete input logic
- Sink or source (positive/negative)
- Discrete input number
- 32
- Discrete input current
- 5 MA
- Discrete input voltage
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric TM3DI32K is a Modicon TM3 digital input module: 32 inputs, 24 V DC sink/source, HE10 connector. TM3 expansion modules connect to Modicon M221, M241, M251 and M262 controllers over the TM3 bus. The HE10 version is compatible with the Modicon ABE7 Telefast pre-wired system.
Technical reference
| Product name | Schneider Electric TM3DI32K Modicon TM3 Discrete Input Module |
|---|---|
| Brand | Schneider Electric |
| Model | TM3DI32K |
| Category | PLCs & I/O |
| Device application | Industrial application |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input number | 32 |
| Discrete input current | 5 MA |
| Discrete input voltage | 24 V DC |
| Voltage state 0 guaranteed | 0...5 V DC |
| Voltage state 1 guaranteed | 15...28.8 V DC |
